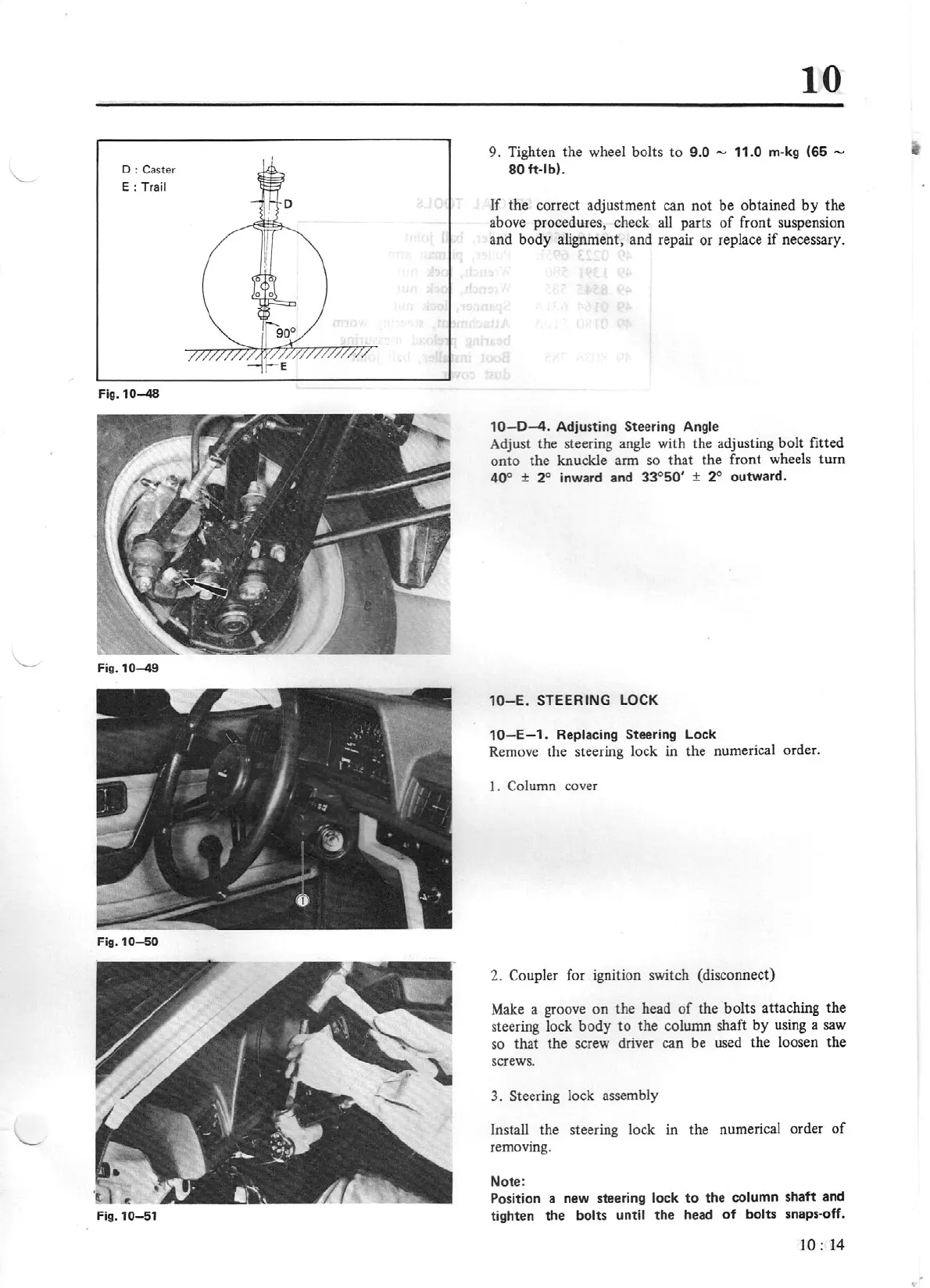

D : Caster
E:
Trail
Flg.
10-48
Fig.
10-49
Fig.10-50
Fig.10-51
10
9. Tighten the wheel bolts
to
9.0 - 11.0 m-
kg
(65 -
80ft·lb)
.
If
the
correct adjustment can not be obtained
by
the
above procedures, check all parts
of
front suspension
and body alignment, and repair or replace if necessary.
10
-
0-4.
Adjusting Steering Angle
Adjust the steering angle with the adjusting bolt fitted
onto
the knuckle arm so that the front wheels turn
40°
± 2° inward and 33°50' ± 2° outward.
10-E.
STEERING
LOCK
10-E-1.
Replacing Steering Lock
Remove the steering lock in the numerical order.
1. Column cover
2.
Coupler for ignition switch (disconnect)
Make
a groove on the head
of
the bolts attaching the
steering lock
body
to
the column shaft by
using
a
saw
so that
the
screw driver can be
used
the loosen the
screws.
3. Steering lock assembly
Install the steering lock in the numerical order
of
removing.
Note:
Position a new steering lock
to
the column shaft and
tighten the bolts until the head
of
bolts snaps-off.
