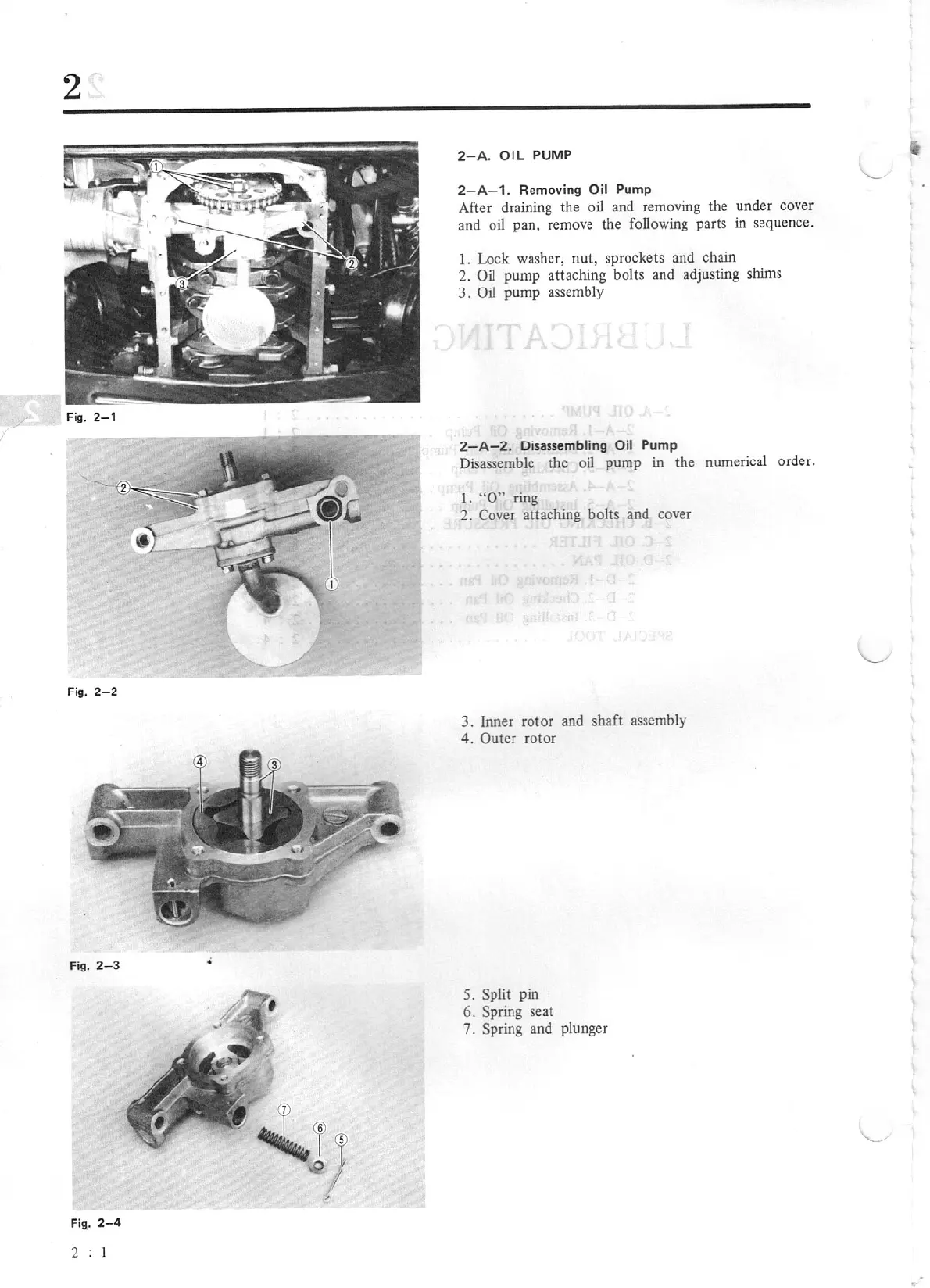

OIL
PUMP
2-A
- 1. Removing
Oil Pump
After draining the oil and removing the under cover
and oil pan, remove the following parts
in
sequence.
1. Lock washer,
nut,
sprockets and chain
2. Oil pump attaching bolts and adjusting shims
3.
Oil
pump assembly
2-A-2
. Disassembling
Oil
Pump
Di
sassemble
the
oil pump
in
the numerical order.
1.
"O"
ring
2. Cover attaching bolts and cover
3.
Inner
rotor
and shaft assembly
4.
Outer
rotor
5.
Split pin
6. Spring seat
7.
Spring and plunger
