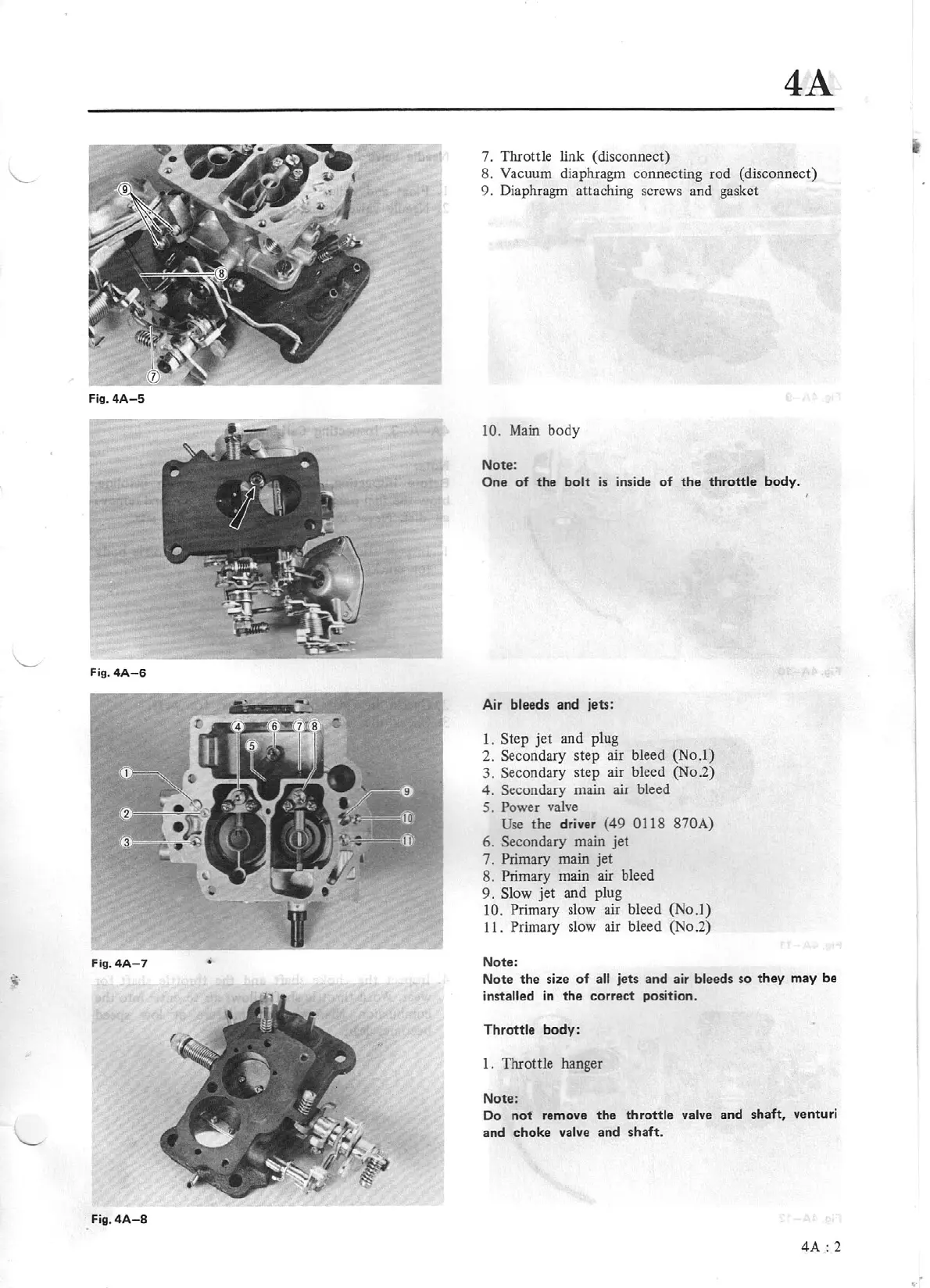

7. Throttle link (disconnect)
8. Vacuum diaphragm connecting rod (disconnect)
9. Diaphragm attaching screws and gasket
10.
Main
body
Note:
One
of
the
bolt
is in
si
de
of
the
throttle
body.
Air bleeds and jets:
1.
Step
jet
and plug
2. Secondary step air bleed
(No.I)
3.
Secondary step air bleed (No.2)
4.
Secondary main air bleed
5.
Power
valve
Use
the driver
(49
0118 870A)
6. Secondary main
jet
7. Primary
main
jet
8. Primary main
air
bleed
9.
Slow
jet
and plug
10
.
Primary slow
air
bleed
(No.I)
11.
Primary
slow air bleed (No.2)
Note:
Note
the
size
of
all jets and air bleeds
so
they
may be
installed
in
the
correct position.
Throttle
body:
1. Throttle hanger
Note:
Do
not
remove
the
throttle
valve and shaft, venturi
and choke
valve
and shaft.
