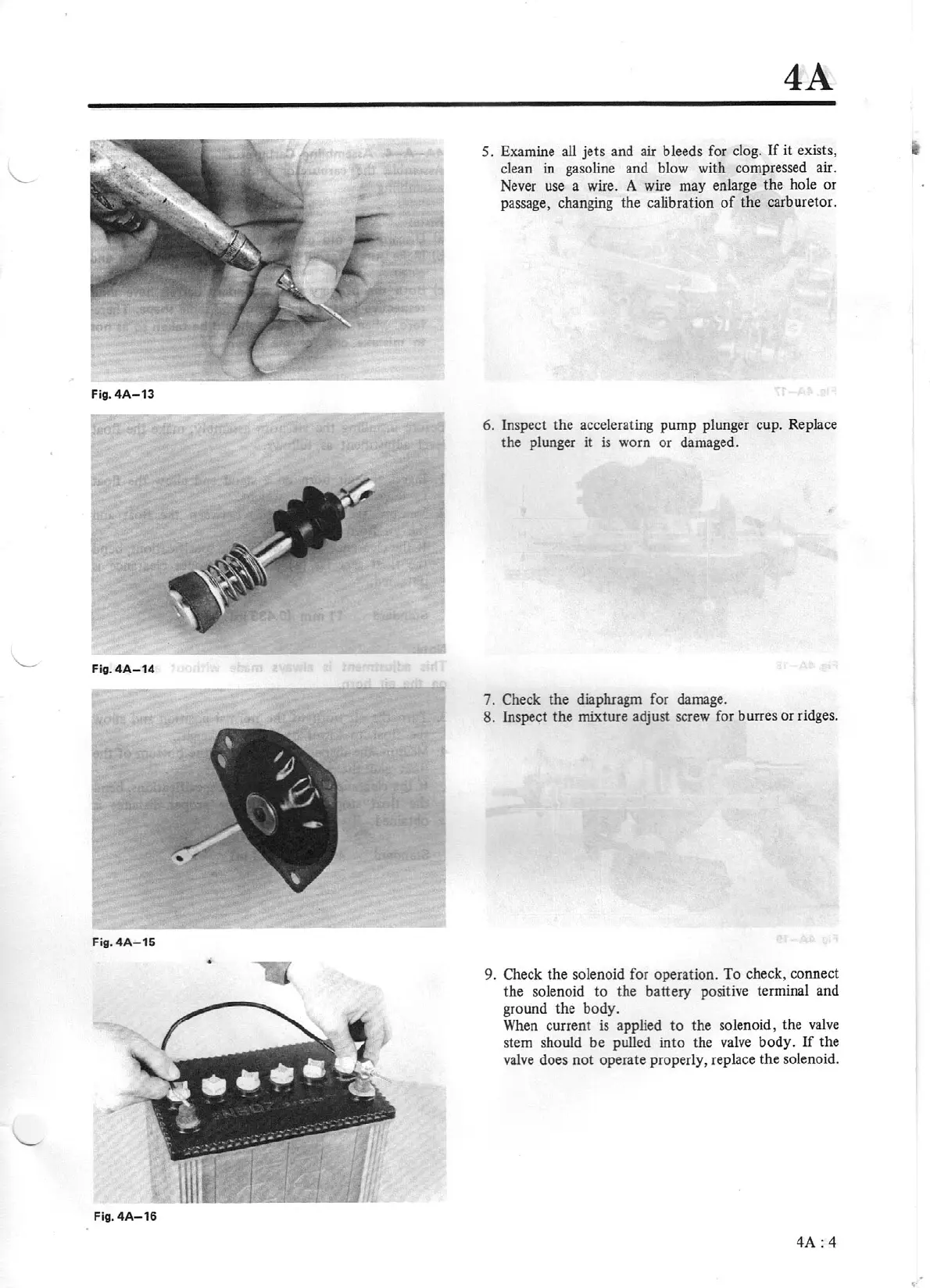

Fig.
4A-13
Fig.
4A-14
Fig.
4A-15
•
Fig.
4A-16
4A
5.
Examine
all
jets and air bleeds for clog.
If
it
exists,
clean
in
gasoline and blow with compressed air.
Never
use
a wire. A wire may enlarge the hole or
passage, changing the calibration
of
the carburetor.
6. Inspect the accelerating pump plunger cup. Replace
the plunger it
is
worn or damaged.
7. Check the diaphragm for damage.
8. Inspect the mixture adjust screw for burres or ridges.
9. Check
the
solenoid for operation. To check, connect
the solenoid
to
the battery positive terminal and
ground the body.
When current
is
applied
to
the solenoid, the
valve
stem should be pulled into the valve body.
If
the
valve
does
not
operate properly, replace the solenoid.
4A
:4
