Basic operation procedure (JOG operation)
BASIC OPERATION
119
4

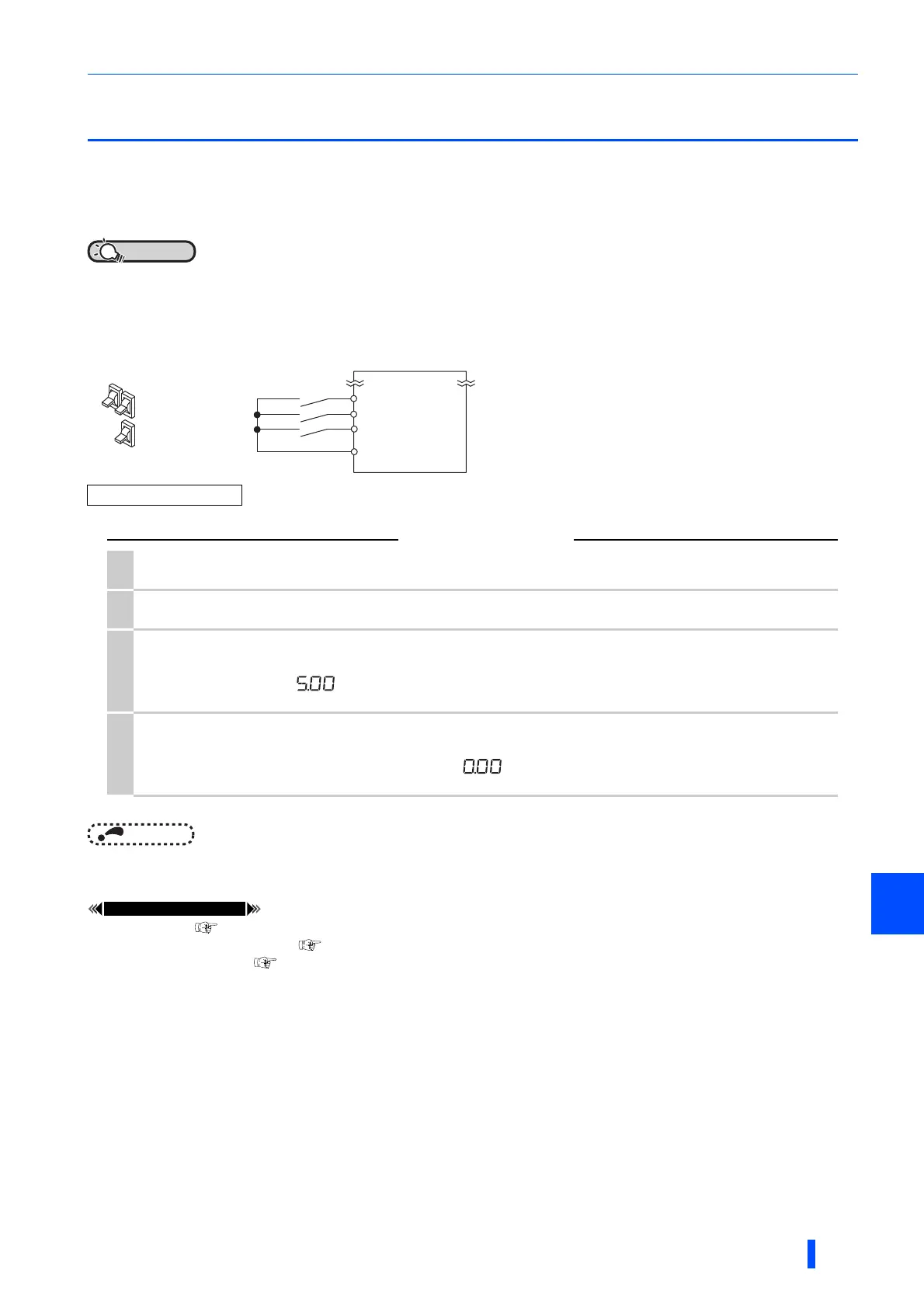

4.7 Basic operation procedure (JOG operation)
4.7.1 Performing JOG operation using external
signals
POINTPOINT
• Perform JOG operation only while the JOG signal is ON.
•Use Pr.15 Jog frequency and Pr.16 Jog acceleration/deceleration time for the operation.
•Set Pr.79 Operation mode selection = "2" (External operation mode).
[Connection diagram]
NOTE
• To change the running frequency, change Pr.15 Jog frequency (initial value "5 Hz").
• To change the acceleration/deceleration time, change Pr.16 Jog acceleration/deceleration time (initial value "0.5 s").
Pr.15 Jog frequency page 327
Pr.16 Jog acceleration/deceleration time page 327
Pr.79 Operation mode selection page 306
Operation example Operate at 5 Hz.
Operation
1.
Screen at power-ON
The monitor display appears.
2.
Turning ON the JOG signal
Turn ON the JOG switch (JOG). The inverter is set ready for the JOG operation.
3.
Start acceleration constant speed
Turn ON the start switch (STF or STR). The frequency value on the indication increases in Pr.16 Jog acceleration/
deceleration time, and " " (5.00 Hz) appears. [FWD] indicator is on during the forward rotation, and [REV] indicator
is on during the reverse rotation.
4.
Deceleration stop
Turn OFF the start switch (STF or STR). The frequency value on the indication decreases in Pr.16 Jog acceleration/
deceleration time, and the motor stops rotating with " " (0.00 Hz) displayed. [FWD] or [REV] indicator turns OFF.
Turn OFF the JOG switch (JOG).
STF
Forward rotation start
SD
JOG
Inverter
JOG signal
Reverse rotation start
STR
Switch
