Mitsubishi FR-A800

Copying and verifying parameters on the operation panel
PARAMETERS
633
5

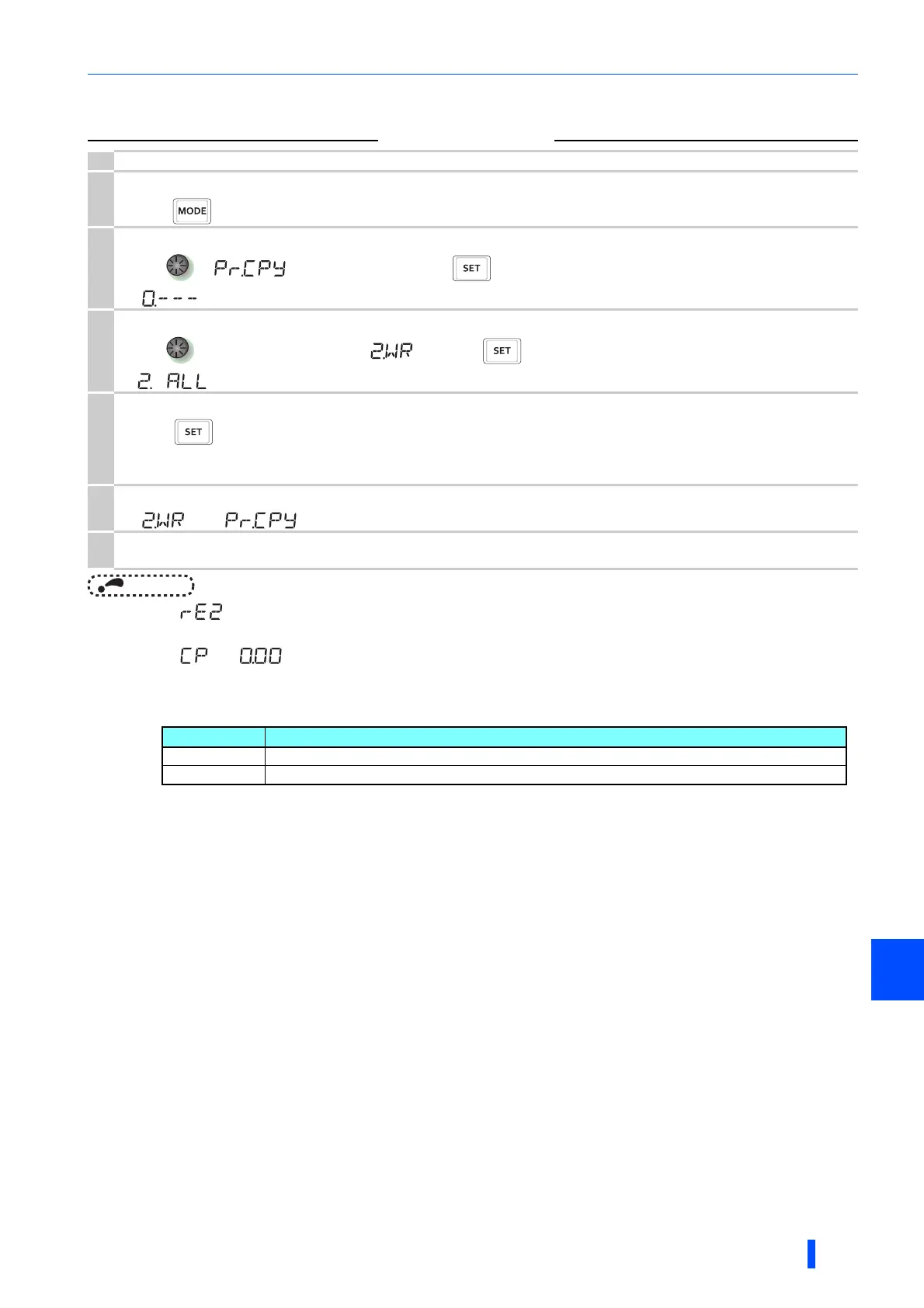

Copying parameter settings read to the operation panel to the inverter
NOTE
• appears... Why?
- Parameter write error. Perform the operation from step 3 again.
• and are displayed alternately.
- Appears when parameter copy is performed between inverters FR-A820-03160(55K) or lower or inverters FR-A820-
03160(55K) or lower and inverters FR-A820-03800(75K) or higher or FR-A840-02160(75K) or higher.
- When CP and 0.00 flicker alternately, set the Pr.989 Parameter copy alarm release as shown below (initial value).
- After setting Pr.989, perform setting of Pr.9, Pr.30, Pr.51, Pr.56, Pr.57, Pr.61, Pr.70, Pr.72, Pr.80, Pr.82, Pr.90 to Pr.94,
Pr.453, Pr.455, Pr.458 to Pr.462, Pr.557, Pr.859, Pr.860, and Pr.893 again.
Operation
1.
Connect the operation panel to the destination inverter.
2.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
3.
Selecting the parameter number
Turn to (parameter copy), and press .
" " appears.
4.
Selecting parameter copy
Turn to change the setting value to " " and press .
appears.
5.
Copying to the inverter
Press to start copying to the inverter. (It takes about 60 seconds to copy all the settings. During copying, the selected
parameter group flickers.)
Perform this step while the inverter is stopped. (Parameter settings cannot be copied during operation.)
6.
Ending copying
" " and " " flicker alternately after copying ends.
7.
When parameters are written to the destination inverter, reset the inverter before operation by, for example, turning the power
supply OFF.
Pr.989 setting Operation
10 Cancels the alarm of FR-A820-03160(55K) or lower and FR-A840-01800(55K) or lower.
100 Cancels the alarm of FR-A820-03800(75K) or higher and FR-A840-02160(75K) or higher.
