(D) Operation command and frequency command

308

PARAMETERS

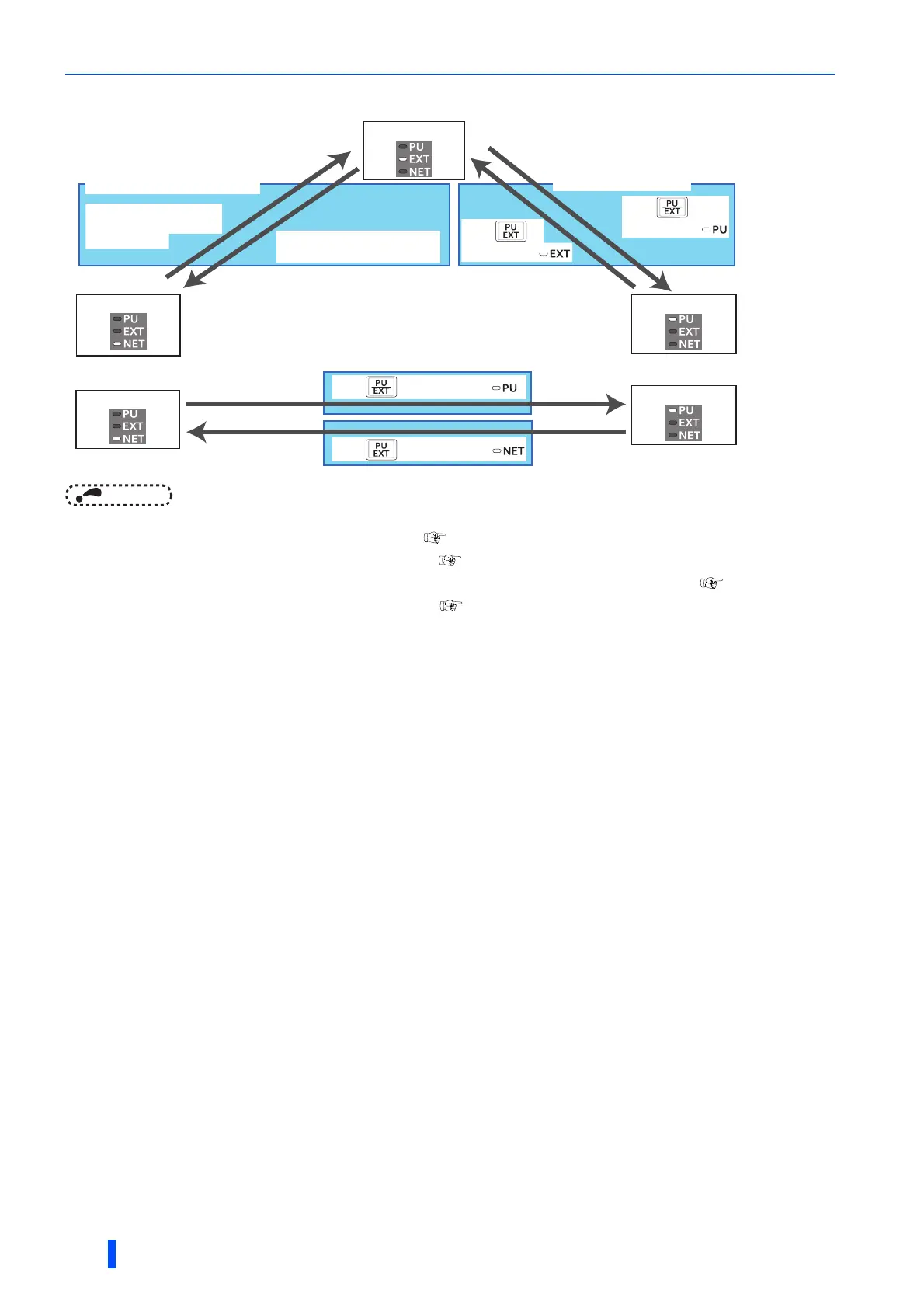

Operation mode switching method

NOTE

• For details on switching by external terminals, refer to the following pages.

- PU operation external interlock signal (X12) page 312

- PU-External operation switchover signal (X16) page 313

- External-NET operation switchover signal (X65), NET-PU operation switchover signal (X66) page 313

- Pr.340 Communication startup mode selection page 315

External operation

Network operation

PU operation

When "0, 1, or 2" is set in Pr. 340

When "10 or 12" is set in Pr. 340

Press on

the PU to light

Press on the PU to light

Switching through the network

Switch to External

operation mode through

the network.

Switch to the Network operation

mode through the network.

Switching with the PU

Press on

the PU to light

Press on the PU to light
