Mitsubishi FR-A800

BCN-C22005-696
• The following can be monitored with the PLC function special register.
NOTE
• For the details of the monitor selection, refer to page 359 of the Instruction Manual (Detailed).
• For the details of the PLC function special register, refer to page 22 of the PLC Function Programming Manual.
Cumulative pulse division scaling factor (Pr.636, Pr.637)
• Set the division scaling factor on the cumulative pulse in Pr.636 or Pr.637.
• Cumulative pulse count value calculation method
Cumulative pulse count value = Cumulative pulse division scaling factor  (Cumulative pulse carrying-over times 
32768 + Cumulative pulse monitor value)
Cumulative pulse count value: Number of pulses multiplied by 4
Cumulative pulse division scaling factor: Pr.636 or Pr.637
Cumulative pulse monitor value clear (Pr.635)
• The cumulative pulse monitor and the cumulative pulse carrying-over times can be cleared by X52 signal or X53
signal.
• To input the X52 or X53 signal, set "52 (X52)" or "53 (X53)" in any of Pr.178 to Pr.184 (input terminal function
selection) to assign the function to a terminal.
• Use Pr.635 Cumulative pulse clear signal selection to select the clearance method for the cumulative pulse
monitor and the cumulative pulse carrying-over times.
Cumulative pulse storage
• The cumulative pulse monitor value can be retained when the power is turned OFF or the inverter is reset.
NOTE
• When the power is turned OFF during the reset process, the cumulative pulse monitor value and the cumulative
pulse carrying-over times are not stored in the EEPROM.
Device
number
Name Description
SD1193 Cumulative pulse
The cumulative number of pulses is displayed (monitor range: -32767 to
32767) (for FR-A8AP).
SD1194
Cumulative pulse carrying-over
times
The number of the cumulative pulse carrying-over times is displayed
(monitor range: -32767 to 32767) (for FR-A8AP).
SD1195
Cumulative pulse (control terminal
option)
The cumulative number of pulses is displayed (monitor range: -32767 to
32767) (for FR-A8TP).
SD1196
Cumulative pulse carrying-over
times (control terminal option)
The number of the cumulative pulse carrying-over times is displayed
(monitor range: -32767 to 32767) (for FR-A8TP).
Pr.635
setting
X52 signal
Cumulative pulse monitor clear
X53 signal
Cumulative pulse monitor clear (control terminal option)
0
Cleared at the edge when the signal is switched to ON. Cleared at the edge when the signal is switched to ON.
1 Cleared while the signal is ON. Cleared at the edge when the signal is switched to ON.
2 Cleared at the edge when the signal is switched to ON. Cleared while the signal is ON.
3 Cleared while the signal is ON. Cleared while the signal is ON.
Pr.638
setting
Cumulative pulse monitor Cumulative pulse monitor (control terminal option)
At power-OFF At reset At power-OFF At reset
0 Not stored in the EEPROM Cleared Not stored in the EEPROM Cleared
1 Stored in the EEPROM Retained Not stored in the EEPROM Cleared
2 Not stored in the EEPROM Cleared Stored in the EEPROM Retained
3 Stored in the EEPROM Retained Stored in the EEPROM Retained

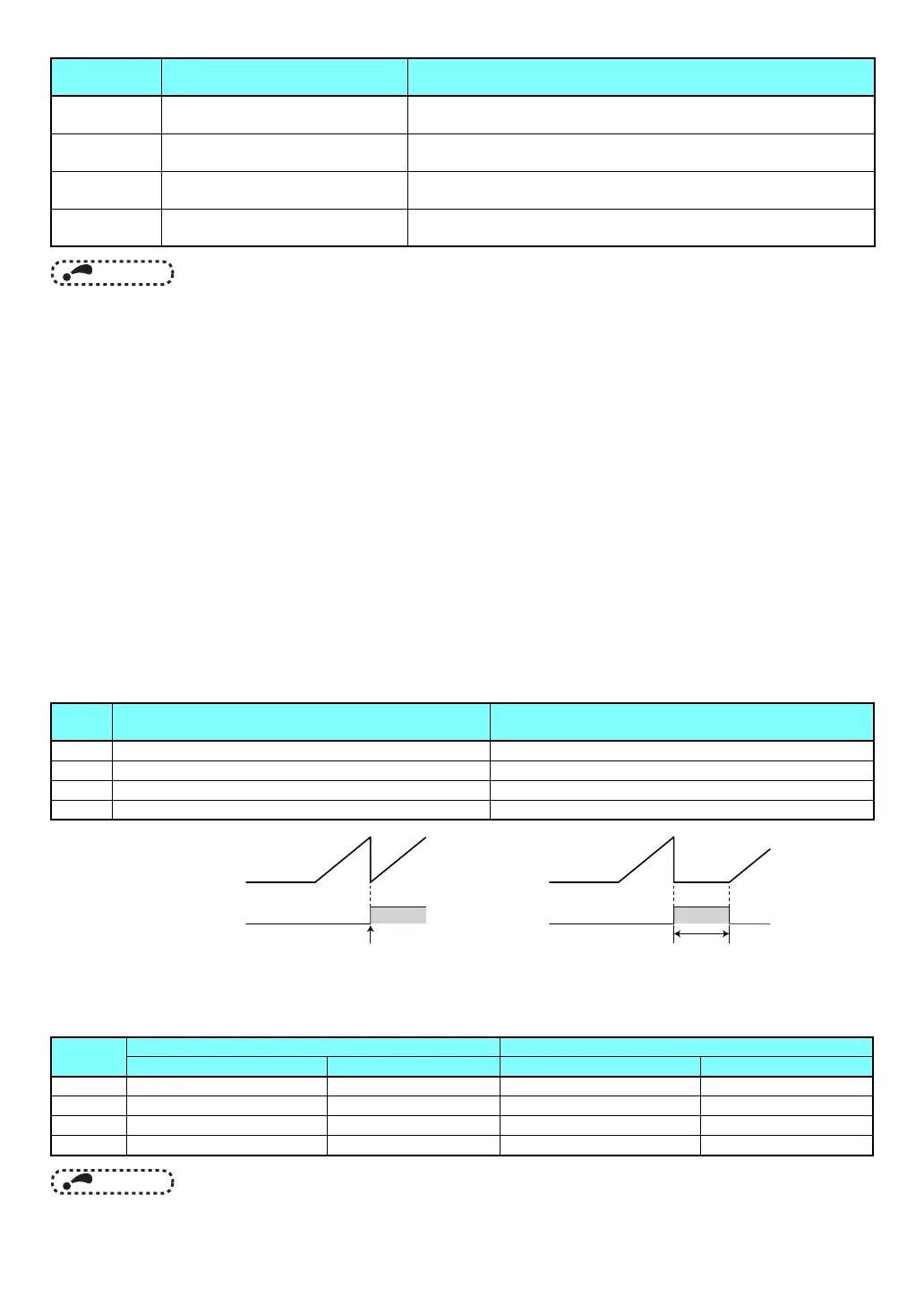

Clear signal
(X52, X53)
$$Cleared at the ON edge $$Cleared while the signal is ON
Cumulative pulse
Cumulative pulse
carrying-over times
Clear signal
(X52, X53)
Cumulative pulse
Cumulative pulse
carrying-over times
ON
ON
