(A) Application parameters

500

PARAMETERS

Pr.351 Orientation speed (initial value: 2 Hz) (Vector control)

• Set the speed when switching between the speed control mode and the position control mode is performed under

orientation operation.

Decreasing the set speed enables stable orientation stop. Note that the orientation time will increase.

NOTE

• When "19" is set in Pr.52 Operation panel main monitor selection, the position pulse monitor is displayed instead of the

output voltage monitor on the PU.

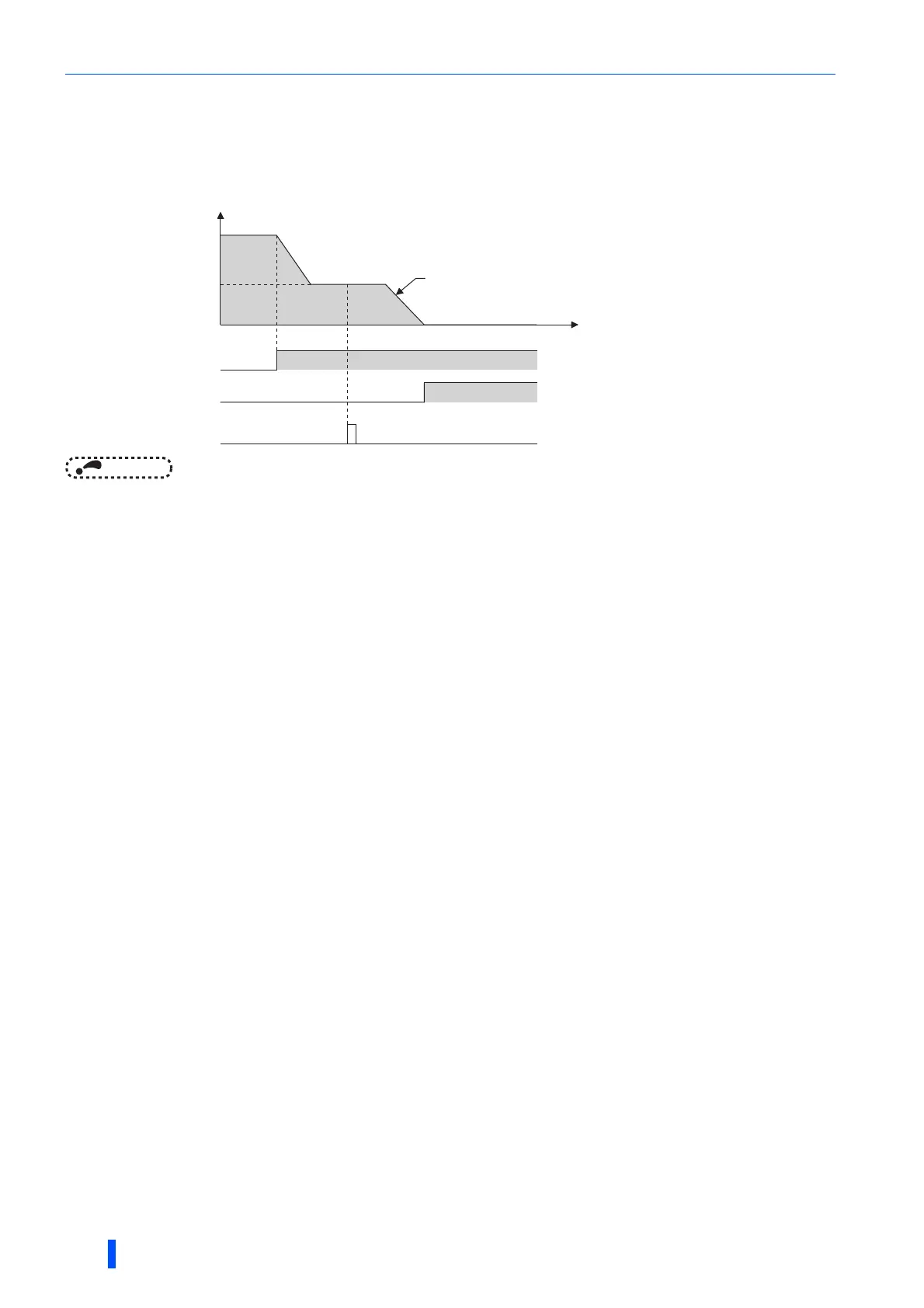

Frequency

[Hz]

OFF

Orientation start

(X22)

Orientation complete

(ORA)

Encoder Z phase pulse

Pr.351 Orientation speed

Orientation command completion

Decelerate according to the deceleration ratio of Pr.399

Time[t]
