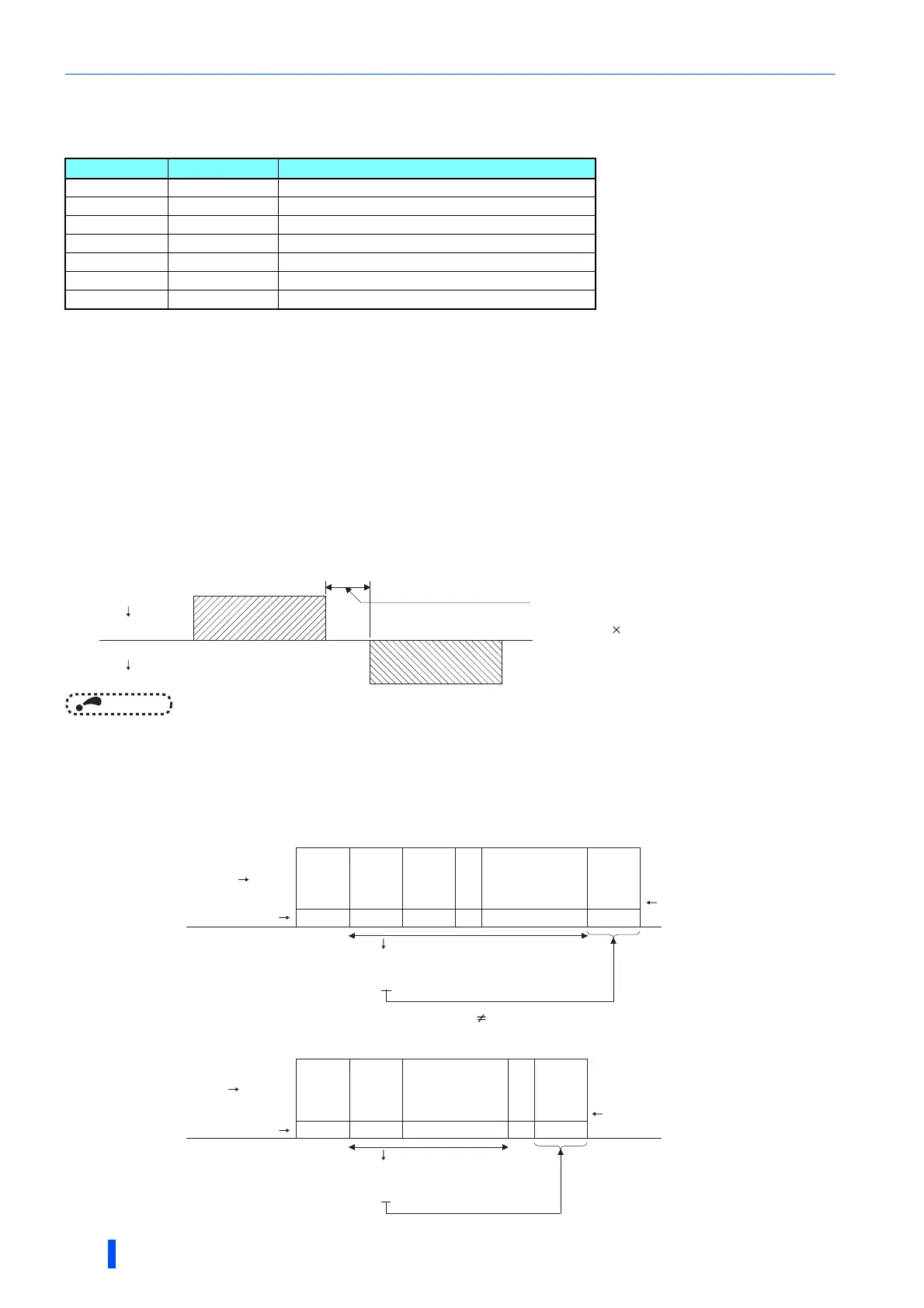

(N) Operation via communication and its settings
568
PARAMETERS
Data definitions
Control code
Inverter station number
Specify the station number of the inverter which communicates with the computer.
Instruction code
Specify the processing request, for example, operation or monitoring, given by the computer to the inverter. Hence, the
inverter can be run and monitored in various ways by specifying the instruction code appropriately. (Refer to page 574.)
•Data
Indicates the data such as frequency and parameters transferred to and from the inverter. The definitions and ranges of set
data are determined in accordance with the instruction codes. (Refer to page 574.)
Waiting time
Specify the waiting time between the receipt of data at the inverter from the computer and the transmission of reply data.
Set the waiting time in accordance with the response time of the computer in the range of 0 to 150 ms in 10 ms increments.
(For example; 1=10 ms, 2= 20 ms)
NOTE
When Pr.123 or Pr.337 (Waiting time setting) "9999", create a communication request data without "waiting time" in the
data format. (The number of characters decreases by 1.)
The data check time varies depending on the instruction code. (Refer to page 569.)
Sum check code
The sum check code is a 2-digit ASCII (hexadecimal) representing the lower 1 byte (8 bits) of the sum (binary) derived from
the checked ASCII data.
Signal name ASCII Code Description
STX H02 Start Of Text (Start of data)
ETX H03 End Of Text (End of data)
ENQ H05 Enquiry (Communication request)
ACK H06 Acknowledge (No data error detected)
LF H0A Line Feed
CR H0D Carriage Return
NAK H15 Negative Acknowledge (Data error detected)
Computer
Inverter
Inverter
Computer
Inverter data processing time
=
+
Waiting time
(setting 10ms)
data check time
(About 10 to 30ms,
which depends on the
instruction code)
(Example 1)
Computer Inverter
ENQ
*Waiting
time
1
Instruction
code
Station
number
0
1
Data
E1 0 7 ADF4
H05 H30 H31 H31H45 H31 H30 H37 H41 H44 H46 H34
Binary code
H30+H31+H45+H31+H31+H30+H37+H41+H44
= H1F4
Sum
(Example 2)
STX
Data read
Station
number
0
117 0 30
H02 H30 H31 H37H31 H37 H30 H03 H33 H30
Sum
ETX
7
* When the Pr.123 or Pr.337 (Waiting time setting) "9999", create the communication request
data without "waiting time" in the data format.
(The number of characters decreases by 1.)
Inverter
ASCII Code
ASCII Code
Binary code
H30+H31+H31+H37+H37+H30
= H130
Sum
check
code
Sum
check
code
Computer
