5.2.4 Selecting the PM sensorless vector control
Selecting the PM sensorless vector control by performing parameter
initialization on the operation panel ( )
POINTPOINT
• The parameters required to drive an MM-CF IPM motor are automatically changed as a batch. (Refer to page 174.)
• [PM] on the operation panel (FR-DU08) is on when the PM sensorless vector control is set.
NOTE
• If parameters are initialized for a PM motor in the IPM initialization mode, the Pr.998 PM parameter initialization setting is
automatically changed.
• In the initial parameter setting, the capacity same as the inverter capacity is set in Pr.80 Motor capacity. To use a motor
capacity that is one rank lower than the inverter capacity, set Pr.80 Motor capacity by selecting the mode on the operation
panel.
• To set a speed or to display monitored items in frequency, Pr.998. (Refer to page 173.)

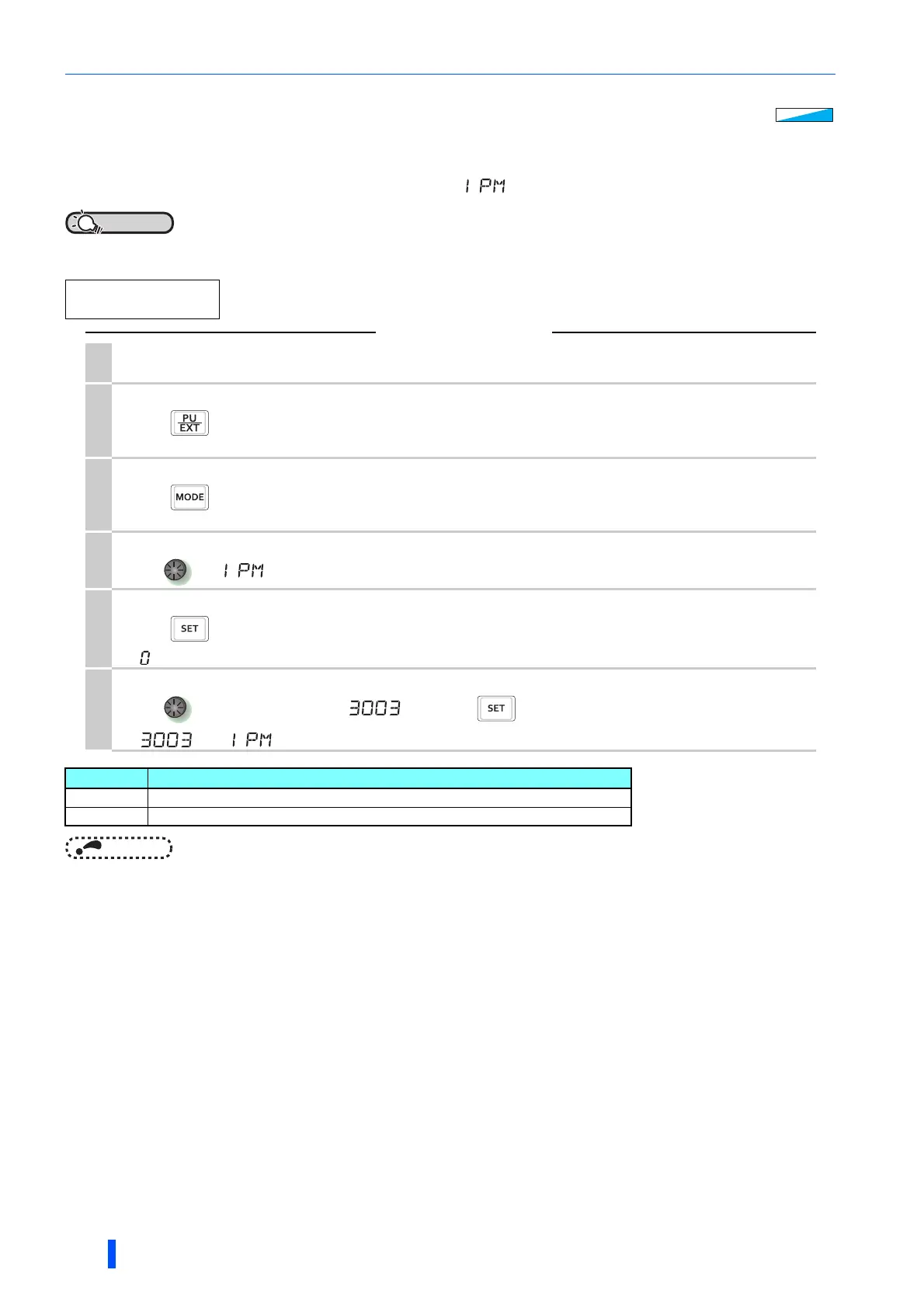

Operation example
Initialize the parameter settings for an MM-CF IPM motor by selecting IPM parameter
initialization on the operation panel.
Operation
1.
Screen at power-ON
The monitor display appears.
2.
Changing the operation mode
Press to choose the PU operation mode.
[PU] indicator is on.
3.
Parameter setting mode
Press to choose the parameter setting mode.
[PRM] indicator is on.
4.
IPM parameter initialization
Turn until (IPM parameter initialization) appears.
5.
Setting value display
Press to read the present set value.
" " (initial value) appears.
6.
Changing the setting value
Turn to change the set value to " ", then press .
" " and " " flicker alternately. The setting is completed.
Setting Description
0 Parameter settings for an induction motor
3003 Parameter settings for an IPM motor MM-CF (rotations per minute)
PM
PM
PM
