Mitsubishi FR-A800

Parameter List
Group parameter display
148
PARAMETERS

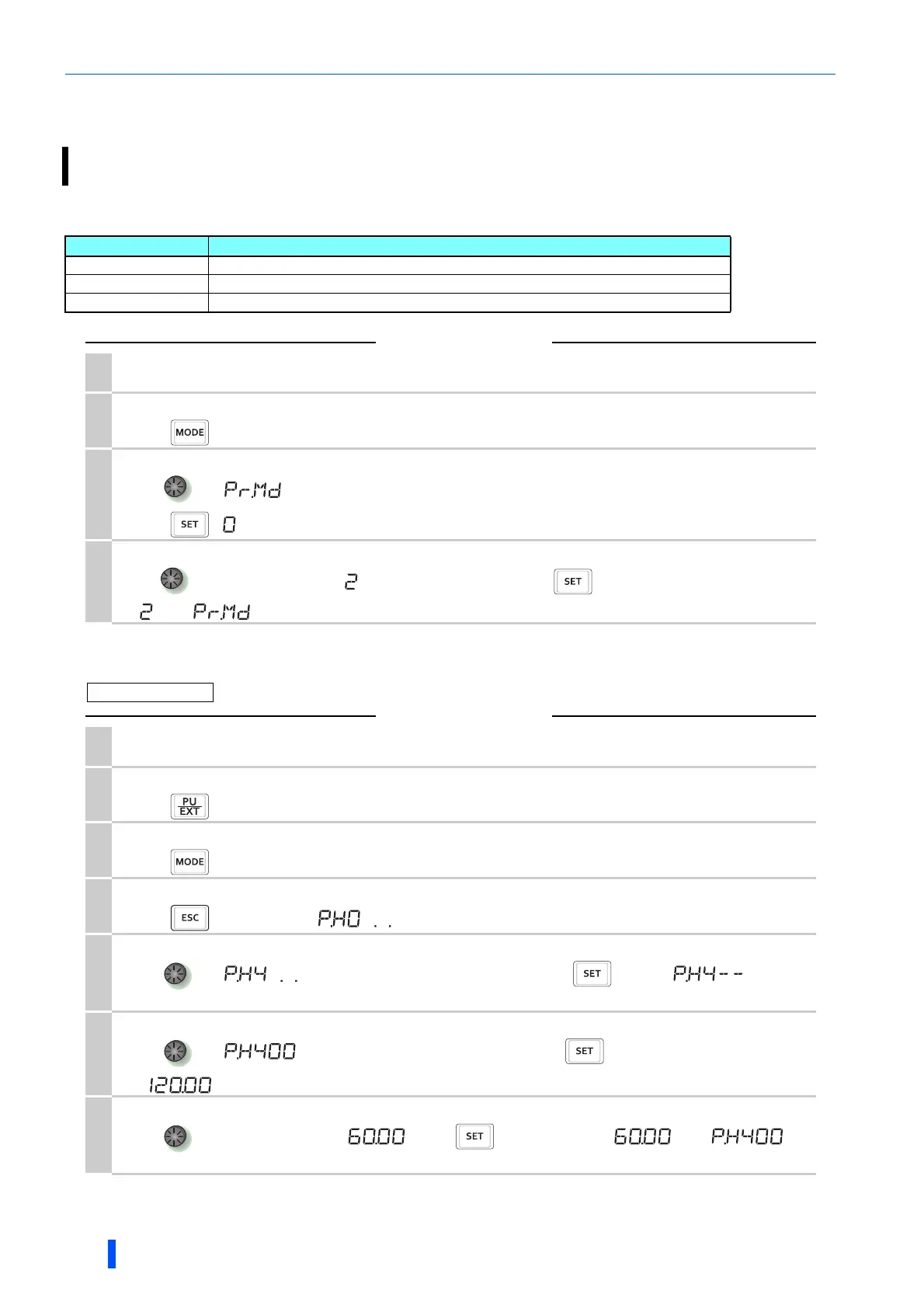

5.1.2 Group parameter display
Changing to the grouped parameter numbers
Changing parameter settings in the group parameter display
Parameter numbers can be changed to grouped parameter numbers.
Parameters are grouped by their functions. The related parameters can be set easily.
Pr.MD setting value Description
0 Default parameter display method
1 Parameter display by parameter number
2 Parameter display by function group
Operation
1.
Screen at power-ON
The monitor display appears.
2.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
3.
Selecting the parameter number
Turn until (parameter display method) appears.
Press . " " (initial value) will appear.
4.
Changing to the group parameter display
Turn to change the set value to " " (group parameter display). Press to select the group parameter setting.
" " and " " flicker alternately after the setting is completed.
Changing example Change the P.H400(Pr.1) Maximum frequency.
Operation
1.
Screen at power-ON
The monitor display appears.
2.
Changing the operation mode
Press to choose the PU operation mode. [PU] indicator is on.
3.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
4.
Parameter group selection
Press several times until appears. Parameter groups can now be selected.
5.
Parameter group selection
Turn until (protective function parameter 4) appears. Press to display and make
the group parameters of the protective function parameter 4 selectable.
6.
Parameter selection
Turn until (P.H400 Maximum frequency) appears. Press to read the present set value.
" " (initial value) appears.
7.
Changing the setting value
Turn to change the set value to " ". Press to enter the setting. " " and " "
flicker alternately after the setting is completed.
