Mitsubishi FR-A800

(G) Control parameters
600
PARAMETERS

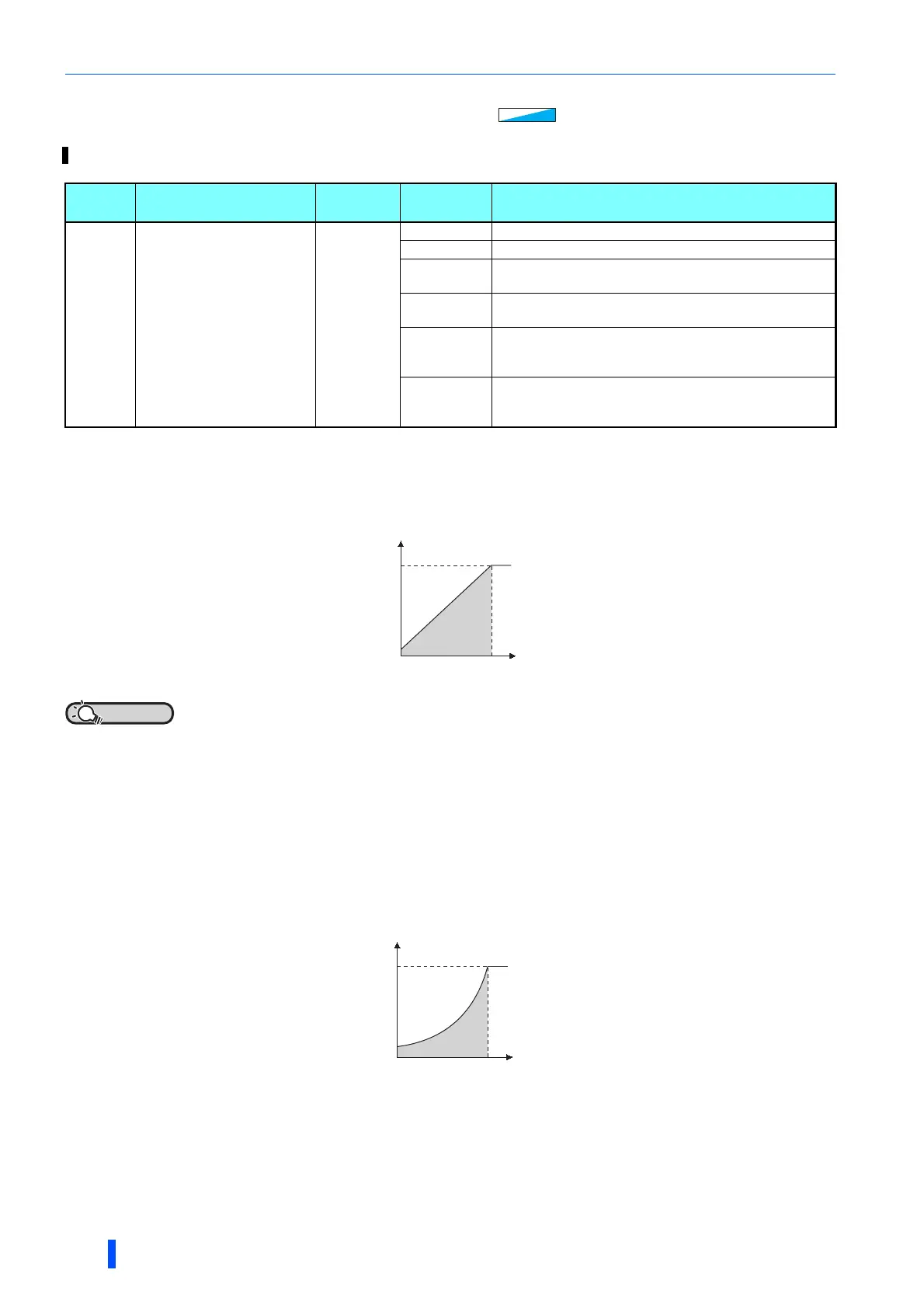

5.16.3 Load pattern selection
Application for constant-torque load (Pr.14 = "0", initial value)
• The output voltage will change linearly against the output frequency at the base frequency or lower.
• Set this parameter when driving a load that has constant load torque even when the rotation speed is changed, such as
conveyor, dolly, or roll drive.
POINTPOINT
• Select for constant-torque load (setting value "0") even for fan and pump in following cases.
- When accelerating a blower with large moment of inertia (J) in a short period of time.
- When it is a constant-torque load such as rotary pump or gear pump.
- When the load torque increases in low speed such as screw pump.
Application for variable-torque load (Pr.14 = "1")
• The output voltage will change in square curve against the output frequency at the base frequency or lower. (1.75th-power
curve for FR-A820-01870(37K) or higher, and FR-A840-00930(37K) or higher)
• Set this parameter when driving a load with load torque change proportionally against the square of the rotation speed,
such as fan and pump.
Optimal output characteristics (V/F characteristics) for application or load characteristics can be selected.
Pr. Name
Initial
value
Setting
range
Description
14
G003
Load pattern selection
0
0 For constant-torque load
1 For variable-torque load
2
For constant-torque lift
(boost at reverse rotation 0%)
3
For constant-torque lift
(boost at forward rotation 0%)
4
RT signal ON... for constant-torque load
RT signal OFF... for constant-torque lift, boost at reverse
rotation 0%
5
RT signal ON... for constant-torque load
RT signal OFF... for constant-torque lift, boost at forward
rotation 0%
V/F
V/F
V/F
100%
Output voltage
Pr. 3 Base frequency
Output frequency (Hz)
100%
Output voltage
Pr. 3 Base frequency
Output frequency (Hz)
