(E) Environment setting parameters
260
PARAMETERS
Disconnected PU detection (P.E101)
• If the PU (FR-DU08/FR-PU07) is detected to be disconnected from the inverter for 1 s or longer while P.E101 ="1" or Pr.75
= "2, 3, 16, 17, 102, 103, 116, or 117", PU disconnection (E.PUE) is displayed and the inverter output is shut off.
NOTE
• When the PU has been disconnected since before power-ON, the output is not shut off.
• To restart, confirm that the PU is connected and then reset.
• When P.E101="0" or Pr.75 ="0, 1, 14, 15, 100, 101, 114, or 115" (operation continues even when PU disconnected),
decelerates to a stop when PU is disconnected during PU JOG operation.
• When RS-485 communication operation is performed through the PU connector, the reset selection/PU stop selection
function is valid but the disconnected PU detection function is invalid. (The communication is checked according to Pr.122
PU communication check time interval.)
PU stop selection (P.E102)
• Stop can be performed by inputting from the PU in any of the operation modes of PU operation, External operation
and network operation.
• When stop is performed by the PU stop function, " " is displayed on the PU. A fault output is not provided.
• When P.E102="0" or Pr.75="0 to 3, 100 to 103" is set, deceleration stop using is valid only in the PU operation
mode.
NOTE
• When Pr.551 PU mode operation command source selection="1" (PU mode RS-485 terminal), deceleration stop is
performed even when is input during operation in PU mode via RS-485 communication.
How to restart after stopping with input from the PU during External
operation (PU stop (PS) release method)
• PU stop release method for operation panel (FR-DU08)
1)After completion of deceleration to a stop, switch OFF the STF and STR signal.
2)
Press three times. ( release)
(When Pr.79 Operation mode selection = "0 (initial value) or 6")
When Pr.79 = "2, 3, or 7",
PU stop can be released by pressing one time.
• PU stop release method for parameter unit (FR-PU07)
1)After completion of deceleration to a stop, switch OFF the STF or STR signal.
2)
Press . ( release)
• The motor can be restarted by resetting the power supply or resetting with a RES signal.
NOTE
• Even when Pr.250 Stop selection "9999" is set and coasting stop is selected, deceleration stop and not coasting stop is
performed in the PU stop function during External operation.
Speed
Time
Key
Key

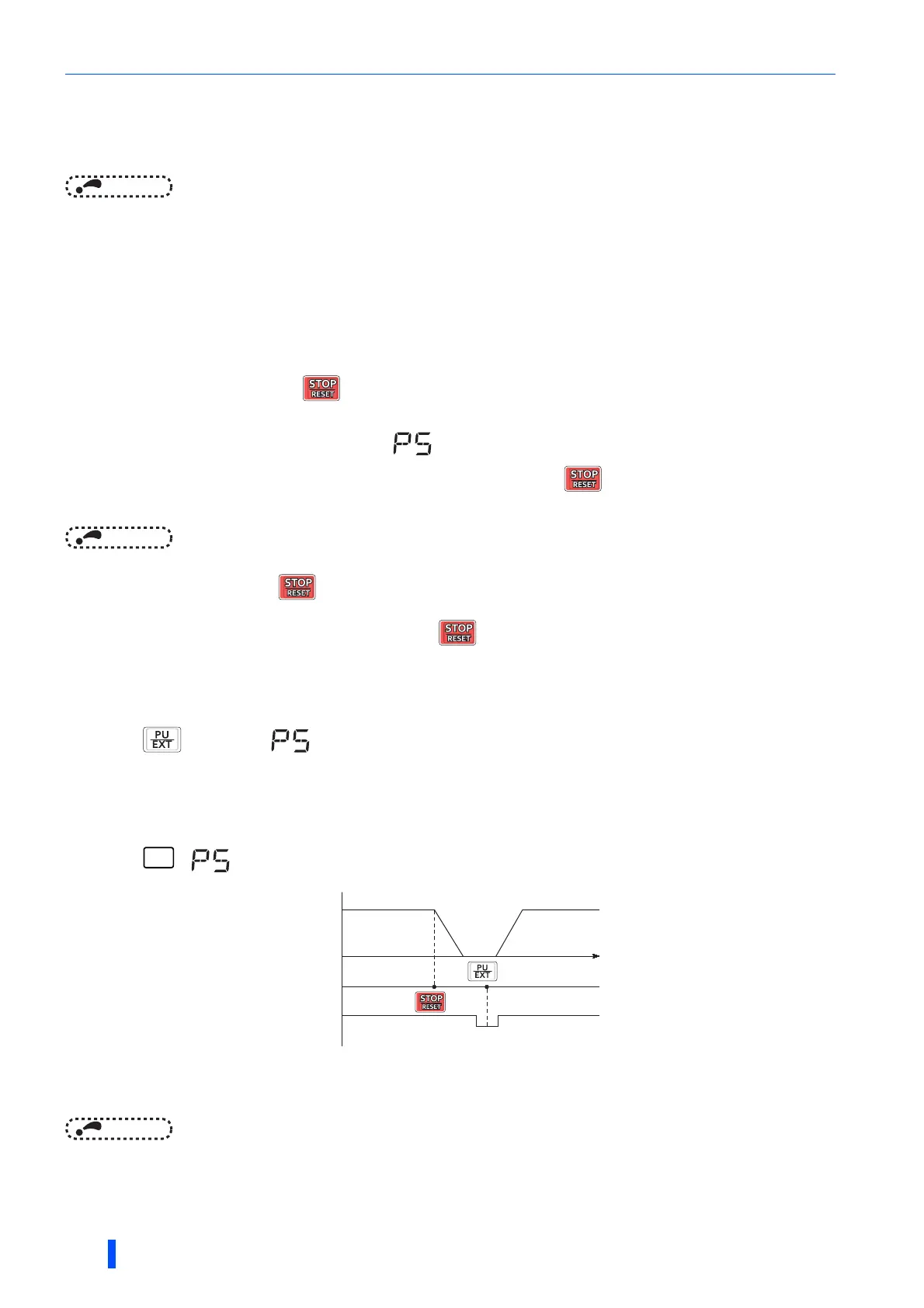

Stop/restart example for External operation
Operation
panel
STF ON
(STR) OFF
