Easy operation mode setting (easy setting mode)
BASIC OPERATION
103
4
4.3 Easy operation mode setting (easy setting
mode)
 To use as a potentiometer, refer to page 263.

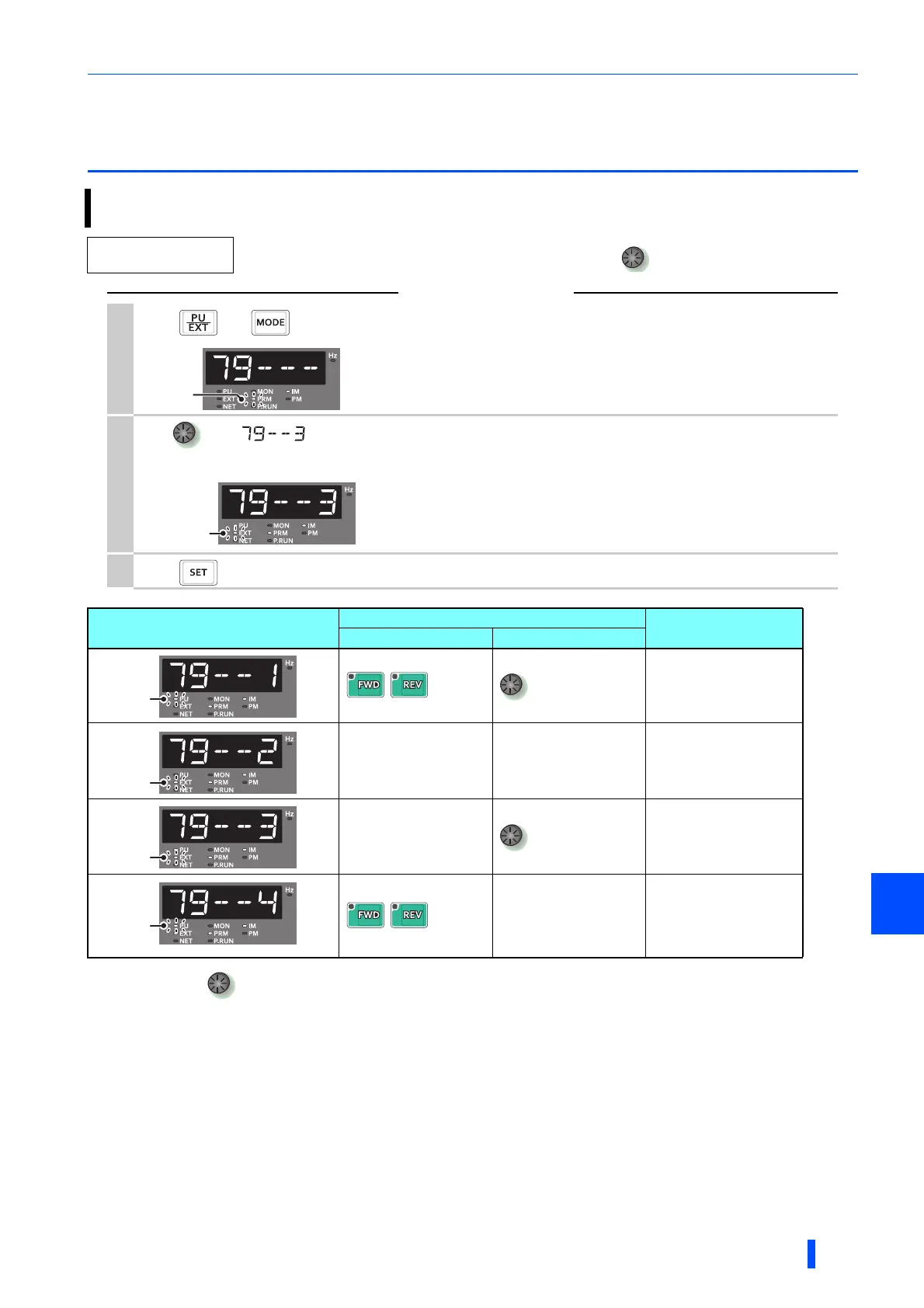

A required combination of a start command and a frequency command can be easily selected using Pr.79 Operation
mode selection.
Changing example
Operate with the external (STF/STR) start command and frequency command.
Operation
1.
Press and for 0.5 s.
2.
Turn until
( External/PU combined operation mode 1) appears . (For other settings, refer to the
table below.)
3.
Press to enter the setting. External/PU combined operation mode 1 (Pr.79="3") is set.
Operation panel indication
Operation method
Operation mode
Start command Frequency command
,

PU operation mode
External
(STF, STR)
Analog
voltage input
External operation mode
External
(STF, STR)

External/PU combined
operation mode 1
,
Analog
voltage input
External/PU combined
operation mode 2
Flickering
Flickering
Flickering
Flickering
Flickering
Flickering
