5.19 Copying and verifying parameters using
USB memory
Changes in USB memory copy operation states
• Insert the USB memory in the inverter. The USB memory mode is displayed and USB memory operations are possible.
NOTE
• When parameter settings are copied to USB memory without specifying a parameter setting file number in USB memory,
numbers are automatically assigned.
• Up to 99 files can be saved on USB memory. When the USB memory device already has 99 files, attempting copying of
another file to the USB memory device causes the file quantity error (rE7).
• Refer to the FR Confirurator 2 instruction manual for details on importing files to FR Configurator 2.
• Inverter parameter settings can be copied to USB memory.
• Parameter setting data copied to USB memory can be copied to other inverters or verified to see if they differ from
the parameter settings of other inverters.
• Parameter settings can also be imported to a personal computer and edited in FR Configurator 2.

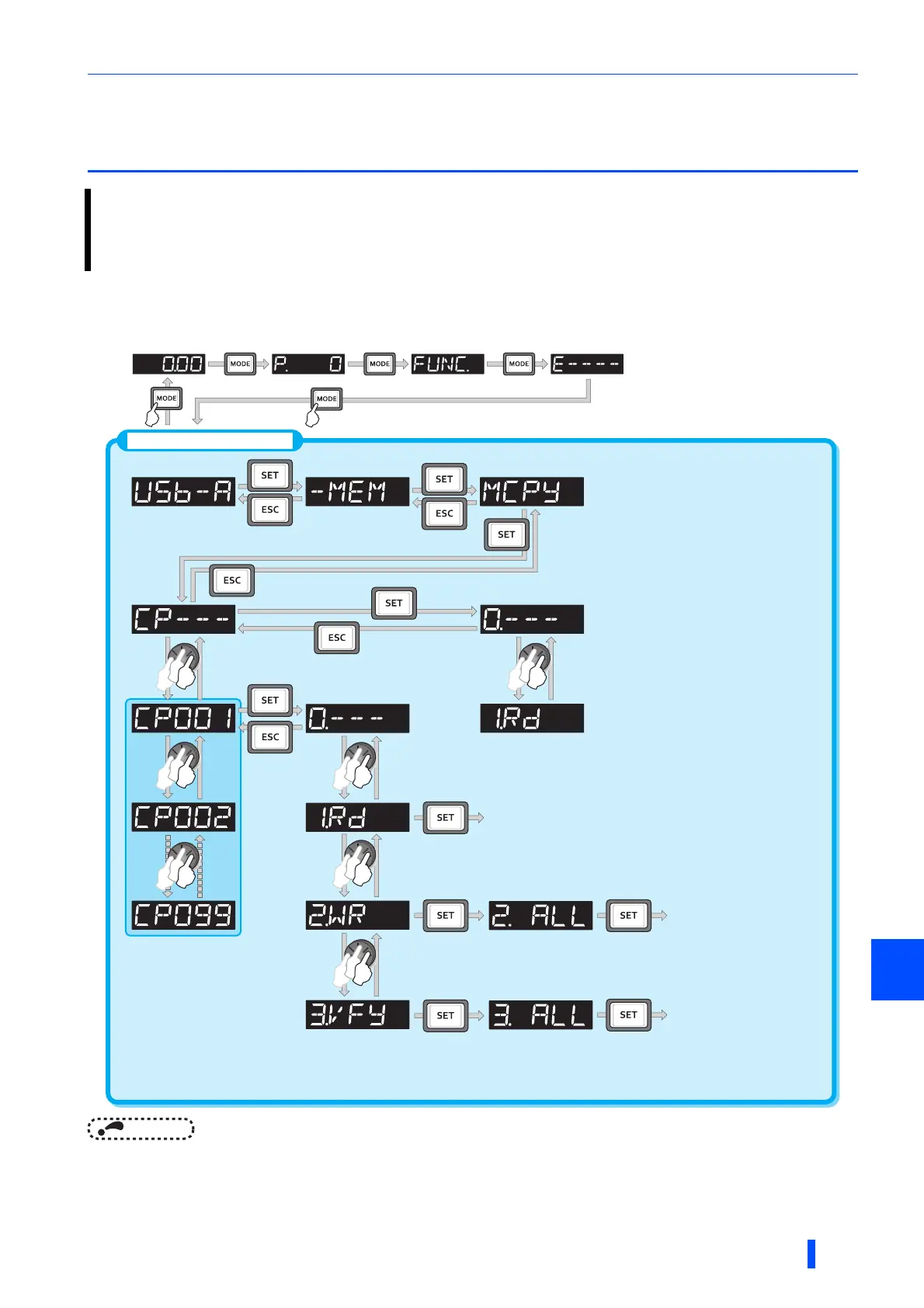

USB memory mode
Overwrite the inverter parameter setting onto the
designated file in the USB memory device.
Parameter setting
file number saved in
the USB memory
device
(up to 99)
Copy the parameter setting
from the inverter to the USB
memory device.
Write the designated
parameter setting file of
the USB memory device
to a parameter file of the
inverter.
Verify the designated
parameter setting file of
the USB memory device
against the parameter file
of the inverter.
