(F) Setting of acceleration/deceleration time and acceleration/deceleration pattern
298
PARAMETERS

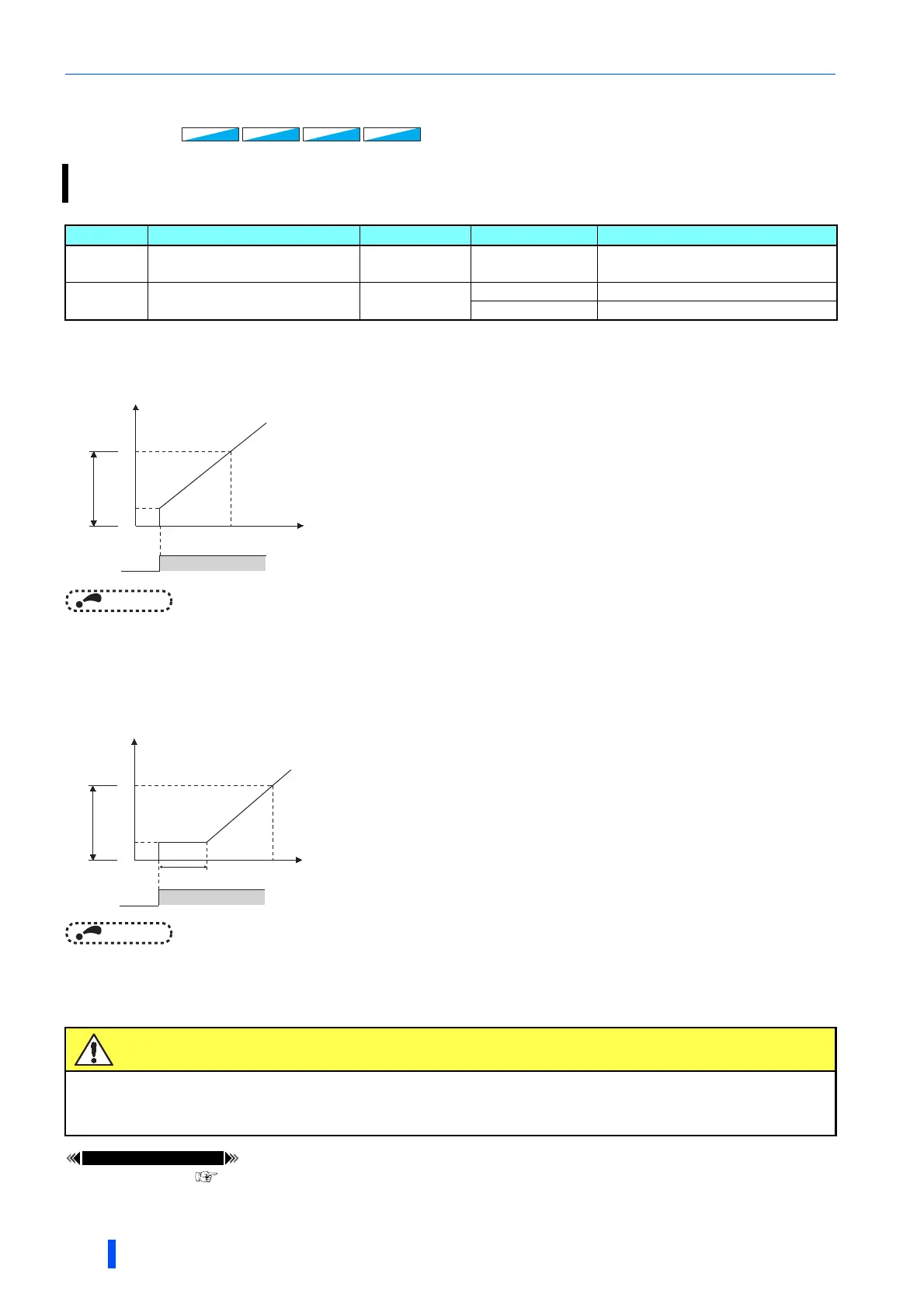

5.8.4 Starting frequency and start-time hold function
Starting frequency setting (Pr.13)
• The frequency at start can be set in the range of 0 to 60 Hz.
• Set the starting frequency at which the start signal is turned ON.
NOTE
• The inverter does not start if the frequency setting signal is less than the value set in Pr.13.
For example, while Pr.13 = 5 Hz, the inverter output starts when the frequency setting signal reaches 5 Hz.
Start-time hold function (Pr.571)
• This function holds during the period set in Pr.571 and the output frequency set in Pr.13 Starting frequency.
• This function performs initial excitation to smooth the motor drive at a start.
NOTE
• When Pr.13 ="0 Hz", the starting frequency is held at 0.01 Hz.
• When the start signal was turned OFF during start-time hold, deceleration is started at that point.
• At switching between forward rotation and reverse rotation, the starting frequency is valid but the start-time hold function is
invalid.
???????
Parameters referred to
Pr.2 Minimum frequency page 345
It is possible to set the starting frequency and hold the set starting frequency for a certain period of time.
Set these functions when a starting torque is needed or the motor drive at start needs smoothing.
Pr. Name Initial value Setting range Description
13
F102
Starting frequency
0.5 Hz 0 to 60 Hz
Set the starting frequency at which the
start signal is turned ON.
571
F103
Holding time at a start
9999
0 to 10 s Set the holding time of Pr.13.
9999 The holding function at a start is invalid.
Caution
 Note that when Pr.13 is set to any value equal to or lower than Pr.2 Minimum frequency, simply
turning ON the start signal will run the motor at the frequency set in Pr.2 even if the command
frequency is not input.
V/F
V/F
V/F
Magnetic flux
Magnetic flux
Magnetic flux
Sensorless
Sensorless
Sensorless
Vector
Vector
Vector
Output
frequency
(Hz)
Time
60
Pr.13
Setting range
STF ON
0
Output
frequency
(Hz)
Time
Pr.13
Pr. 571 setting time
STF ON
0
60
Setting range
