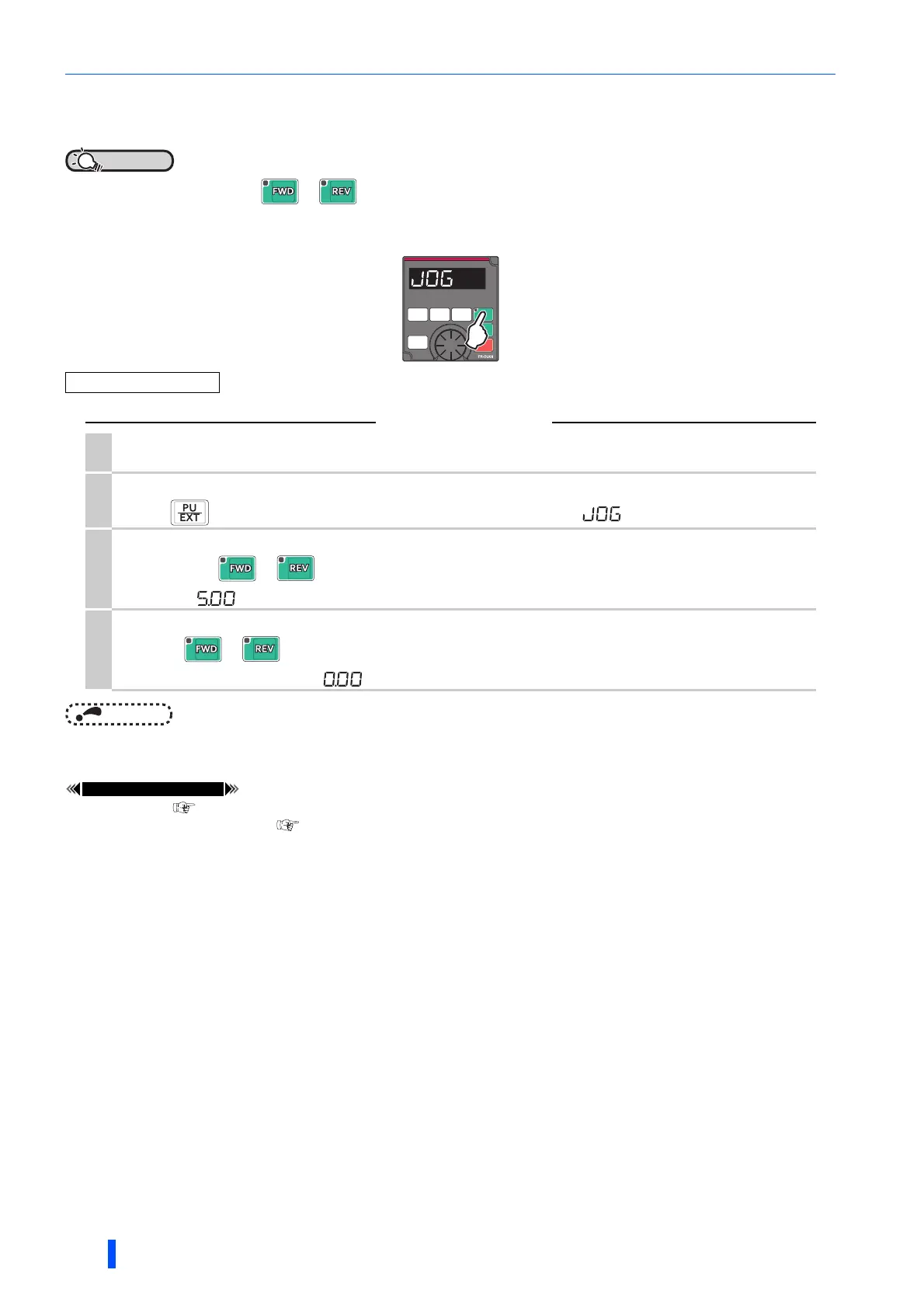

Basic operation procedure (JOG operation)
120
BASIC OPERATION
4.7.2 JOG operation from the operation panel
POINTPOINT
• Operate only while or is pressed.
NOTE
• To change the running frequency, change Pr.15 Jog frequency (initial value "5 Hz").
• To change the acceleration/deceleration time, change Pr.16 Jog acceleration/deceleration time (initial value "0.5 s").
Pr.15 Jog frequency page 327
Pr.16 Jog acceleration/deceleration time page 327
Operation example Operate at 5 Hz.
Operation
1.
Screen at power-ON
The monitor display appears.
2.
Changing the operation mode
Press twice to choose the PUJOG operation mode. The monitor displays , and [PU] indicator is on.
3.
Start acceleration constant speed
Keep pressing or . The frequency value on the indication increases in Pr.16 Jog acceleration/deceleration
time, and " " (5.00 Hz) appears.
4.
Deceleration stop
Release or . The frequency value on the indication decreases in Pr.16 Jog acceleration/deceleration time,
and the motor stops rotating with " " (0.00 Hz) displayed.
Operation panel
(FR-DU08)
