Copying and verifying parameters on the operation panel
634
PARAMETERS

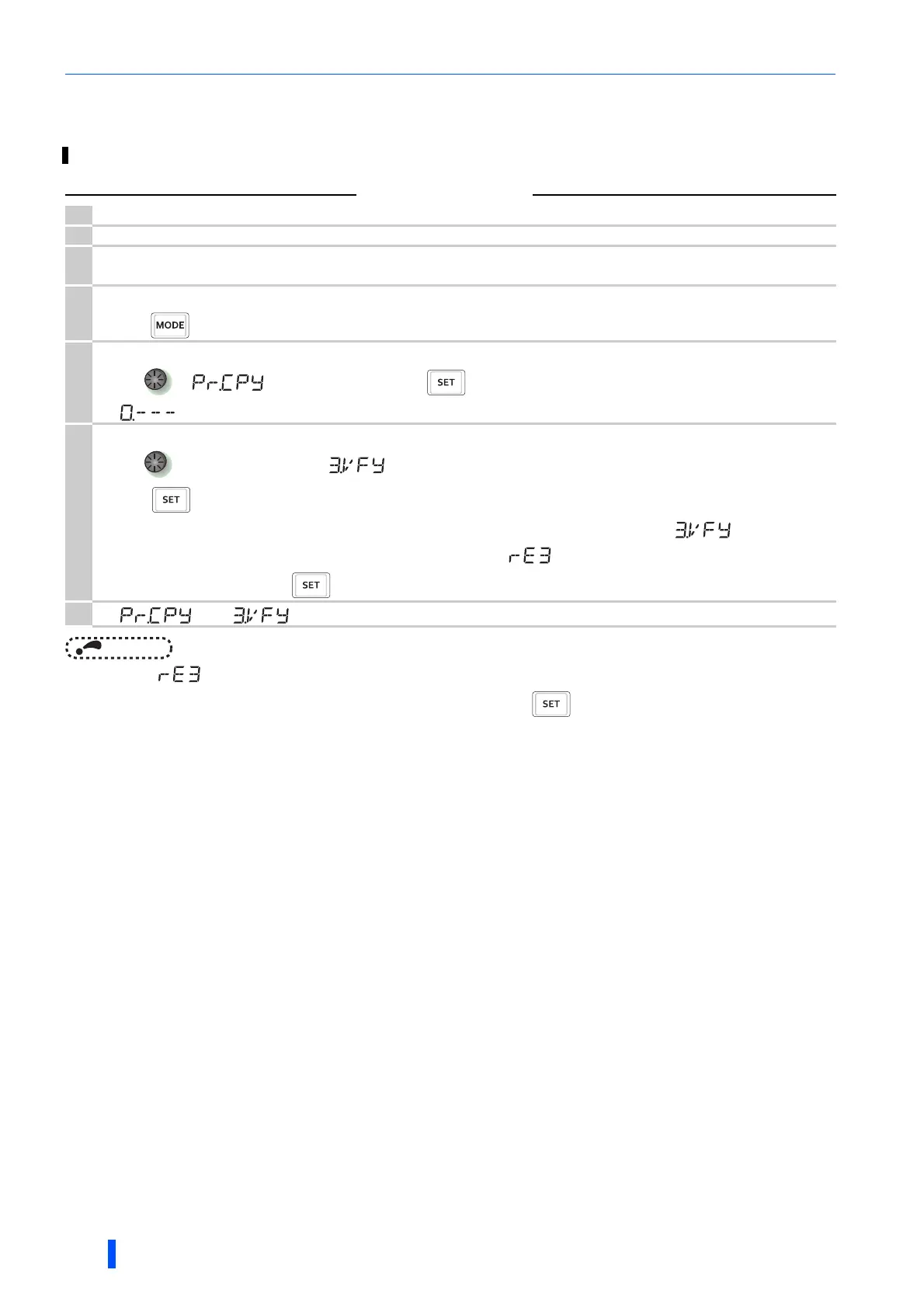

5.18.2 Parameter verification
NOTE
• flickers... Why?
- The set frequency may be incorrect. To continue verification, press .
• Whether the parameter settings of inverters are the same or not can be checked.
Operation
1.
Copy the parameter settings of the verification source inverter to operation panel according to the procedure on page 632.
2.
Move the operation panel to the inverter to be verified.
3.
Screen at power-ON
The monitor display appears.
4.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
5.
Selecting the parameter number
Turn to (parameter copy) and press .
" " appears.
6.
Parameter verification
Turn to change to setting value " " (parameter copy verification mode).
Press . Verification of the parameter settings copied to the operation panel and the parameter settings of the verification
destination inverter is started. (It takes about 60 seconds to verify all the settings. During verification, " " flickers.)
If there are different parameters, the different parameter number and " " flicker.
To continue verification, press .
7.
" " and " " flicker alternately after verification ends.
To Next Page
