(T) Multi-Function Input Terminal Parameters
428
PARAMETERS

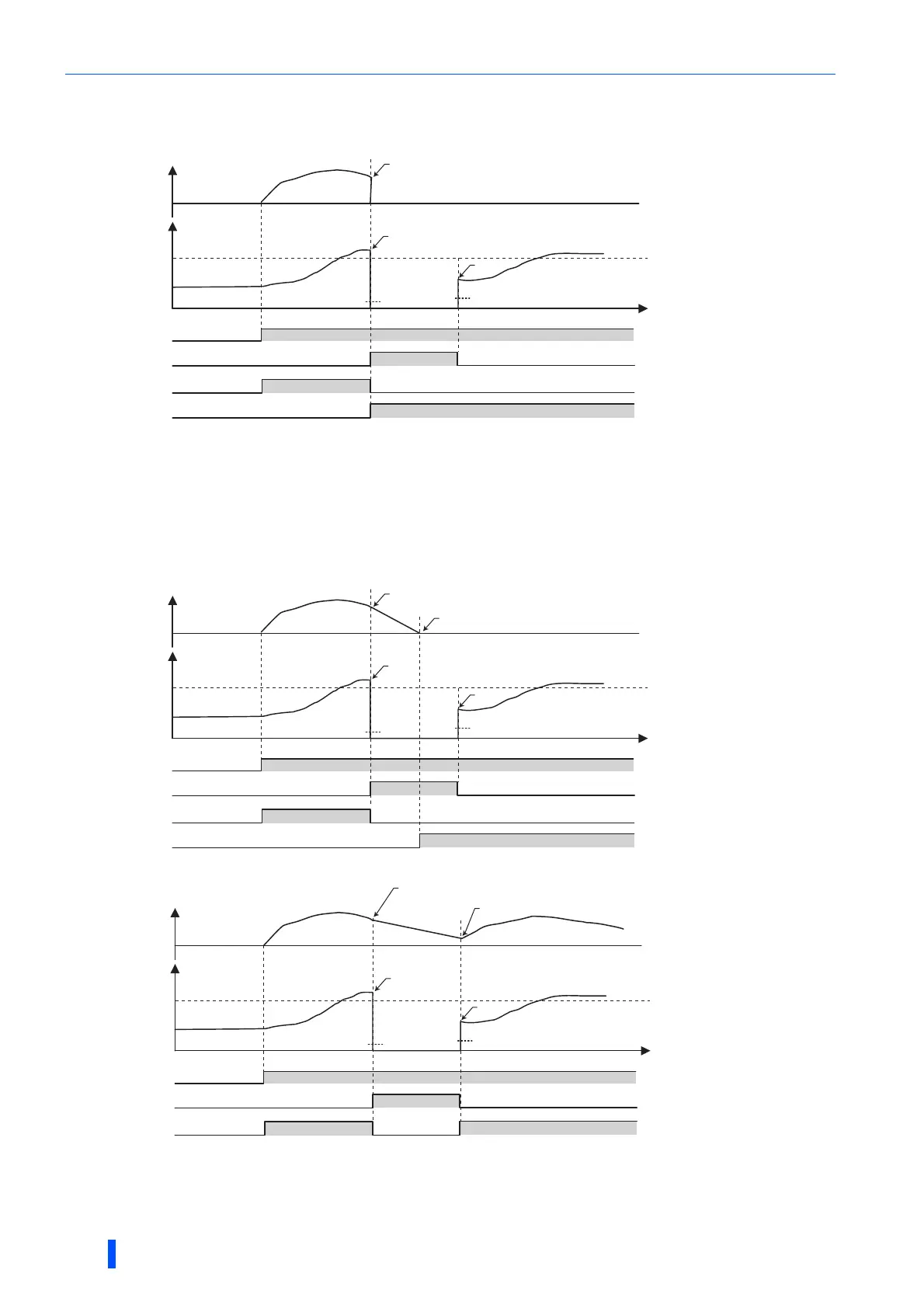

Fault output (Pr.573 = "2")
• When the analog current input becomes 2 mA or lower, 4 mA input fault (E.LCI) will be activated and the output is shut off.
• PID control (reverse action)
Fault output after deceleration to stop (Pr.573 = "3")
• When the analog current input becomes 2 mA or lower, 4 mA input fault (E.LCI) will be activated after the deceleration stop
and the output is shut off.
• When the analog current input is restored during the deceleration, it will accelerate again and operate according to the
current input.
• PID control (reverse action)
• The analog input current is restored during deceleration under PID control (reverse action)
20mA
4mA
2mA
3mA
Output frequency
Time
PID signal
Measured value
Set point (fixed)
Input current
decrease
Return
ALM signal
E.LCI occurs
LF signal
STF
20mA
4mA
2mA
3mA
Output frequency
Time
PID signal
Measured value
Set point (fixed)
Input current
decrease
Return
ALM signal
Decelerates as the input current is lost
After deceleration stop, E.LCI occurs
LF signal
STF
20mA
4mA
2mA
3mA
Output frequency
Time
STF
LF signal
PID signal
Measured value
Set point (fixed)
Input current
decrease
Return
Normal operation after the current is restored
OFF during
deceleration
Decelerates as the input current is lost
