Mitsubishi FR-A800

(M) Monitor display and monitor output signal
400
PARAMETERS
5.11.11 Analog remote output function
Analog remote output (Pr.656 to Pr.659)
• The terminals FM/CA, AM and the analog output terminal of the option FR-A8AY can output the values set in Pr.656 to
Pr.659 (Analog remote output).
• When Pr.54 FM/CA terminal function selection = "87, 88, 89, or 90" (remote output), the FM type inverter can output a
pulse train from the terminal FM.
• For FM output (Pr.291 Pulse train I/O selection = "0 (initial value) or 1"):
Terminal FM output [pulses/s] = 1440[Hz]  (analog remote output value - 1000)/100
Where the output range is 0 to 2400 pulses/s.
• For high-speed pulse output (Pr.291 Pulse train I/O selection = "10, 11, 20, or 21"):
Terminal FM output [pulses/s] = 50K[Hz]  (analog remote output value - 1000)/100
Where the output range is 0 to 55K pulses/s.
• When Pr.54 FM/CA terminal function selection = "87, 88, 89, or 90" (remote output), the CA type inverter can output any
analog current from the terminal CA.
An analog value can be output from the analog output terminal.

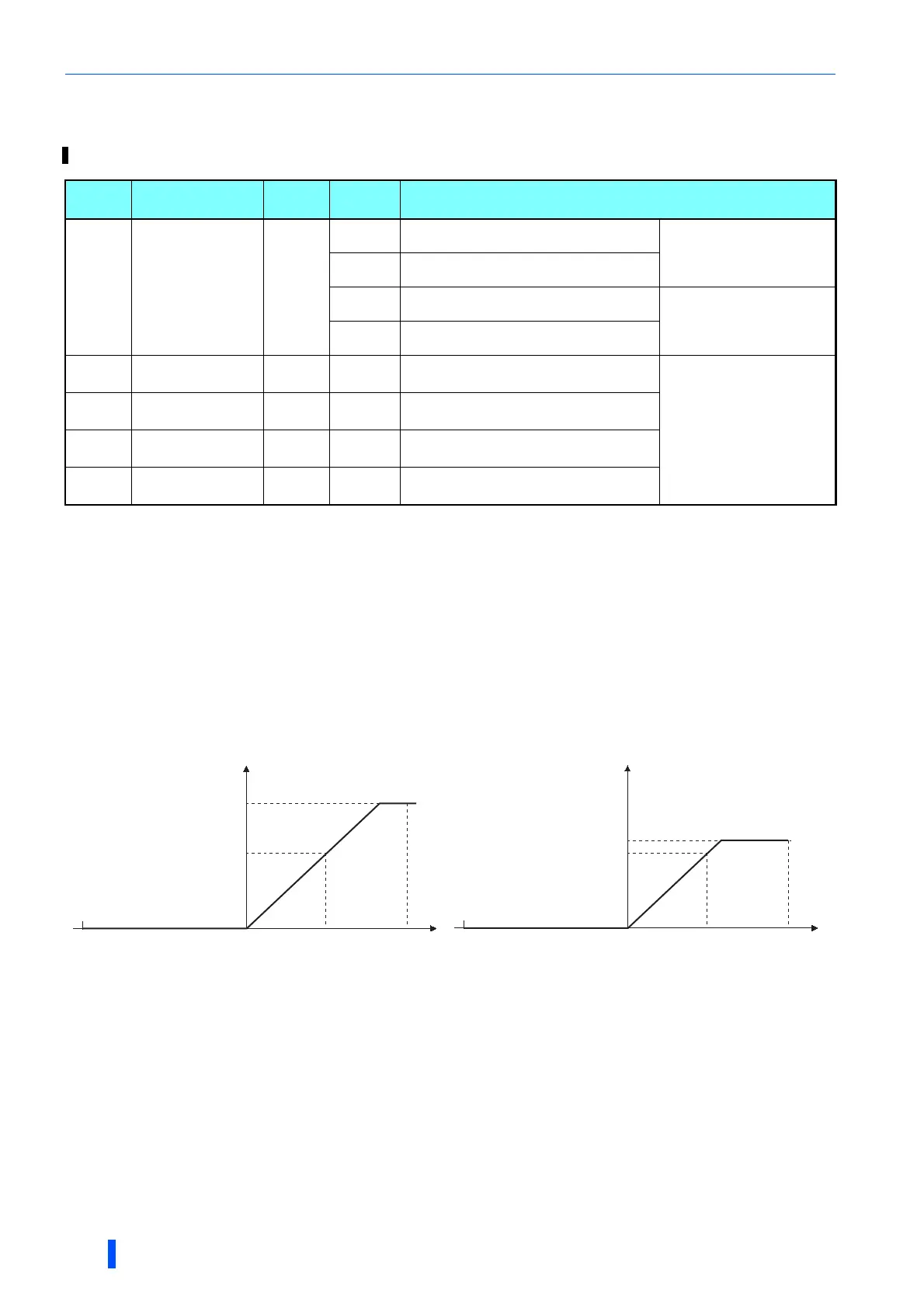

Pr. Name
Initial
value
Setting
range
Description
655
M530
Analog remote
output selection
0
0
Remote output data is cleared when the
power supply is turned OFF
Remote output data is
cleared during an inverter
reset
1
Remote output data is retained when the
power supply is turned OFF
10
Remote output data is cleared when the
power supply is turned OFF
Remote output data is
retained during an inverter
reset
11
Remote output data is retained when the
power supply is turned OFF
656
M531
Analog remote
output 1
1000%
800 to
1200%
Value output from the terminal set as "87" in
terminal function selection (Pr.54, Pr.158)
Set the analog value for
outputting from the analog
output terminals FM/CA and
AM and option FR-A8AY.
657
M532
Analog remote
output 2
1000%
800 to
1200%
Value output from the terminal set as "88" in
terminal function selection (Pr.54, Pr.158)
658
M533
Analog remote
output 3
1000%
800 to
1200%
Value output from the terminal set as "89" in
terminal function selection (Pr.54, Pr.158)
659
M534
Analog remote
output 4
1000%
800 to
1200%
Value output from the terminal set as "90" in
terminal function selection (Pr.54, Pr.158)
1440
1100 1200
Pulse speed
[pulse/s]
800
1000
Analog remote output value [%]
0
2400
Terminal FM (FM output)
50K
1100 1200
Pulse speed
[pulse/s]
800
1000
Analog remote output value [%]
0
55K
Terminal FM (High-speed pulse train output)
