Mitsubishi FR-A800

(A) Application parameters
PARAMETERS
509
5
GROUP
A
PID output suspension function (SLEEP function) (SLEEP signal, Pr.575
to Pr.577)
• When a status where the output frequency after PID calculation is less than Pr.576 Output interruption detection level
has continued for the time set in Pr.575 Output interruption detection time or longer, inverter running is suspended. This
allows the amount of energy consumed in the inefficient low-speed range to be reduced.
• When the deviation (for instance, the set point - measured value) reaches the PID output shutoff release level (Pr.577
setting value -1000%) while the PID output suspension function is activated, the PID output suspension function is
released, and PID control operation is automatically restarted.
• Whether to allow motor to coast to a stop or perform a deceleration stop when SLEEP operation is started can be selected
using Pr.554.
• While the PID output suspension function is activated, the PID output interruption signal (SLEEP) is output. During this
time, the inverter running signal (RUN) turns OFF and the During PID control activated signal (PID) turns ON.
• For the terminal used for the SLEEP signal, set "70 (positive logic)" or "170 (negative logic)" in any of Pr.190 to Pr.196
(output terminal function selection).
 When the PID output shutoff release level is reached during a deceleration stop, output shutoff is released, operation is re-accelerated and PID control
is continued. During deceleration Pr.576 Output interruption detection level is invalid.

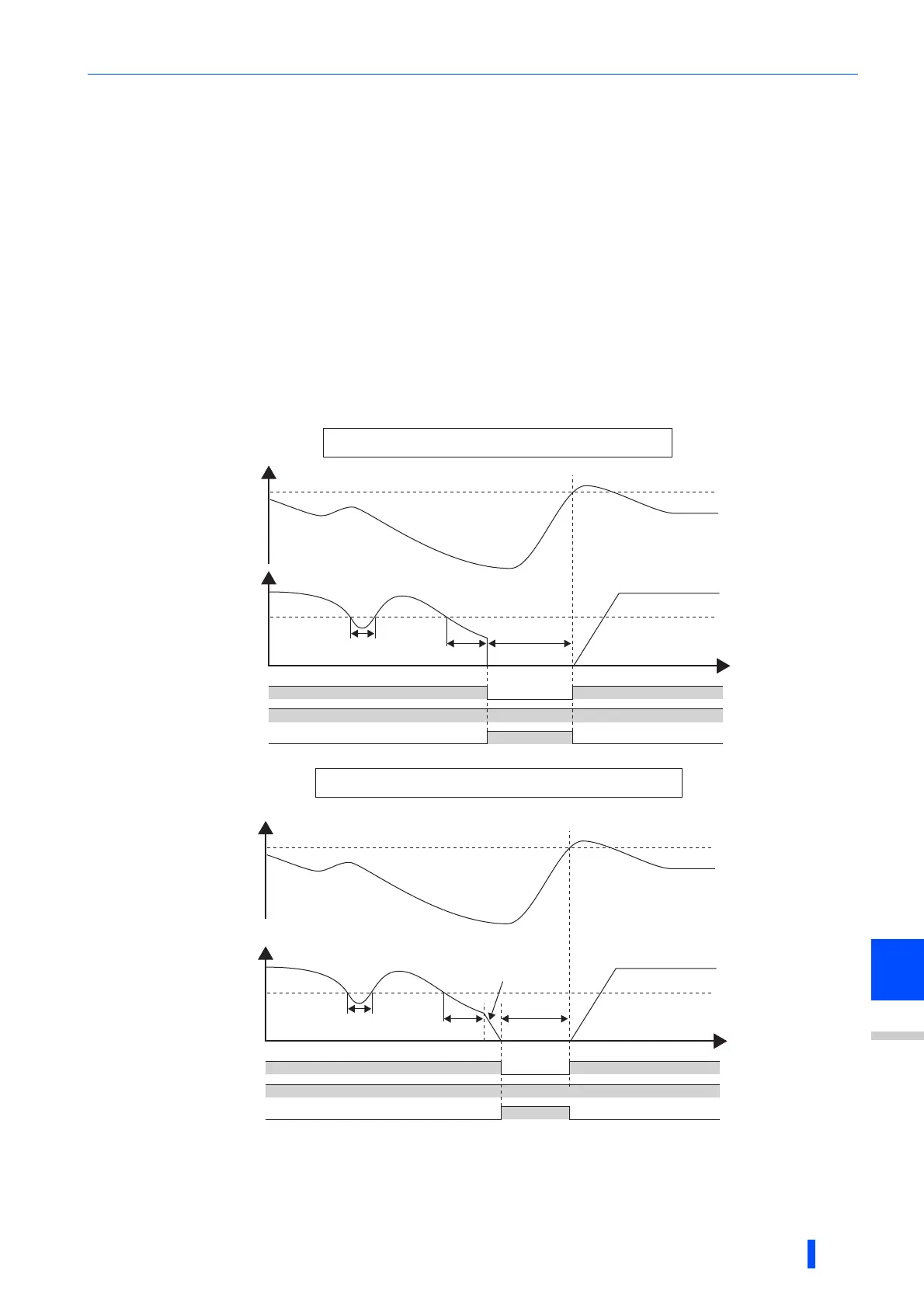

Output frequency
Deviation
When Pr.554="0 to 3", reverse operation (Pr.128="10")
Pr.576
Pr.577 - 1000%
Cancel
level
RUN
Time
ON
OFF
SLEEP
Less than Pr.575
Pr.575 or more SLEEP period
PID
Output frequency
Pr.576
RUN
Time
ON
OFF
SLEEP
Deceleration stop
PID
When Pr.554="10 to 13", reverse operation (Pr.128="10")
Deviation
Pr.577 - 1000% Cancel
level
Less than Pr.575
Pr.575 or more
SLEEP period
∗1
