Speed control under Real sensorless vector control, vector control, PM sensorless vector
control
PARAMETERS
191
5

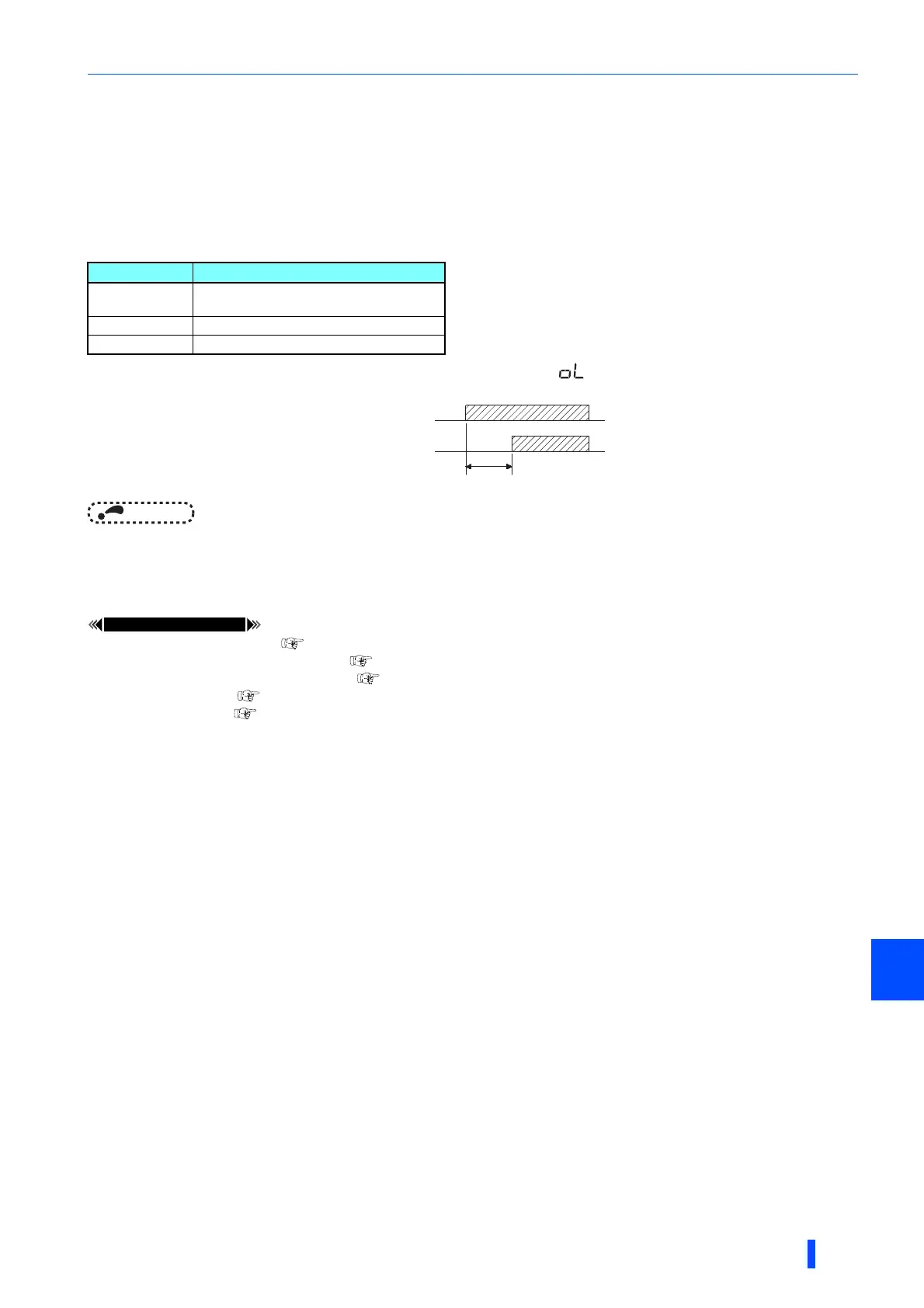

Adjusting the stall prevention operation signal and output timing (OL
signal, Pr.157)
• If the output torque exceeds the torque limit level and the torque limit is activated, the stall prevention operation signal (OL
signal) is turned ON for 100 ms or longer. When the output torque drops to the torque limit level or lower, the output signal
also turns OFF.
• Pr.157 OL signal output timer can be used to set whether to output the OL signal immediately, or whether to output it after
a certain time period has elapsed.
• The OL signal is also output during the regeneration avoidance operation (overvoltage stall).
NOTE
• OL signal is assigned to the terminal OL in the initial setting. The OL signal can also be assigned to other terminals by setting
"3 (positive logic) or 103 (negative logic)" in any of Pr.190 to Pr.196 (output terminal function selection).
• Changing the terminal assignment using Pr.190 to Pr.196 (output terminal function selection) may affect the other
functions. Set parameters after confirming the function of each terminal.
Pr.22 Stall prevention operation level page 348
Pr.178 to Pr.189 (input terminal function selection) page 430
Pr.190 to Pr.196 (output terminal function selection) page 384
Pr.840 Torque bias selection page 202
Pr.865 Low speed detection page 392
Pr.157 setting Description
0
(Initial value)
Output immediately.
0.1 to 25 Output after the set time (s).
9999 Not output.
Overload state
(OL operation)
OL output signal
Pr.157
Set time(s)
