(T) Multi-Function Input Terminal Parameters
PARAMETERS
425
5
GROUP
T
(b) Adjust any point without application of a voltage (current) between terminals 1 and 5 (4 and 5).
NOTE
• By pressing after step 6, the present torque setting bias/gain setting can be confirmed.
Confirmation is not possible after executing step 7.

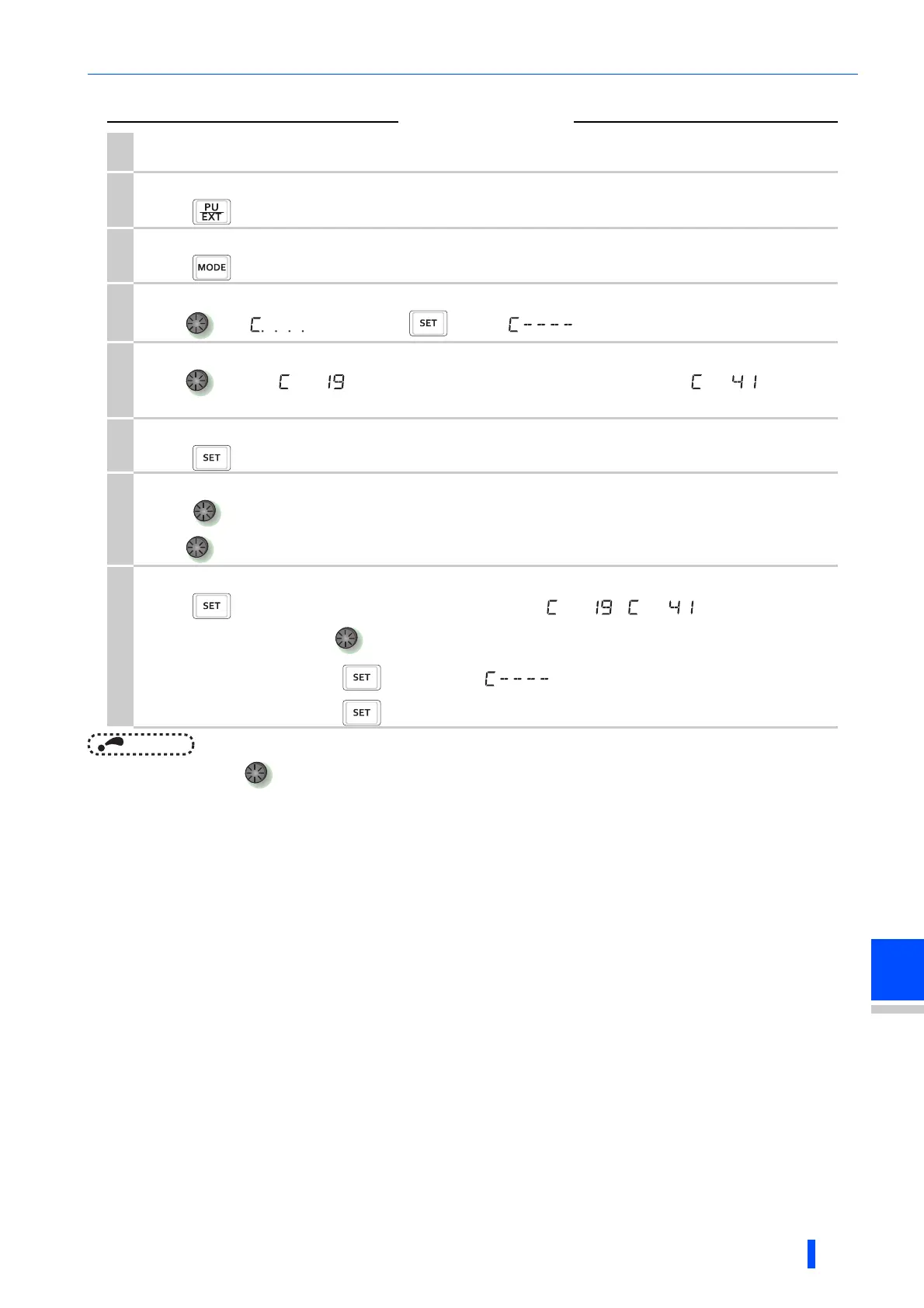

Operation
1.
Screen at power-ON
The monitor display appears.
2.
Changing the operation mode
Press to choose the PU operation mode. [PU] indicator is on.
3.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
4.
Calibration parameter selection
Turn until appears. Press to display .
5.
Selecting the parameter number
Turn to choose C19(Pr.920) Terminal 1 gain (torque) for the terminal 1, and C41(Pr.933)
Terminal 4 gain (torque) for the terminal 4.
6.
Analog voltage (current) display
Press to display the analog voltage (current) % currently applied to the terminal 1 (4).
7.
Analog voltage (current) adjustment
When is turned, the gain voltage (current) % currently set to the parameter is displayed.
Turn until the desired gain voltage (current) % is displayed.
8.
Setting completed
Press to enter the setting. The analog voltage (current) % and ( ) flicker alternately.
Turn to read another parameter.
Press to return to the display.
Press twice to show the next parameter.
