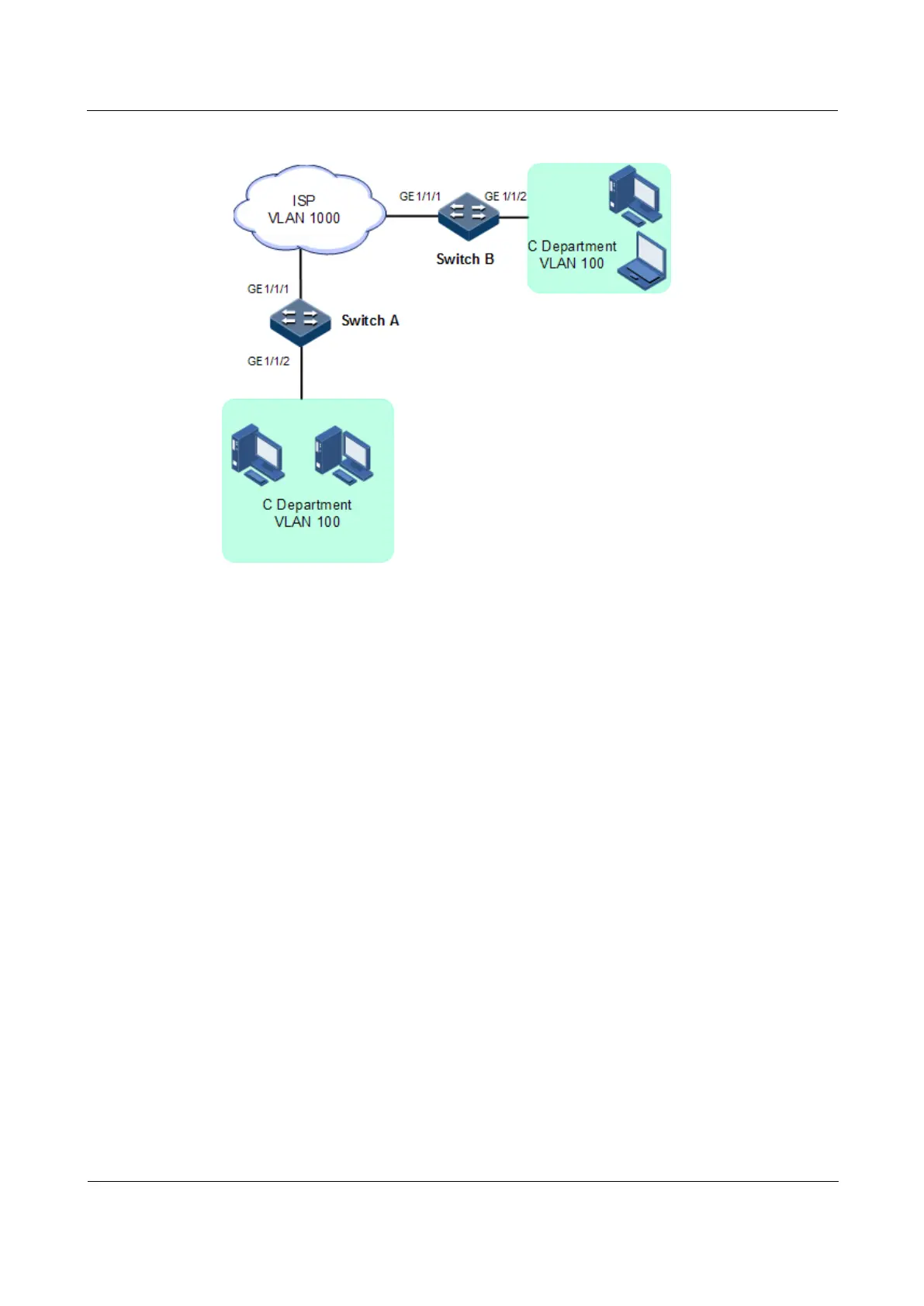

Figure 2-7 Basic QinQ networking
Configuration steps
Configure Switch A and Switch B.
Configurations of Switch A are the same with those of Switch B. Take Switch A for example.
Step 1 Create VLAN 100 and VLAN 1000, and activate them. TPID is 9100.
Raisecom#config
Raisecom(config)#create vlan 100,1000 active
Raisecom(config)#interface gigaethernet 1/1/1
Raisecom(config-gigaethernet1/1/1)#switchport mode trunk
Raisecom(config-gigaethernet1/1/1)#switchport trunk allowed vlan 1000
Raisecom(config-gigaethernet1/1/1)#tpid 9100
Raisecom(config-gigaethernet1/1/1)#exit
Step 2 Configure basic QinQ on the interface.
Raisecom(config)#interface gigaethernet 1/1/2
Raisecom(config-gigaethernet1/1/2)#switchport mode trunk
Raisecom(config-gigaethernet1/1/2)#switchport trunk native vlan 1000
Raisecom(config-gigaethernet1/1/2)#dot1q-tunnel
Raisecom(config-gigaethernet1/1/2)#switchport qinq 100
Raisecom(config-gigaethernet1/1/2)#exit
