6.6.10 Example for configuring DHCPv4 Relay
Networking requirements
As shown in Figure 6-15, the switch works as the DHCP relay device. The host name is
raisecom. The switch is connected to the DHCP server through a service interface. The DHCP
server assigns IP addresses to clients so that the NMS can discover and manage these clients.

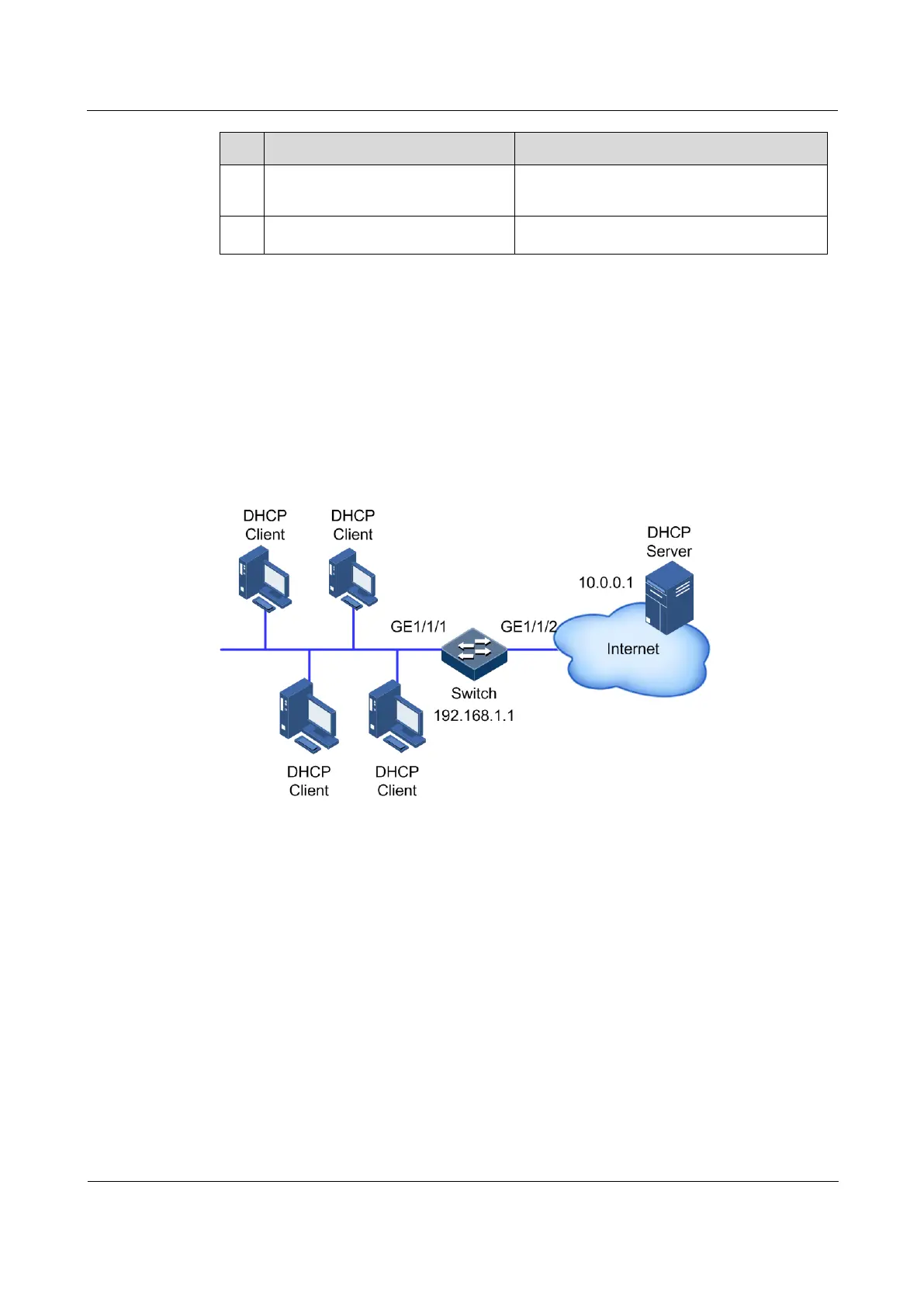

Figure 6-15 DHCP Relay networking
Configuration steps
Step 1 Enable global DHCP Relay and interface DHCP Relay.
Raisecom#config
Raisecom(config)#interface gigaethernet 1/1/1
Raisecom(config-gigaethernet1/1/1)#ip dhcp relay
Raisecom(config-gigaethernet1/1/1)#interface gigaethernet 1/1/2
Raisecom(config-gigaethernet1/1/2)#ip dhcp relay
Raisecom(config-gigaethernet1/1/2)#exit
Step 2 Configure the destination IP address of DHCP Relay.
Raisecom(config)#interface gigaethernet 1/1/1
