ISCOM2600G-HI (A) Series Configuration Guide
8 Multicast
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
333

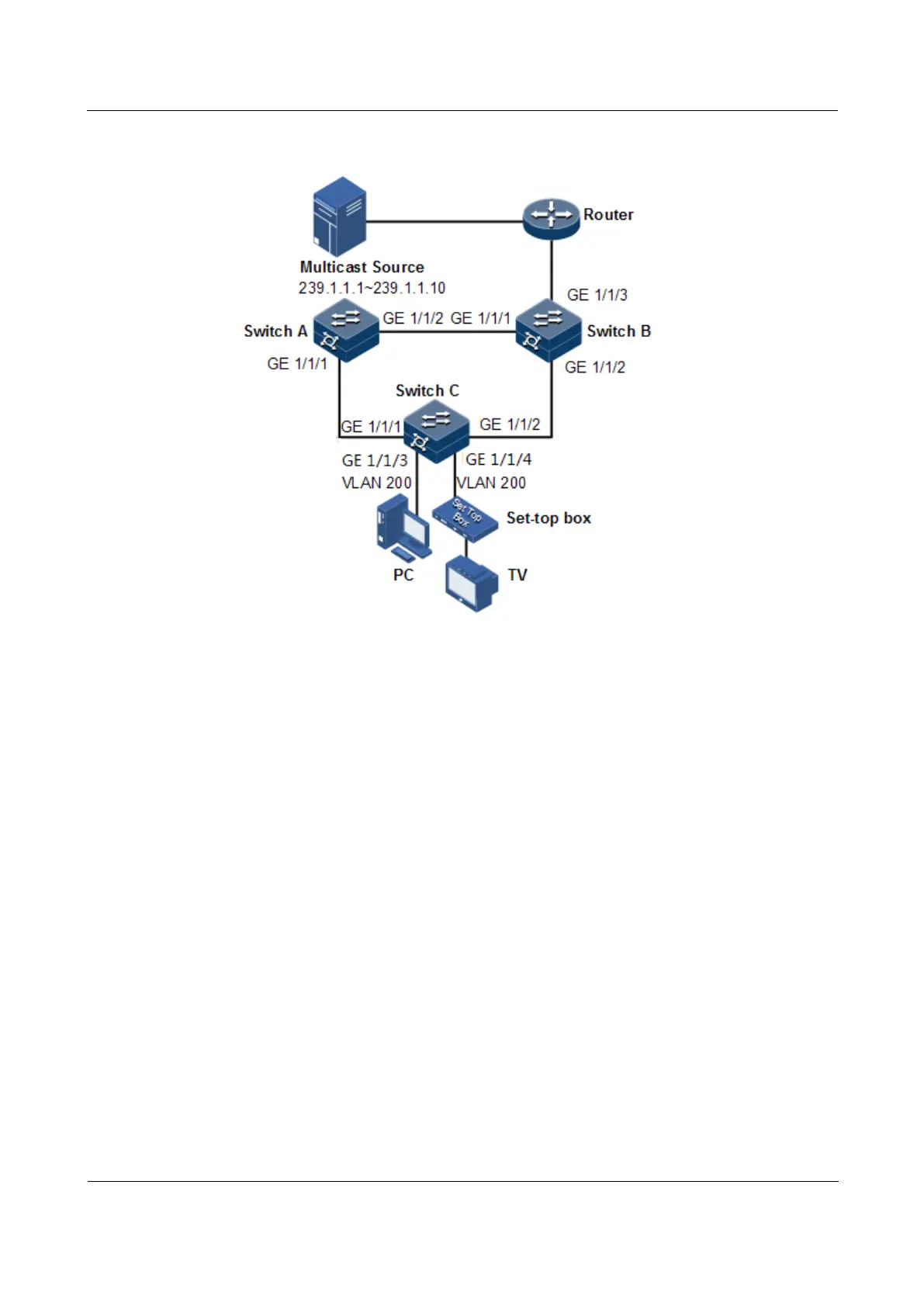

Figure 8-6 Ring network multicast networking
Configuration steps
Step 1 Enable STP, create a VLAN, and add interfaces to the VLAN.
Configure Switch A.
SwitchA#config
SwitchA(config)#spanning-tree enable
SwitchA(config)#spanning-tree mode stp
SwitchA(config)#interface gigaethernet 1/1/1
SwitchA(config-gigaethernet1/1/1)#switchport mode trunk
SwitchA(config-gigaethernet1/1/1)#switchport trunk native vlan 200
SwitchA(config-gigaethernet1/1/1)#exit
SwitchA(config)#interface gigaethernet 1/1/2
SwitchA(config-gigaethernet1/1/2)#switchport mode trunk
SwitchA(config-gigaethernet1/1/2)#switchport trunk native vlan 200
Configure Switch B.
SwitchB#config
SwitchB(config)#spanning-tree enable
SwitchB(config)#spanning-tree mode stp
SwitchB(config)#interface gigaethernet 1/1/1
