3.1.2 ISF application
As shown in Figure 3-1, the master switch and backup switch form an ISF, so they appear as
only one device, the ISF, for the upstream or downstream devices.

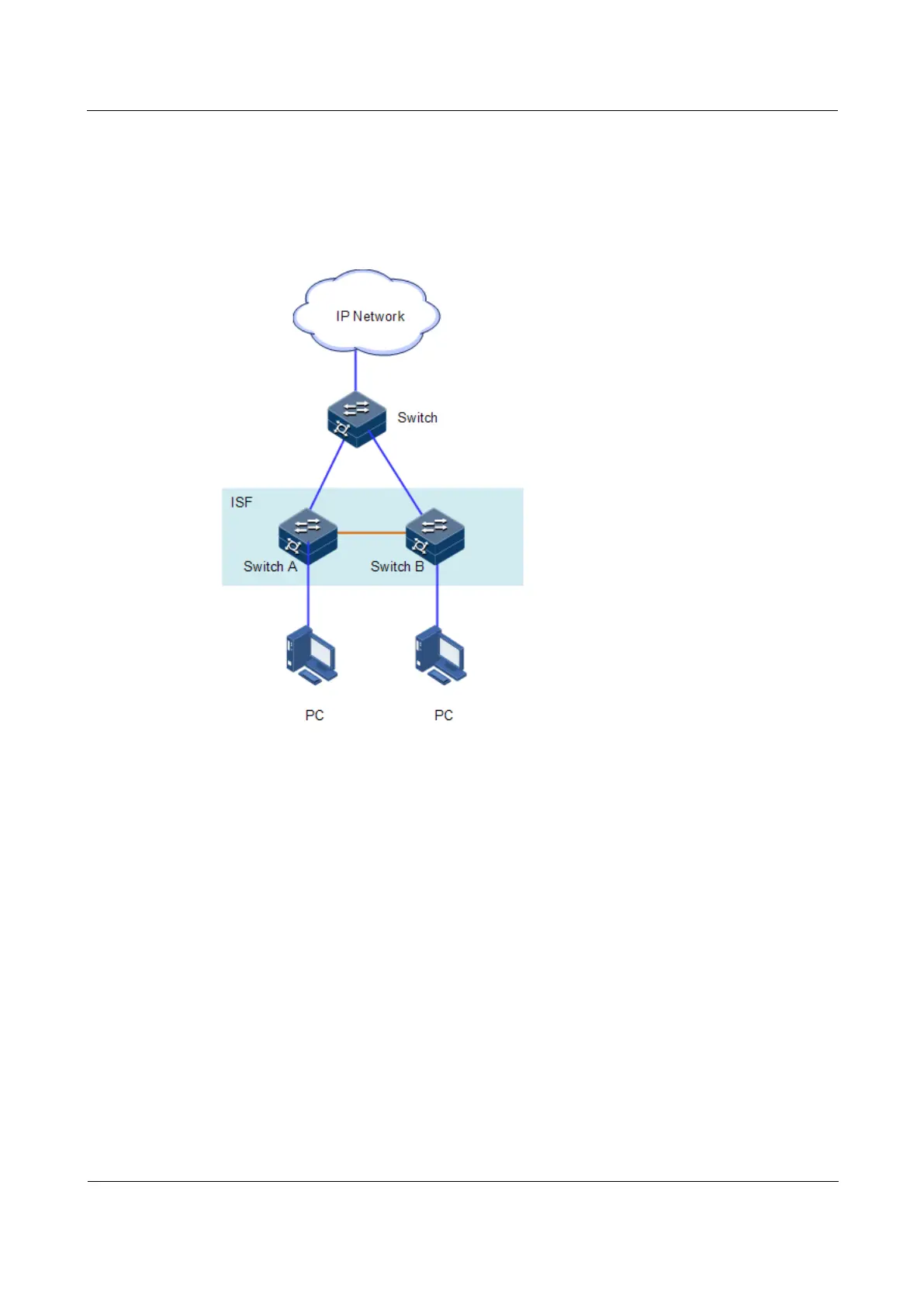

Figure 3-1 ISF networking
3.2 ISF concepts
As shown in Figure 3-2, connect Switch A with Switch B, and configure them properly to
form an ISF. The ISF manages physical and software resources of Switch A and Switch B.
