Checking results
Use the show dot1q-tunnel command to show QinQ configurations.
Raisecom#show dot1q-tunnel
Interface QinQ Status Outer TPID on port Cos override Vlan-
map-miss
--------------------------------------------------------
gigaethernet1/1/1 - 0x9100 - disable
gigaethernet1/1/2 Dot1q-tunnel 0x8100 - disable
2.4.10 Example for configuring selective QinQ
Networking requirements
As shown in Figure 2-8, the carrier network contains common PC Internet access services and
IP phone services. PC Internet access services are assigned to VLAN 1000, and IP phone
services are assigned to VLAN 2000.
Configure Switch A and Switch B as below to make the user and server communicate through
the carrier network:

Add outer Tag VLAN 1000 to VLANs 100–102 assigned to PC Internet access services.

Add outer Tag 2000 to VLANs 200–202 for IP phone services.

The carrier TPID is 9100.

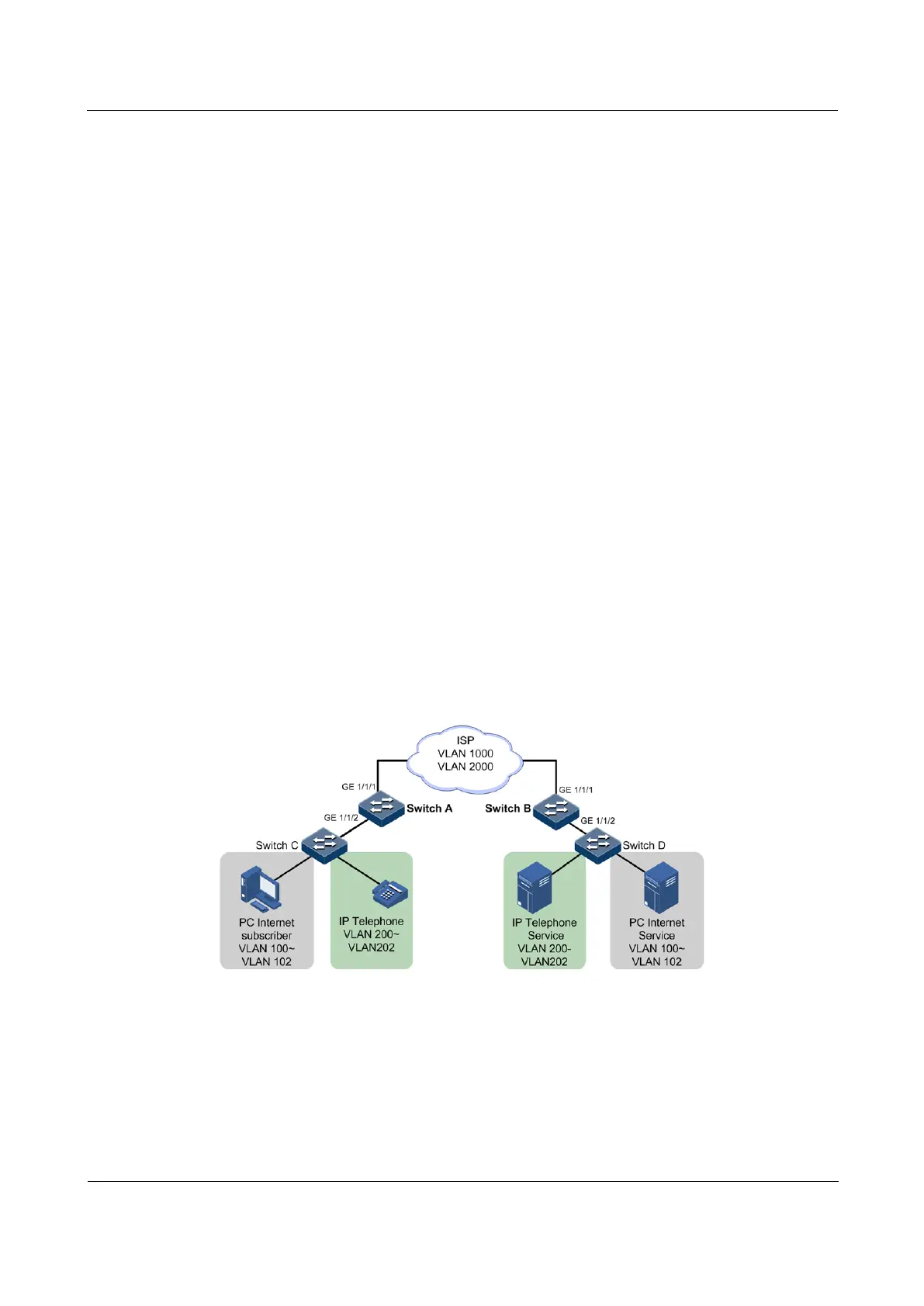

Figure 2-8 Selective QinQ networking
Configuration steps
Configure Switch A and Switch B.
Configurations of Switch A are the same with those of Switch B. Take Switch A for example.
Step 1 Create and activate VLANs 100–102, VLANs 200–202, VLAN 1000, and VAN 2000. The
TPID is 9100.
