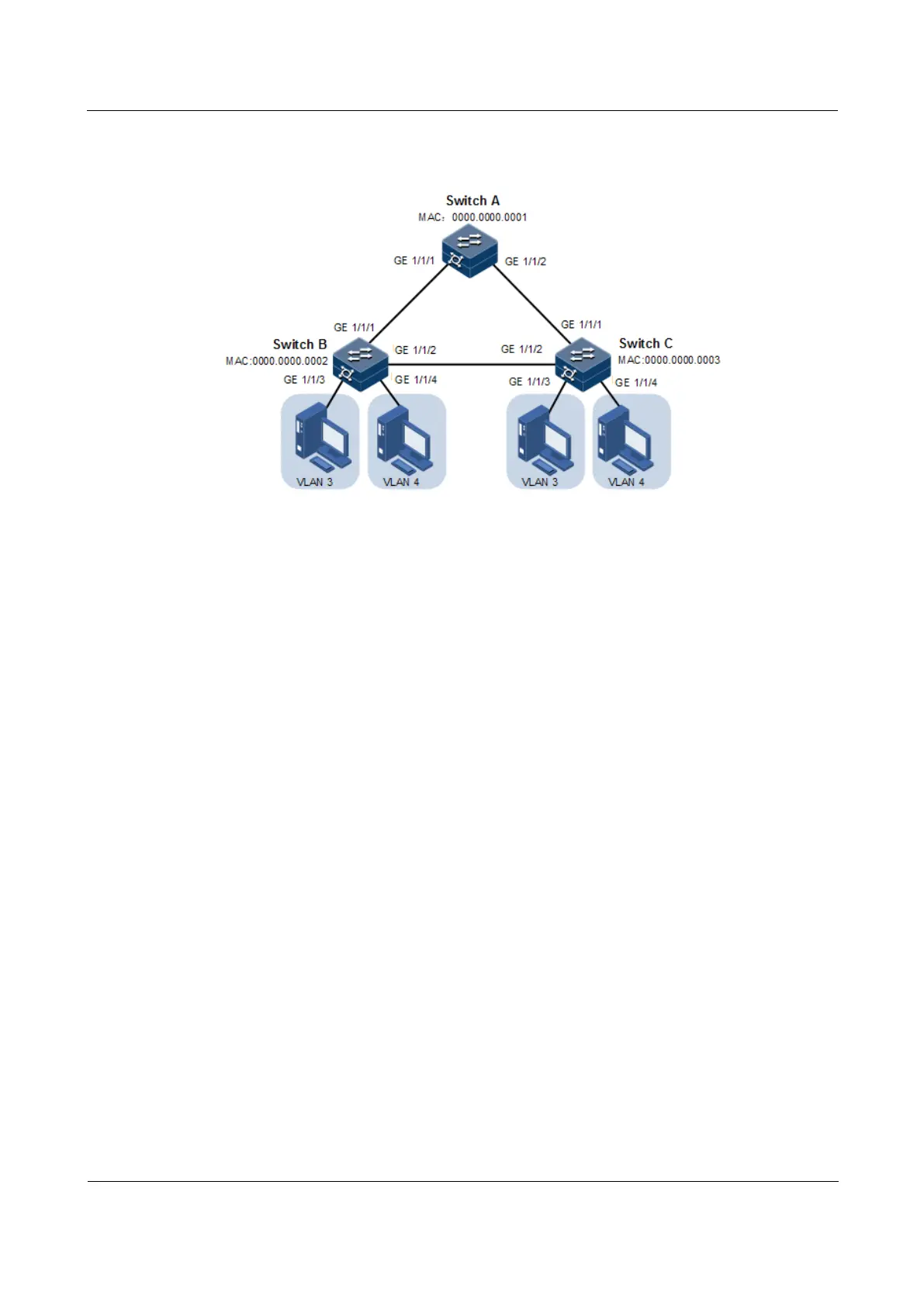

Figure 2-18 MSTP networking
Configuration steps
Step 1 Create VLAN 3 and VLAN 4 on Switch A, Switch B, and switch C respectively, and activate
them.
Configure Switch A.
Raisecom#name SwitchA
SwitchA#config
SwitchA(config)#create vlan 3,4 active
Configure Switch B.
Raisecom#name SwitchB
SwitchB#config
SwitchB(config)#create vlan 3,4 active
Configure Switch C.
Raisecom#name SwitchC
SwitchC#config
SwitchC(config)#create vlan 3,4 active
Step 2 Configure GE 1/1/1 and GE 1/1/2 on Switch A to allow packets of all VLAN to pass in Trunk
mode. Configure GE 1/1/1 and GE 1/1/2 on Switch B to allow packets of all VLANs to pass
in Trunk mode. Configure GE 1/1/1 and GE 1/1/2 on Switch C to allow packets of all VLANs
