4.2.9 Example for configuring 1:1 ELPS protection
Networking requirements
As shown in Figure 4-1, to improve link reliability between Switch A and Switch B, configure
1:1 ELPS on the two Switch devices and detect fault based on physical interface status. GE
1/1/1 and GE 1/1/2 belong to VLANs 100–200.

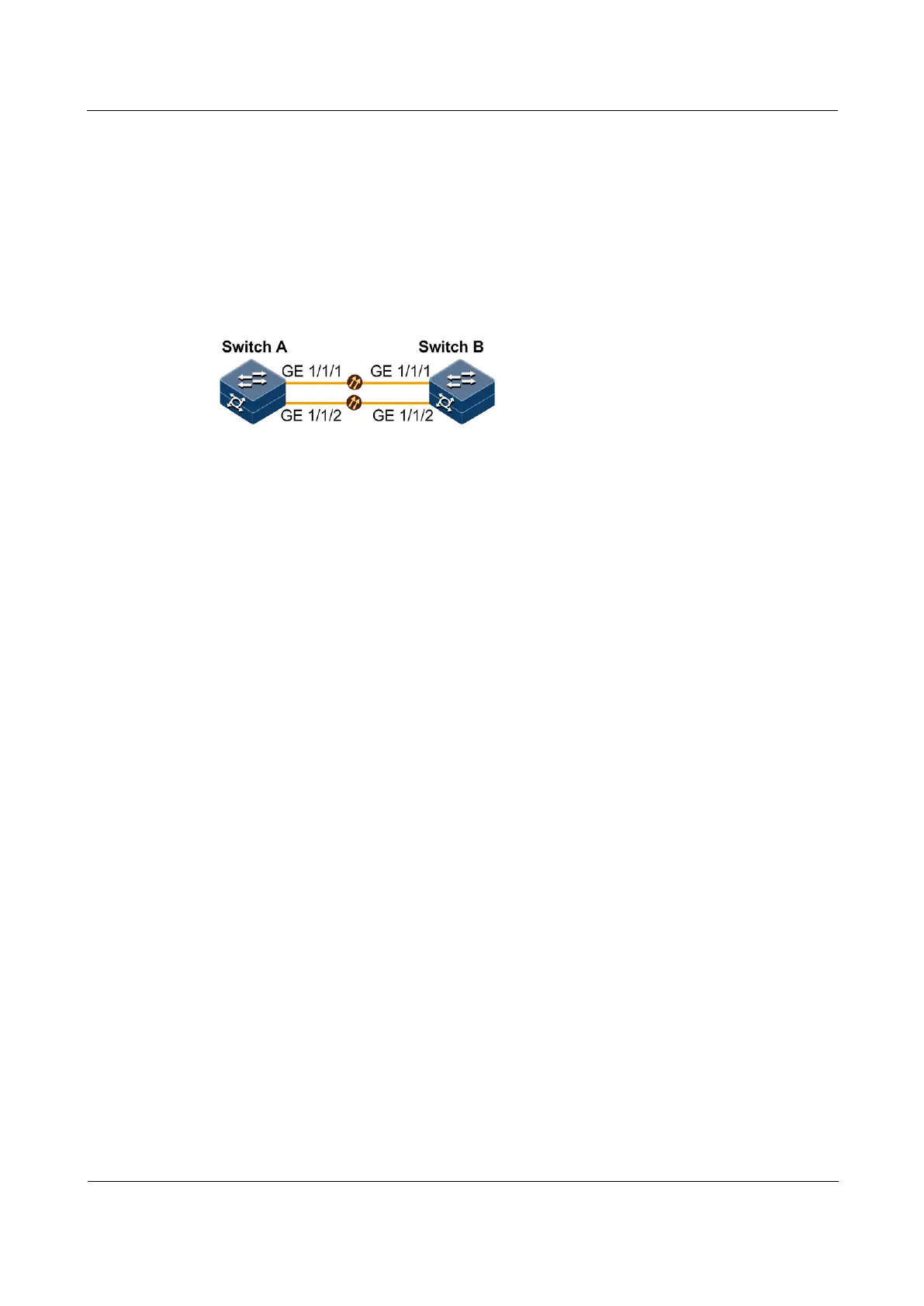

Figure 4-1 1:1 ELPS networking
Configuration steps
Step 1 Create VLANs 100–200 and add interfaces to VLANs 100–200.
Configure Switch A.
Raisecom#hostname SwitchA
SwitchA#config
SwitchA(config)#create vlan 100-200 active
SwitchA(config)# interface gigaethernet 1/1/1
SwitchA(config-gigaethernet1/1/1)#switchport mode trunk
SwitchA(config-gigaethernet1/1/1)#switchport trunk allowed vlan 100-200
confirm
SwitchA(config-gigaethernet1/1/1)#exit
SwitchA(config)# interface gigaethernet 1/1/2
SwitchA(config-gigaethernet1/1/2)#switchport mode trunk
SwitchA(config-gigaethernet1/1/2)#switchport trunk allowed vlan 100-200
confirm
SwitchA(config-gigaethernet1/1/2)#exit
Configure Switch B.
Raisecom#hostname SwitchB
SwitchB#config
SwitchB(config)#create vlan 100-200 active
SwitchB(config)#interface gigaethernet 1/1/1
SwitchB(config-gigaethernet1/1/1)#switchport mode trunk
SwitchB(config-gigaethernet1/1/1)#switchport trunk allowed vlan 100-200
confirm
SwitchB(config-gigaethernet1/1/1)#exit
SwitchB(config)#interface gigaethernet 1/1/2
SwitchB(config-gigaethernet1/1/2)#switchport mode trunk
SwitchB(config-gigaethernet1/1/2)#switchport trunk allowed vlan 100-200
confirm
SwitchB(config-gigaethernet1/1/2)#exit
