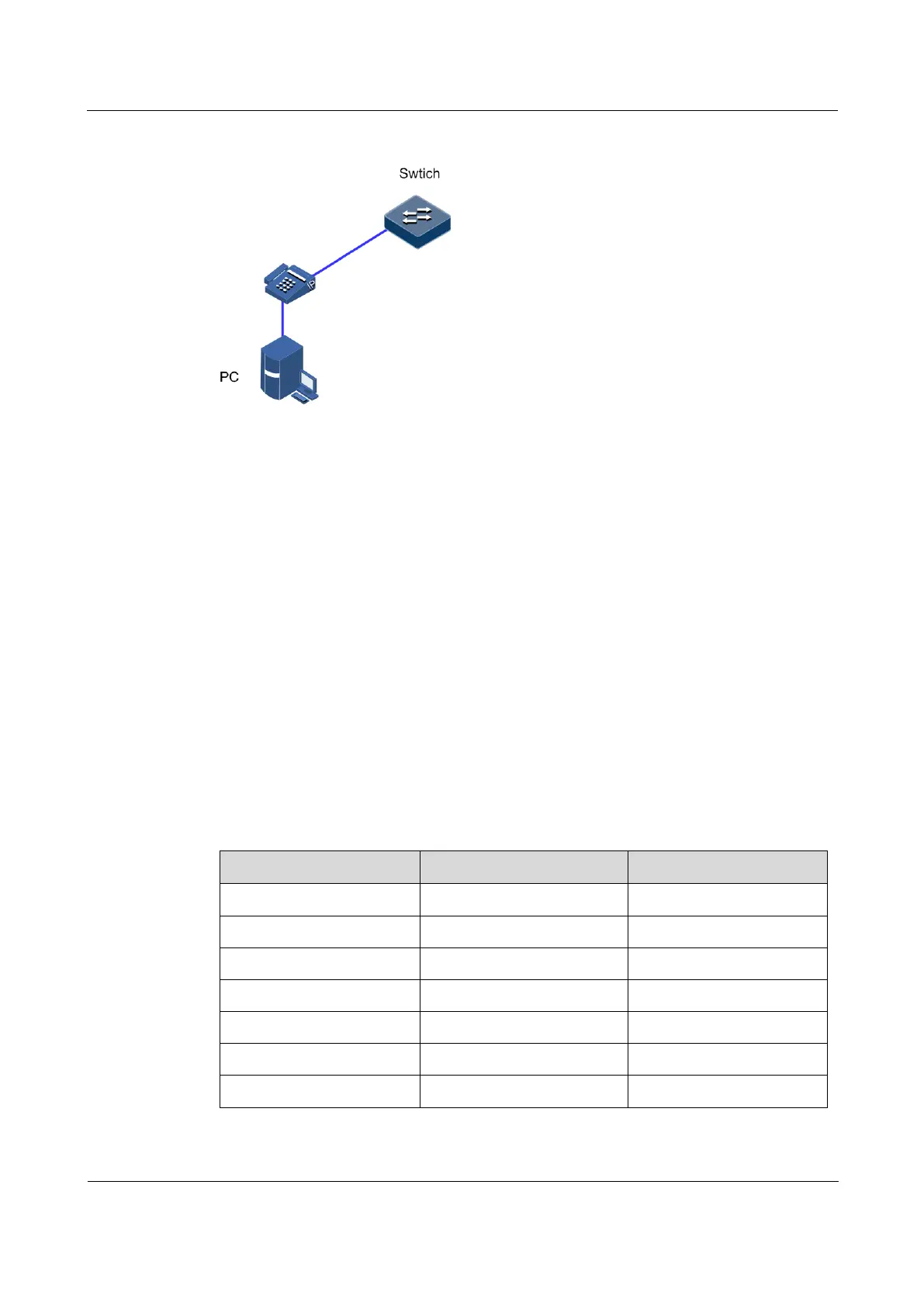

Figure 2-27 Networking for IP phone to connect PC to the switch
2.13.2 Preparing for configurations
Scenario
The voice VLAN can transmit voice traffic. You can choose one of the following networking
schemes according to whether voice packets are tagged or not:

If the IP phone sends untagged voice packets, see section Example for adding interface
to voice VLAN and configuring it to work in manual mode.

If the IP phone supports obtaining the voice VLAN configured on the switch through
LLDP, it will send tagged voice packets. For details, see section 2.13.9 Example for
configuring IP phone to access voice VLAN packets through LLDP.
Prerequisite
Create a VLAN, and configure its parameters.
2.13.3 Default configurations of voice VLAN
Default configurations of Organizationally Unique Identifier (OUI) of the voice VLAN are as
below.
OUI-Address
Mask address
Description
0001.E300.0000
FFFF.FF00.0000
Siemens-phone
0003.6B00.0000
FFFF.FF00.0000
Cisco-phone
0004.0D00.0000
FFFF.FF00.0000
Avaya-phone
00D0.1E00.0000
FFFF.FF00.0000
Pingtel-phone
0060.B900.0000
FFFF.FF00.0000
Philips/NEC-phone
00E0.7500.0000
FFFF.FF00.0000
Verilink-phone
00E0.BB00.0000
FFFF.FF00.0000
NBX-phone
Other default configurations of the voice VLAN are as below.
