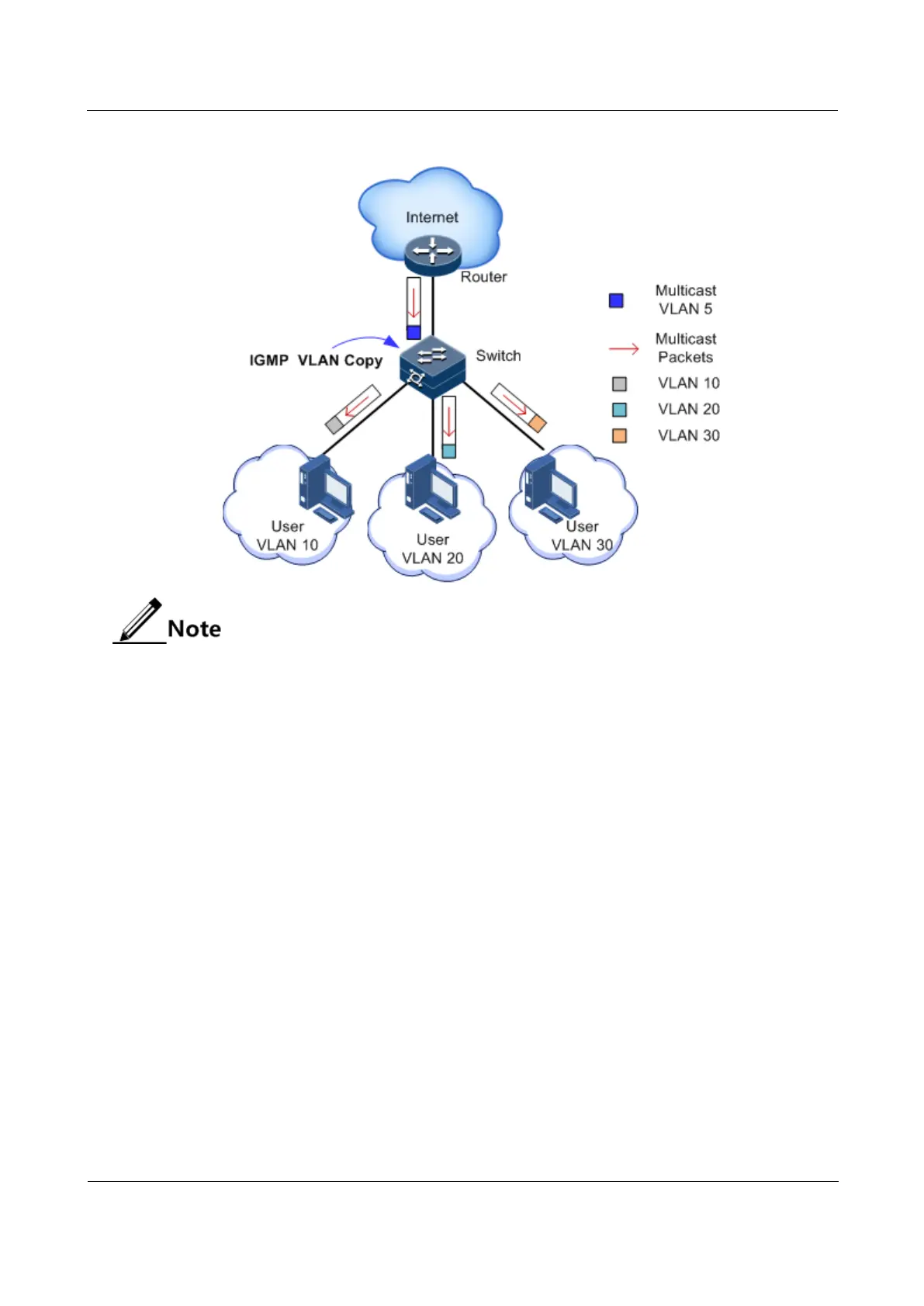

Figure 8-12 Data transmission of multicast VLAN copy
The ISCOM2600G-HI series switch can be configured with 1–10 multicast VLANs
and at least one multicast VLAN and corresponding group address set. It supports up
to 1024 multicast groups.
8.7.2 Preparing for configurations
Scenario
As shown in Figure 8-13, multiple hosts belonging to different VLANs receive data of the
multicast source. Enable multicast VLAN copy on Switch B and configure multicast VLAN
so that multicast data is copied on the receiving interface to the user VLAN and users of
different VLANs can share a multicast VLAN to receive the same multicast data and reduce
waste of bandwidth.
