ISCOM2600G-HI (A) Series Configuration Guide
10 Security
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
409

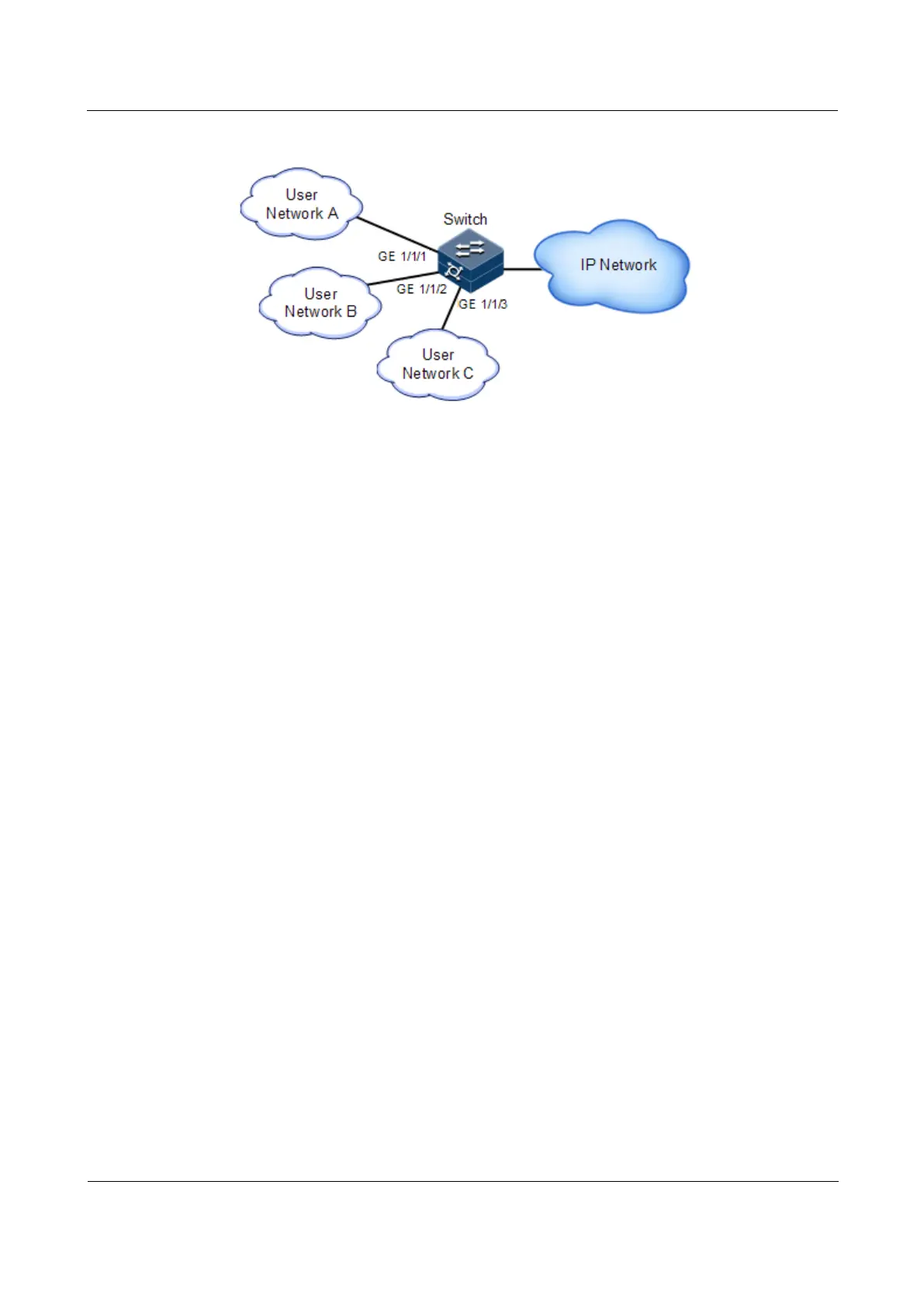

Figure 10-1 Port security MAC networking
Configuration steps
Step 1 Configure the secure MAC address on GE 1/1/1.
Raisecom#config
Raisecom(config)#interface gigaethernet 1/1/1
Raisecom(config-gigaethernet1/1/1)#switchport port-security
Raisecom(config-gigaethernet1/1/1)#switchport port-security maximum 3
Raisecom(config-gigaethernet1/1/1)#switchport port-security mac-address
0000.0000.0001 vlan 1
Raisecom(config-gigaethernet1/1/1)#switchport port-security violation
protect
Raisecom(config-gigaethernet1/1/1)#switchport port-security trap enable
Raisecom(config-gigaethernet1/1/1)#exit
Raisecom(config)#port-security aging-time 10
Step 2 Configure the secure MAC address on GE 1/1/2.
Raisecom(config)#interface gigaethernet 1/1/2
Raisecom(config-gigaethernet1/1/2)#switchport port-security
Raisecom(config-gigaethernet1/1/2)#switchport port-security maximum 2
Raisecom(config-gigaethernet1/1/2)#switchport port-security mac-address
sticky
Raisecom(config-gigaethernet1/1/2)#switchport port-security violation
restrict
Raisecom(config-gigaethernet1/1/2)#exit
Step 3 Configure the secure MAC address for GE 1/1/3.
Raisecom(config)#interface gigaethernet 1/1/3
Raisecom(config-gigaethernet1/1/3)#switchport port-security
Raisecom(config-gigaethernet1/1/3)#switchport port-security maximum 1
