6.2.7 Example for IPv6 zero-configuration
Networking requirements
As shown in Figure 6-6, the DHCP Server program is installed on a virtual machine and
bridged with the Network Interface Card (NIC) of the PC on which the TFTP Server program
is installed. Switch A is connected upstream to the TFTP server through GE 1/1/2 and
downstream to GE 1/1/1 on Switch B through its GE 1/1/1. Switch B is started without any
configurations. It can obtain an IPv6 global unicast address from the DHCP server through
zero-configuration when it has no IPv6 address. Then, it automatically downloads the
configuration file and system files from the TFTP server in the same network segment and
loads them. Table 6-2 lists planned data.

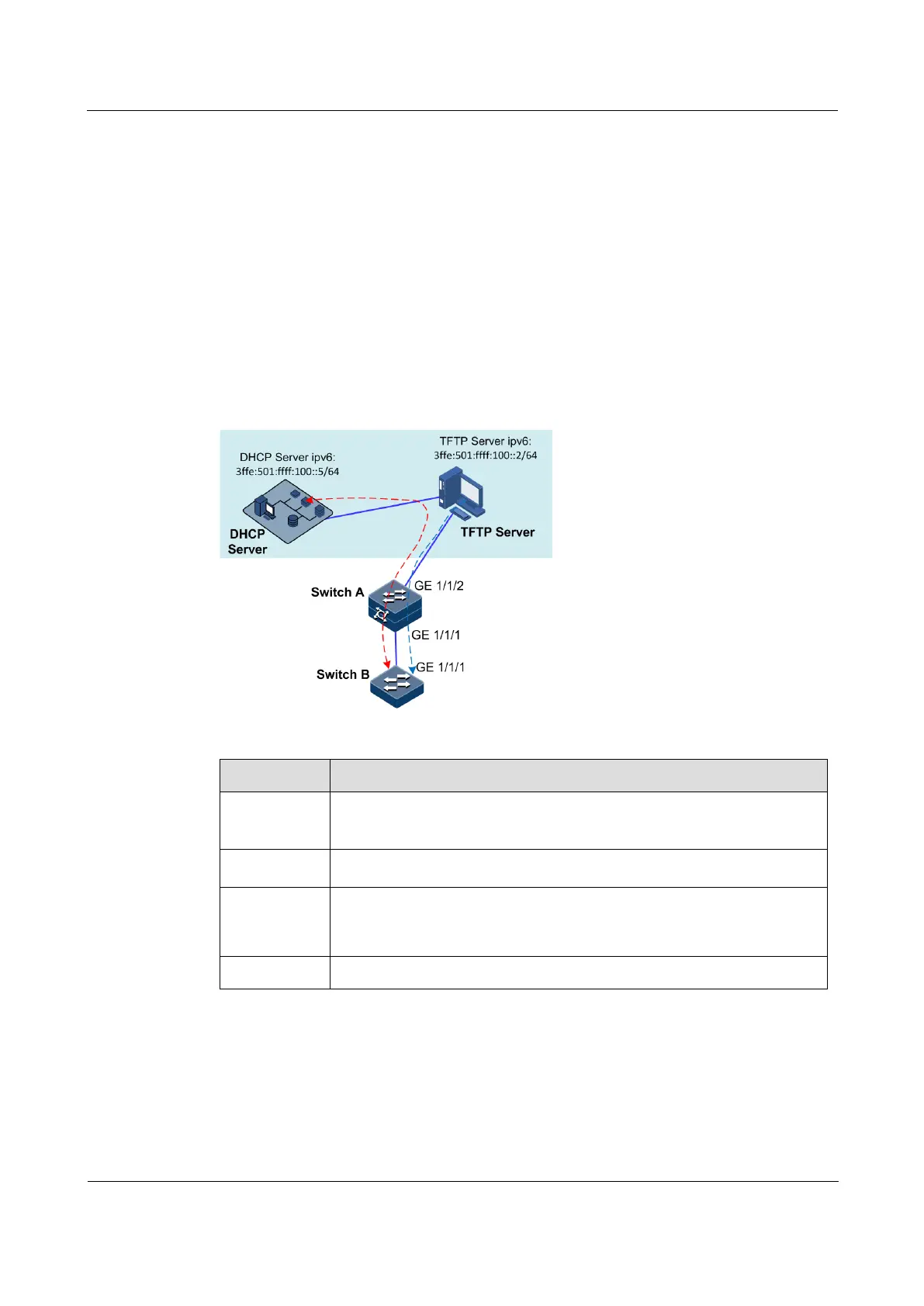

Figure 6-6 Zero-configuration networking
Table 6-2 Planned data
Device
Parameter
DHCP server

IPv6 address: 3ffe:501:ffff:100::5/64

IPv4 address: 172.16.125.201/24

DHCPv6 server pool: 3ffe:501:ffff:100::5/64 to 3ffe:501:ffff:100::102
TFTP server

IPv6 address: 3ffe:501:ffff:100::2/64

IPv4 address: 172.16.125.135/24
Switch A
Interface configurations:

GE 1/1/2: Access mode, accessing packets of VLAN 10

GE 1/1/1: Trunk mode, allowing packets of VLAN 10 to pass
Switch B
No configurations
Configuration principles

Establish a DHCPv6 server, configure the DHCPv6 address pool, and define Option 59
and Option 60.

Establish a TFTP server. Save the configuration file and system files to be issued to
Switch B on the TFTP server.
