2.6.12 Example for configuring STP
Networking requirements
As shown in Figure 2-14, Switch A, Switch B, and Switch C form a ring network, so the loop
must be eliminated in the situation of a physical link forming a ring. Enable STP on them,
configure the priority of Switch A to 0, and path cost from Switch B to Switch A to 10.

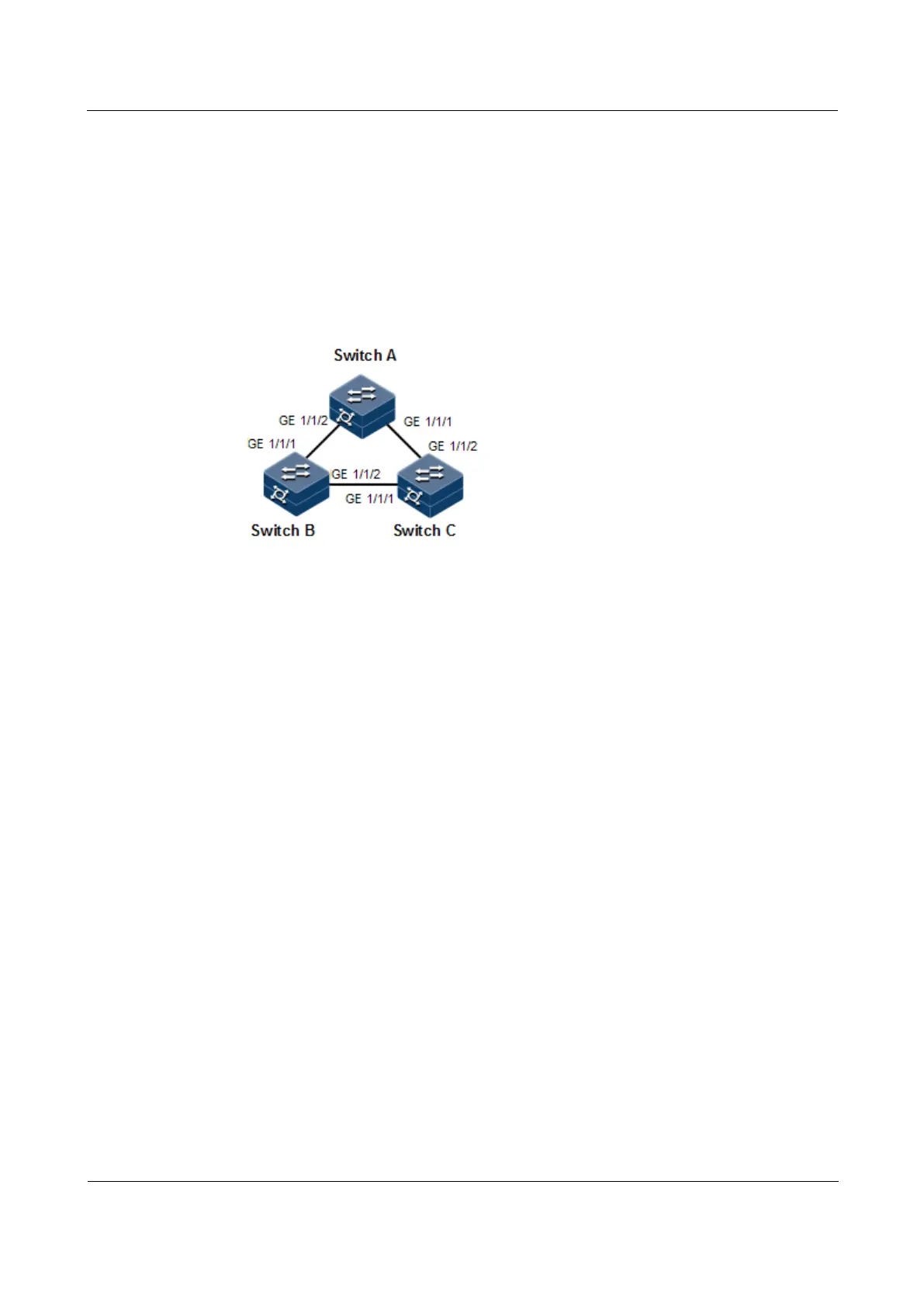

Figure 2-14 STP networking
Configuration steps
Step 1 Enable STP on Switch A, Switch B, and Switch C.
Configure Switch A.
Raisecom#hostname SwitchA
SwitchA#config
SwitchA(config)#spanning-tree enable
SwitchA(config)#spanning-tree mode stp
Configure Switch B.
Raisecom#hostname SwitchB
SwitchB#config
SwitchB(config)#spanning-tree enable
SwitchB(config)#spanning-tree mode stp
Configure Switch C.
Raisecom#hostname SwitchC
SwitchC#config
SwitchC(config)#spanning-tree enable
SwitchC(config)#spanning-tree mode stp
