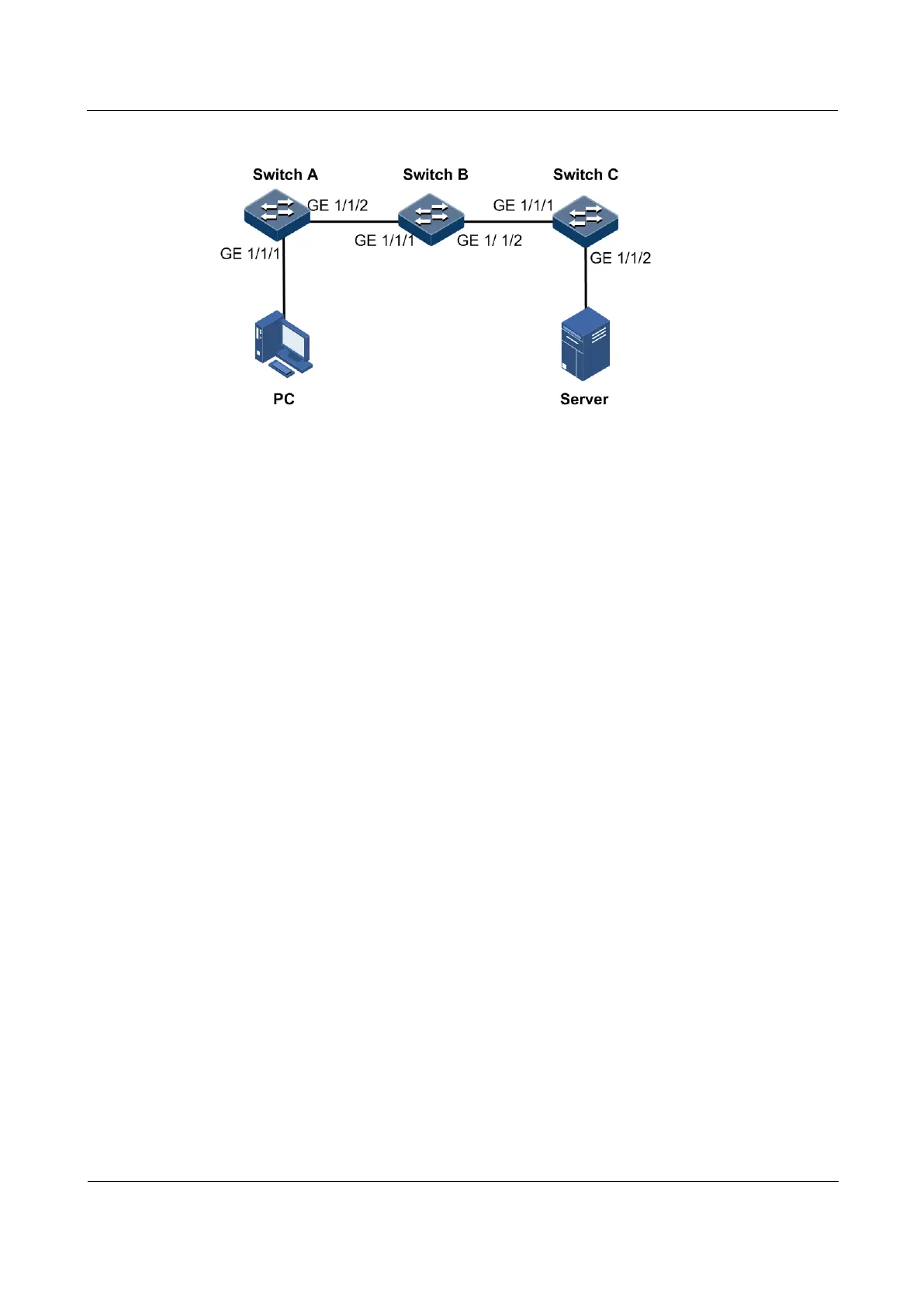

Figure 9-4 CFM networking
Configuration steps
Step 1 Add interfaces to the VLAN.
Configure Switch A.
Raisecom#hostname SwitchA
SwitchA#config
SwitchA(config)#create vlan 100 active
SwitchA(config)#interface gigaethernet 1/1/1
SwitchA(config-gigaethernet1/1/1)#switchport access vlan 100
SwitchA(config-gigaethernet1/1/1)#exit
SwitchA(config)#interface gigaethernet 1/1/2
SwitchA(config-gigaethernet1/1/2)#switchport mode trunk
SwitchA(config-gigaethernet1/1/2)#exit
Configure Switch B.
Raisecom#hostname SwitchB
SwitchB#config
SwitchB(config)#interface gigaethernet 1/1/1
SwitchB(config-gigaethernet1/1/1)#switchport mode trunk
SwitchB(config-gigaethernet1/1/1)#exit
SwitchB(config)#interface gigaethernet 1/1/2
SwitchB(config-gigaethernet1/1/2)#switchport mode trunk
SwitchB(config-gigaethernet1/1/2)#exit
Configure Switch C.
Raisecom#hostname SwitchC
SwitchC#config
SwitchC(config)#create vlan 100 active
SwitchC(config)#interface gigaethernet 1/1/2
