Raisecom#show mls qos queue interface gigaethernet 1/1/1
gigaethernet1/1/1
Queue Weight(WRR)
-------------------------
1
2 1
3 20
4 1
5 1
6 50
7 0
7.8.2 Example for configuring rate limiting based on traffic policy
Networking requirements
As show in Figure 7-10, User A, User B, and User C respectively belong to VLAN 1, VLAN
2, and VLAN 3, and are connected to the ISCOM2600G-HI series switch by Switch A, Switch
B, and Switch C.
User A uses voice and video services, User B uses voice, video and data services, and User C
uses video and data services.
According to service requirements, user needs to make rules as below.

Provide User A with 25 Mbit/s guaranteed bandwidth, permitting burst flow of 100
Kbytes and discarding excess flow.

Provide User B with 35 Mbit/s guaranteed bandwidth, permitting burst flow of 100
Kbytes and discarding excess flow.

Provide User C with 30 Mbit/s guaranteed bandwidth, permitting burst flow of 100
Kbytes and discarding excess flow.

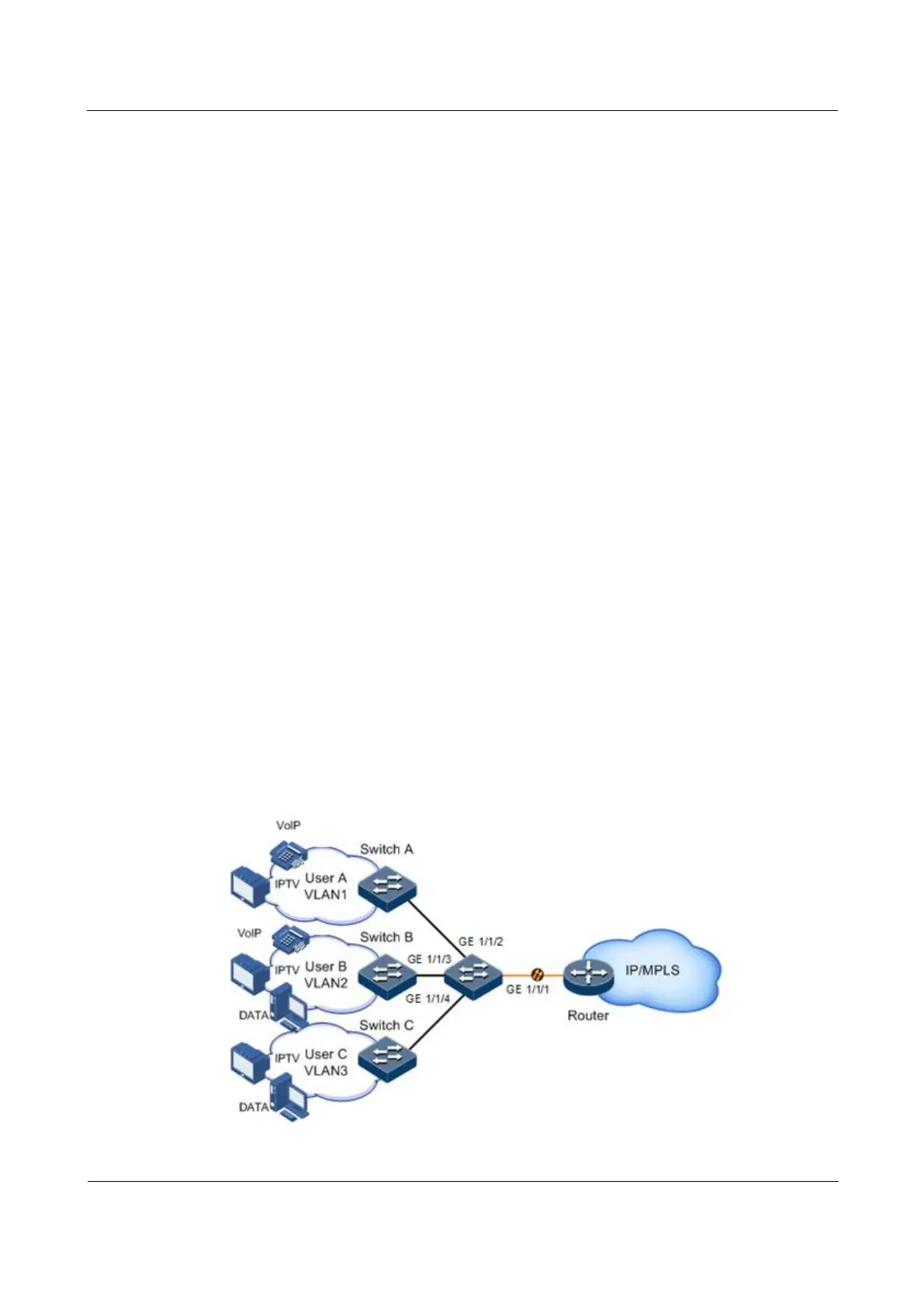

Figure 7-10 Rate limiting based on traffic policy
