2.14.7 Example for configuring GVRP
Networking requirements
As shown in Figure 2-31, to dynamically register, deregister, and update VLAN information
between switches, configure GVRP on these switches. Detailed requirements are as below:

Configure static VLANs 5–10 on Switch A and Switch C.

Configure static VLANs 15–20 on Switch D.

Configure static VLANs 25–30 on Switch E.

Configure the interfaces that are connected to other switches to Trunk mode, and enable
GVRP on these interfaces.

Configure the Join timer, Leave timer, and LeaveAll timer of GARP on each interface to
600, 3000, and 12000, in units of 10ms.

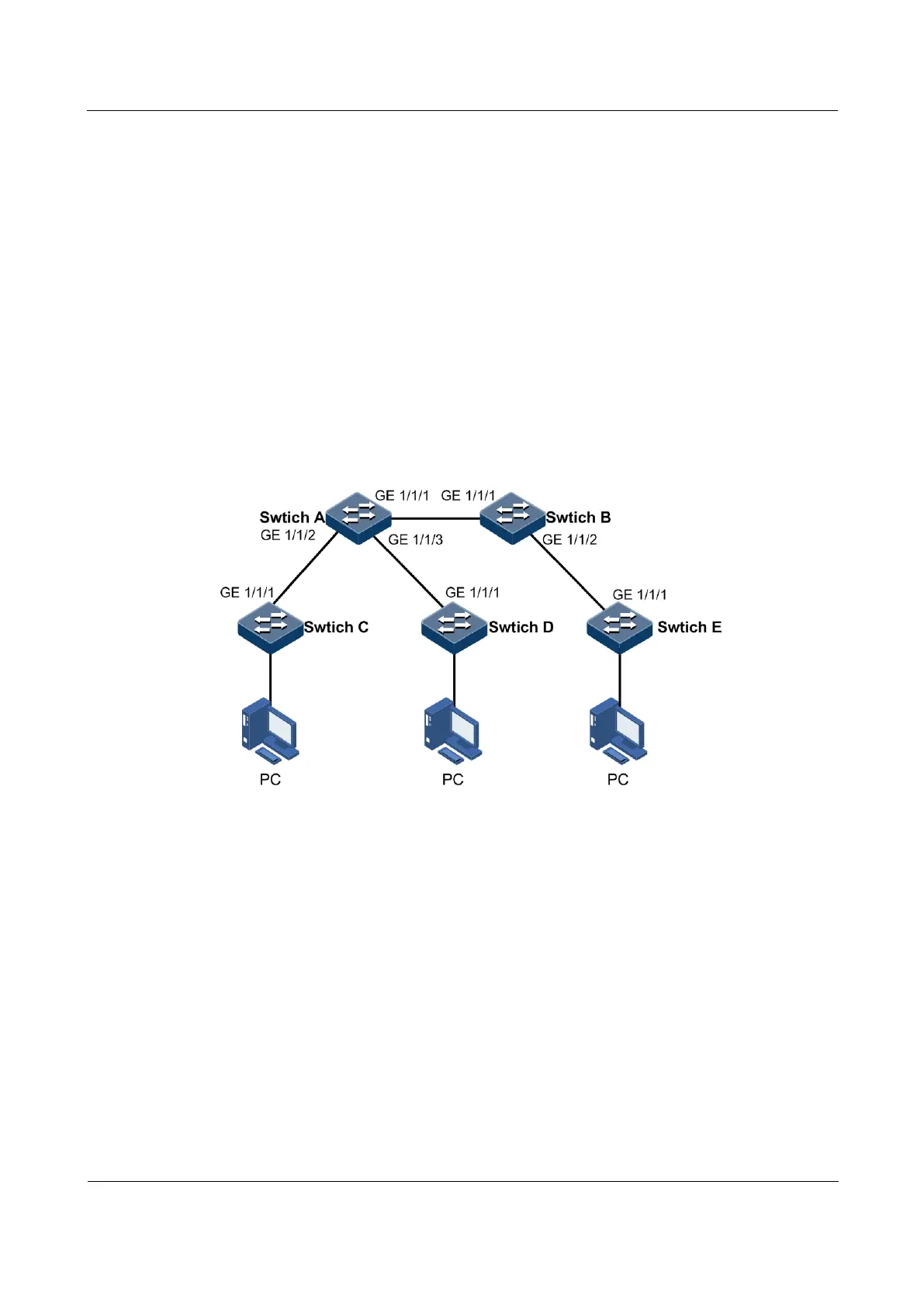

Figure 2-31 GVRP networking
Configuration steps
Step 1 Create VLANs and enable global GVRP.
Configure Switch A.
Raisecom#hostname SwitchA
SwitchA#config
SwitchA(config)#create vlan 5-10 active
SwitchA(config)#gvrp enable
Configure Switch B.
Raisecom#hostname SwitchB
SwitchB#config
