Other interfaces allow ARP packets complying with dynamic binding learnt by DHCP
Snooping to pass.

Configure rate limiting on ARP packets on downlink GE 1/1/2. The rate threshold is
configured to 20 pps and recovery time for rate limiting is configured to 15s.

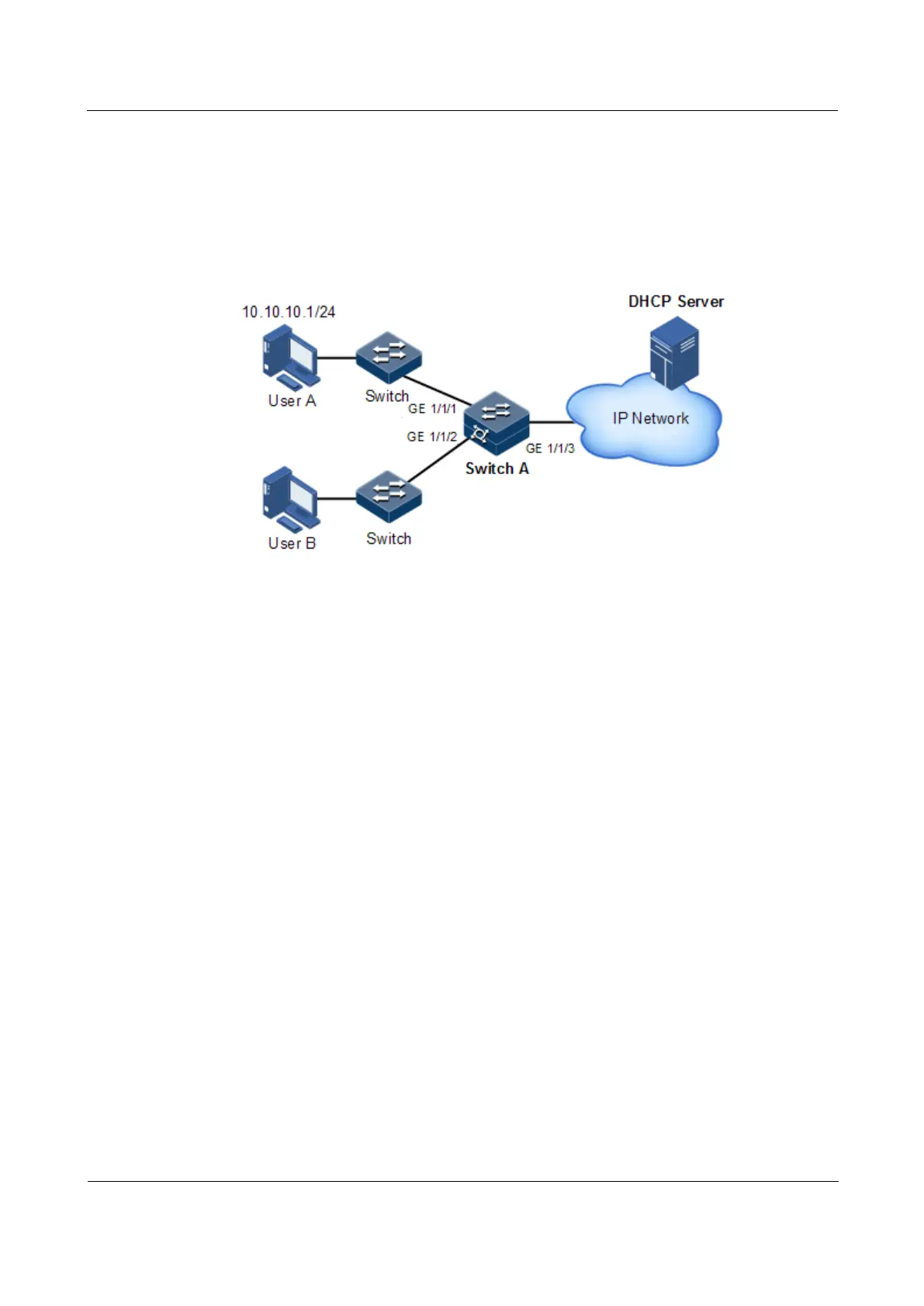

Figure 10-3 Configuring dynamic ARP inspection
Configuration steps
Step 1 Configure GE 1/1/3 as the trusted interface.
Raisecom#config
Raisecom(config)#interface gigaethernet 1/1/3
Raisecom(config-gigaethernet1/1/3)#ip arp-inspection trust
Raisecom(config-gigaethernet1/1/3)#exit
Step 2 Configure static binding.
Raisecom(config)#ip arp-inspection static-config
Raisecom(config)#ip arp-inspection binding 10.10.10.1 gigaethernet 1/1/1
Step 3 Enable dynamic ARP inspection binding.
Raisecom(config)#ip dhcp snooping
Raisecom(config)#ip arp-inspection dhcp-snooping
Step 4 Configure rate limiting on ARP packets on the interface.
