18 Operations Water Management functionality

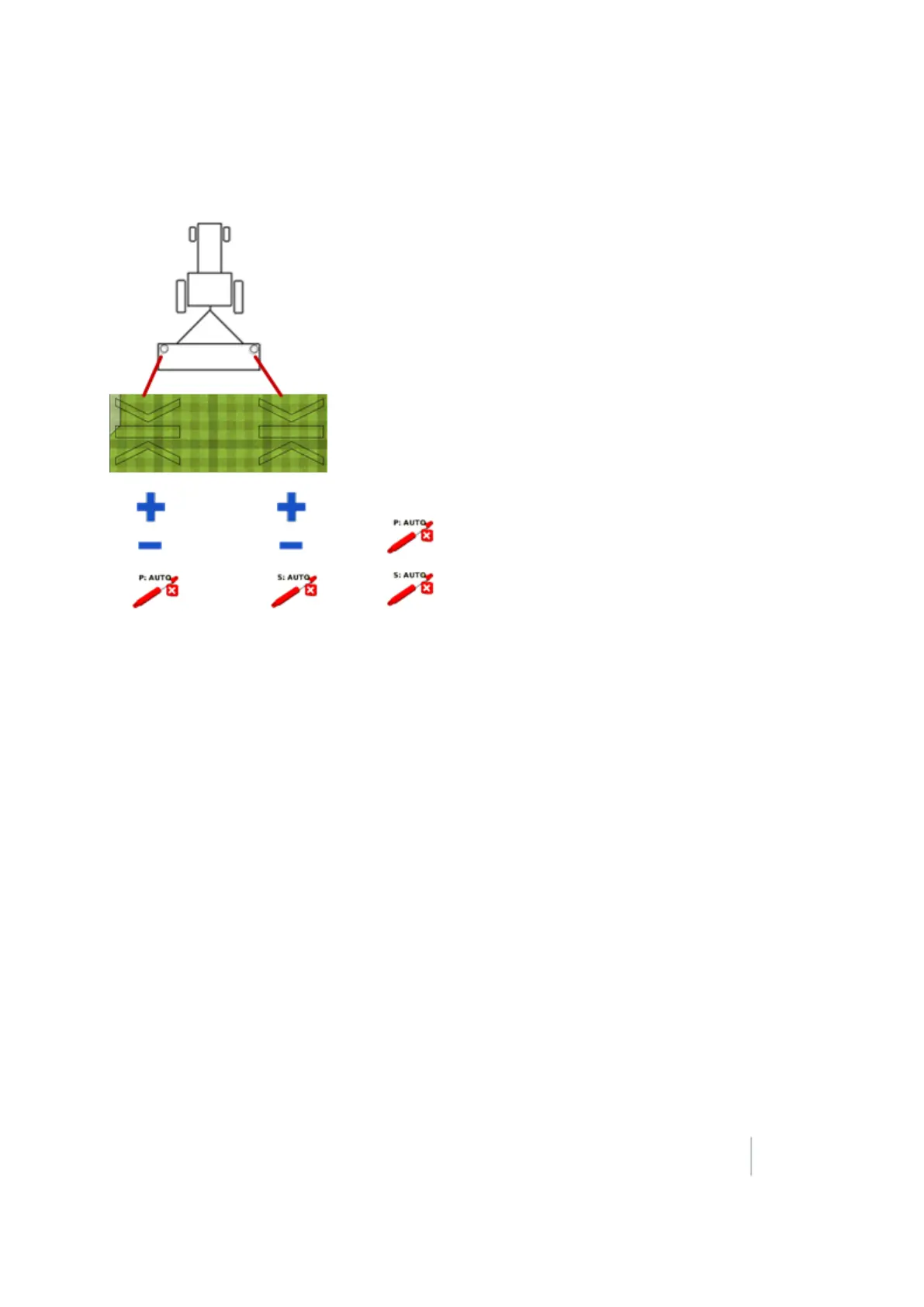

Dual scraper controls
Blade height indicators:
l The left height indicator shows the height of the
left/primary blade.
l The right height indicator shows the height of the
right/secondary blade.
Left plus and minus:Controls the blade height for the
left/primary blade.
Right plus and minus:Controls the blade height for the
right/secondary blade.
: Controls the left/primary automatics
:Controls the right/secondary automatics
Version 9.25, Revision B FM-1000 Integrated Display User Guide 449
