Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Wiring Data
Launch Issue

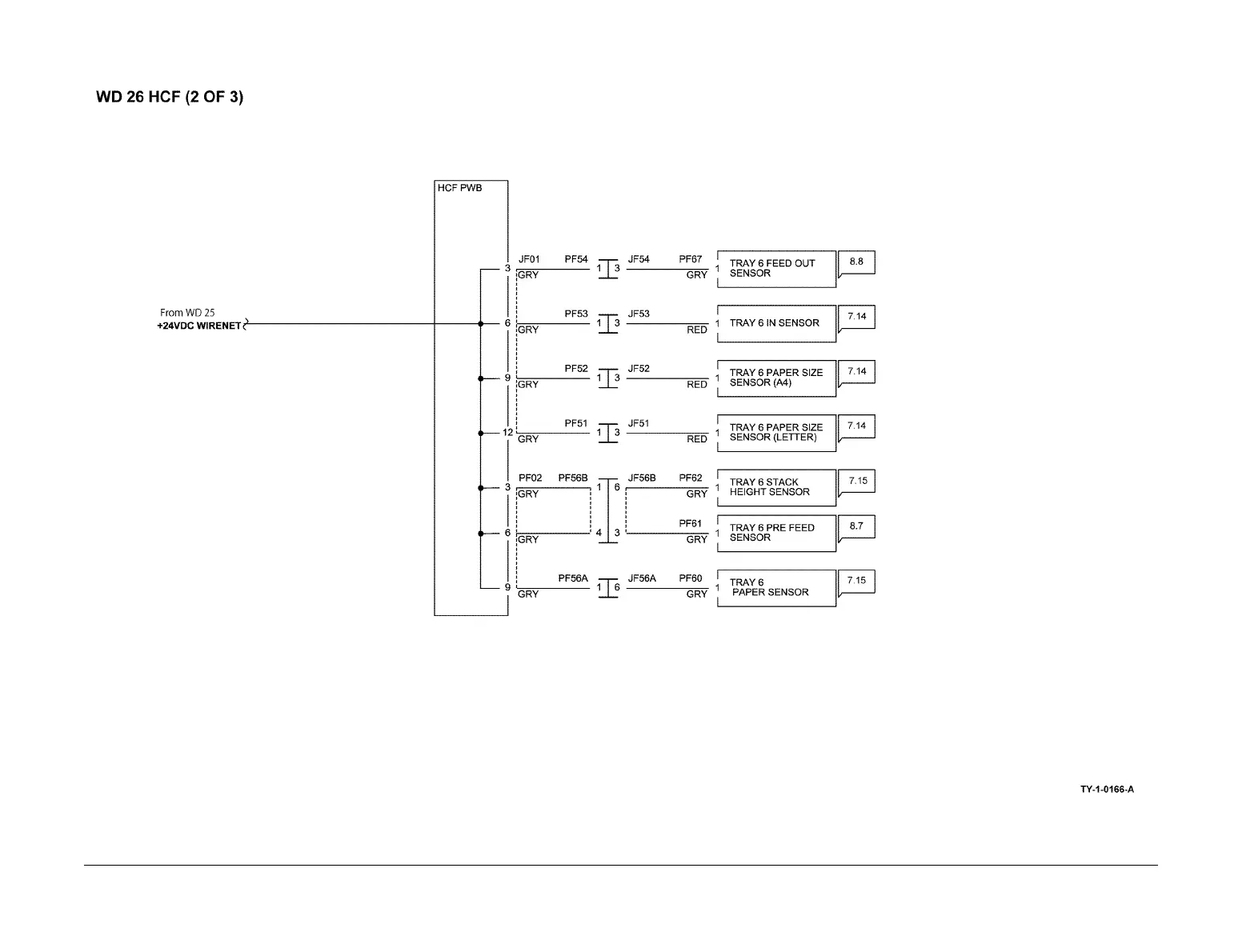

Wiring Diagram 26 HCF +5VDC
Figure 26 Wiring diagram 26
