April 2017
7-147
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

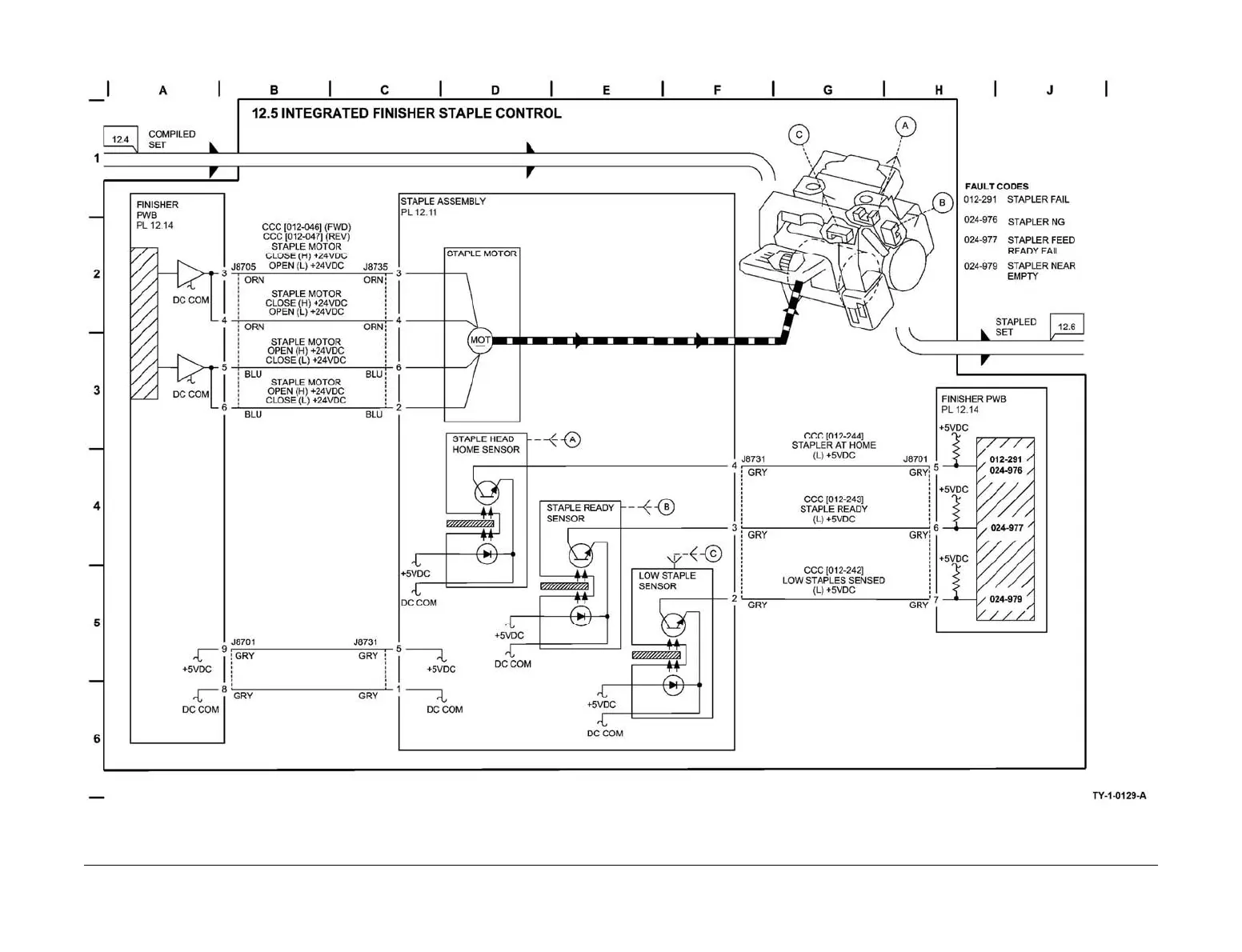

BSD 12.5 Integrated Office Finisher Staple Control
Figure 91 BSD 12.5
