April 2017
7-148
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

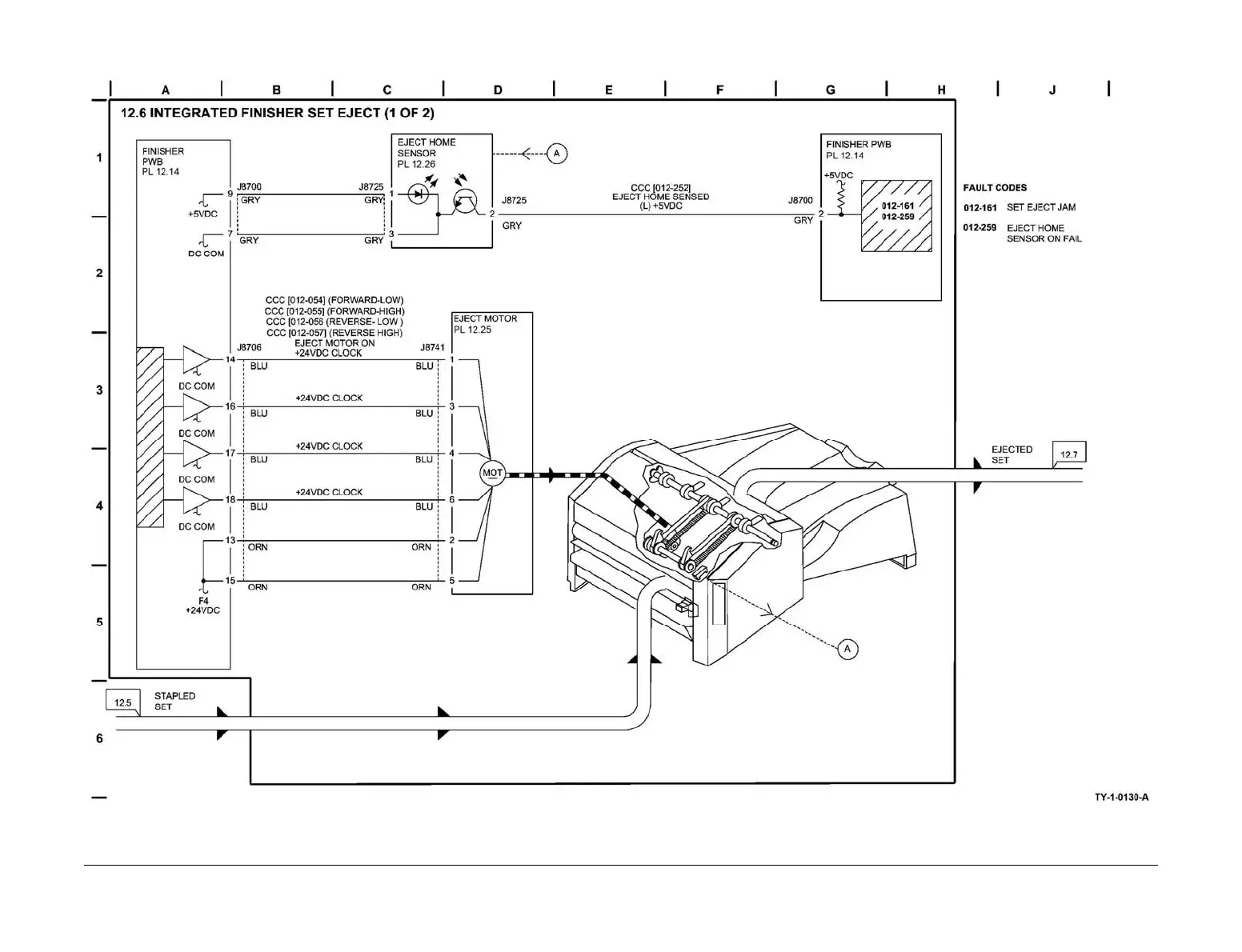

BSD 12.6 Integrated Office Finisher Set Eject (1 of 2)
Figure 92 BSD 12.6
