April 2017
7-149
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

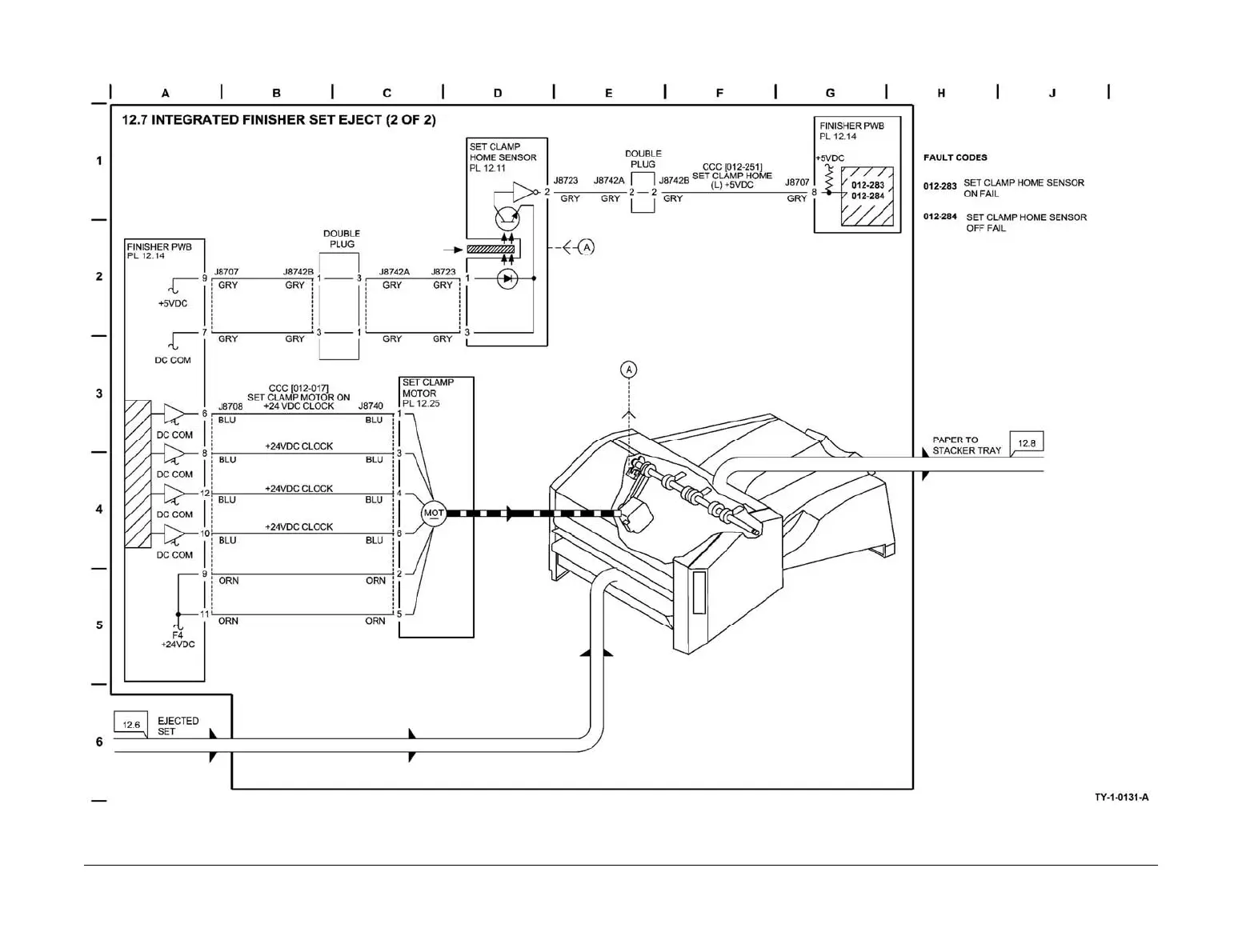

BSD 12.7 Integrated Office Finisher Set Eject (2 of 2)
Figure 93 BSD 12.7
