April 2017
7-150
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

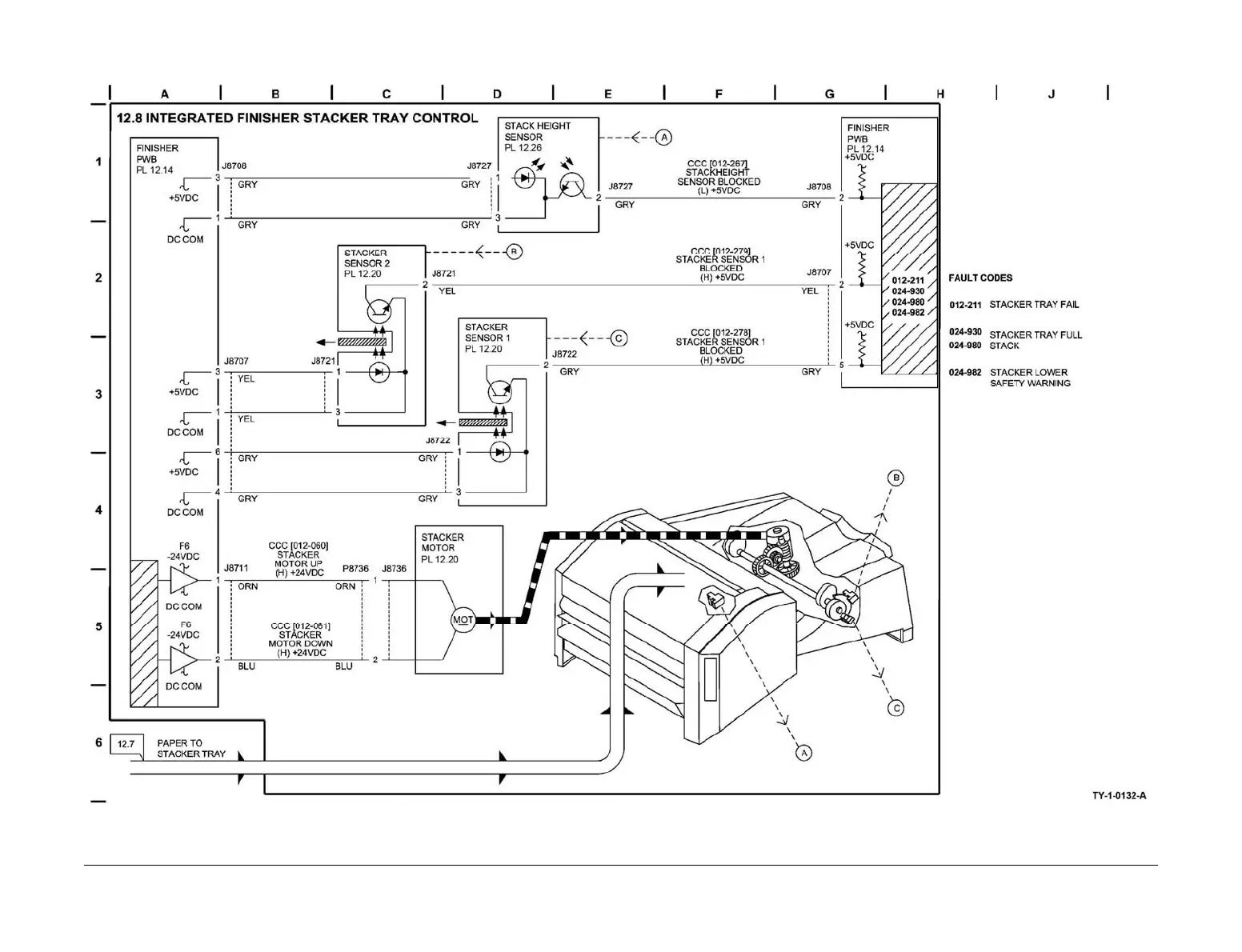

BSD 12.8 Integrated Office Finisher Stacker Tray Control
Figure 94 BSD 12.8
