April 2017
7-165
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue
BSD 13.15 Office Finisher LX Stacker Tray Control

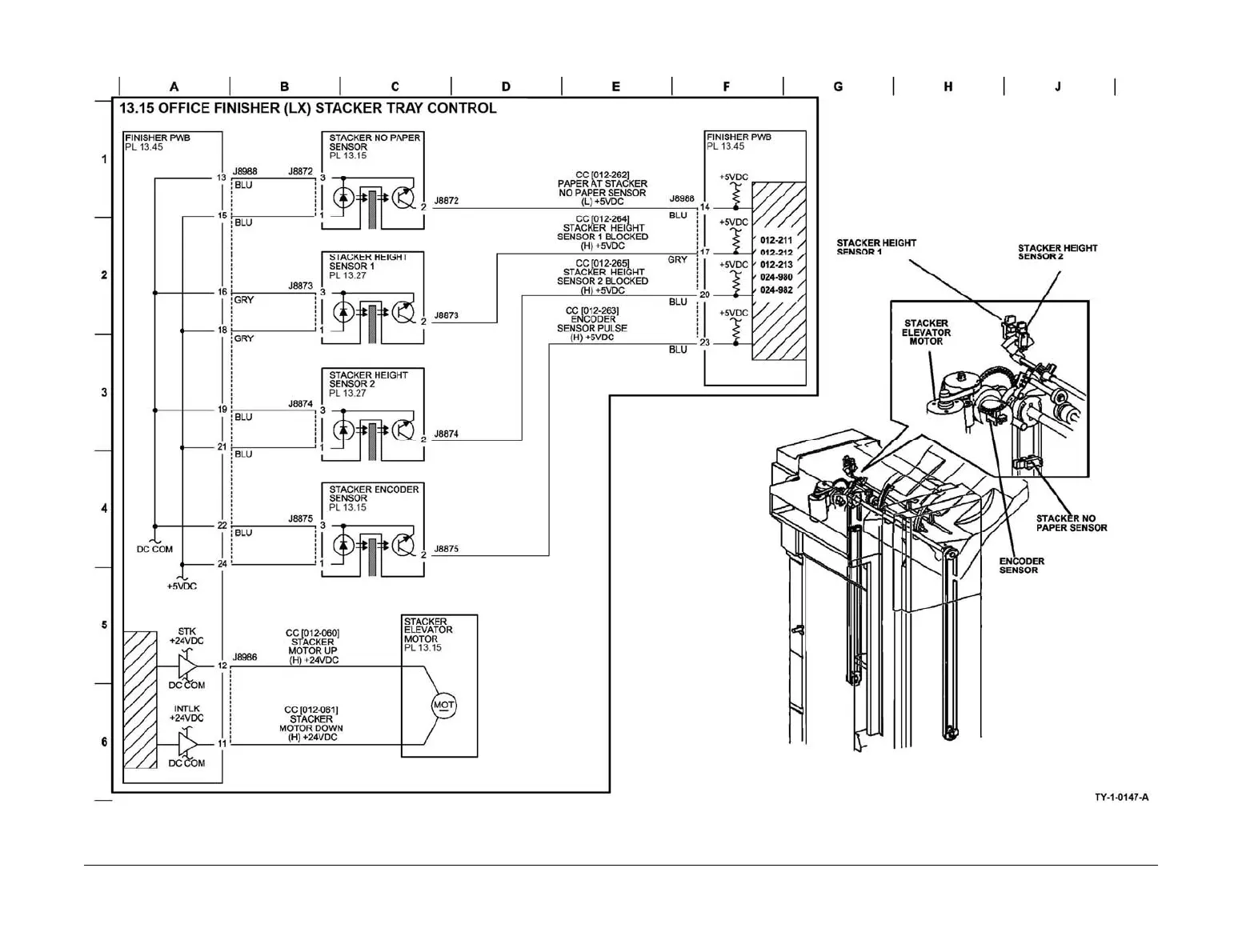

Figure 109 BSD 13.15
