April 2017
7-166
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

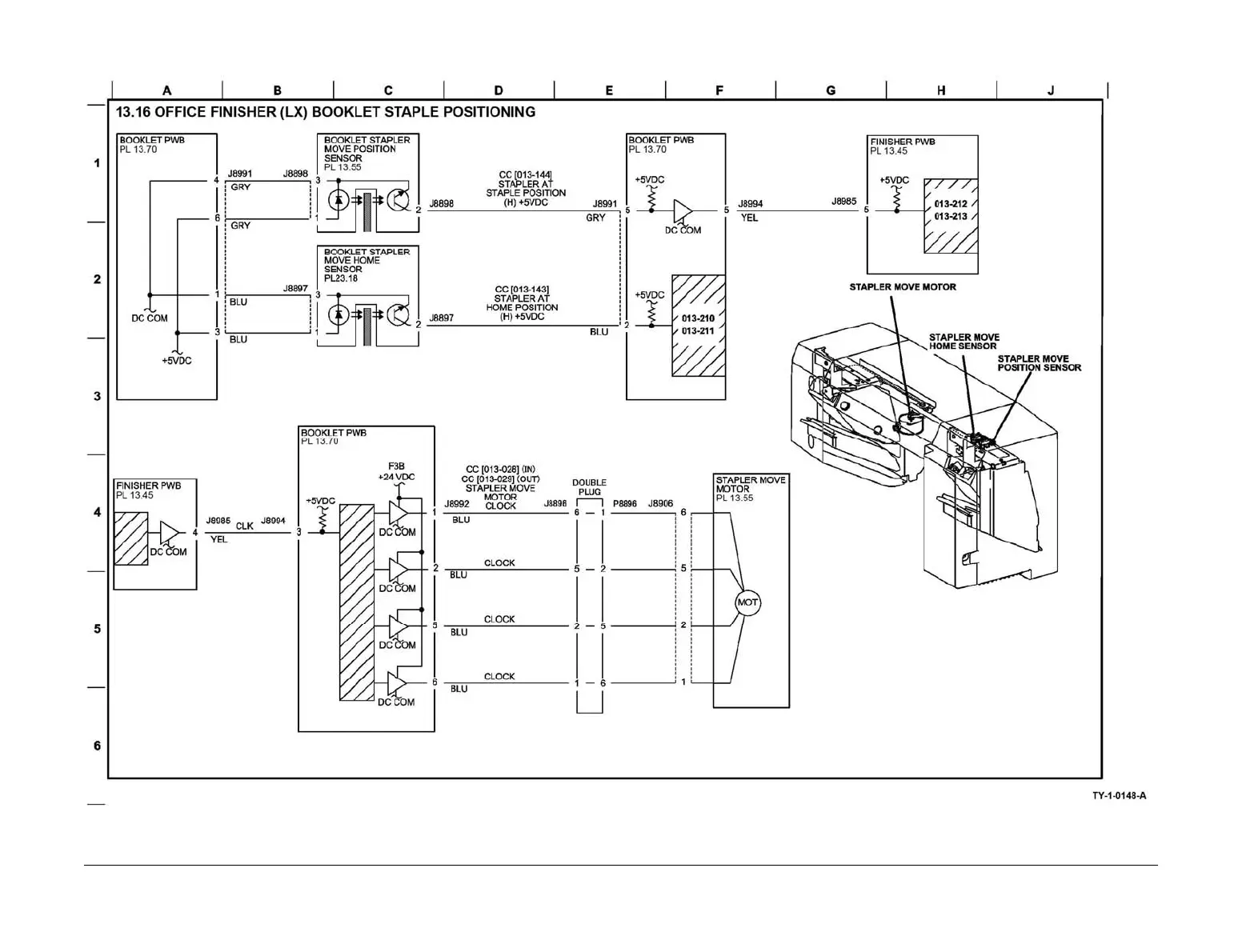

BSD 13.16 Office Finisher LX Booklet Staple Positioning
Figure 110 BSD 13.16
