April 2017
7-167
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

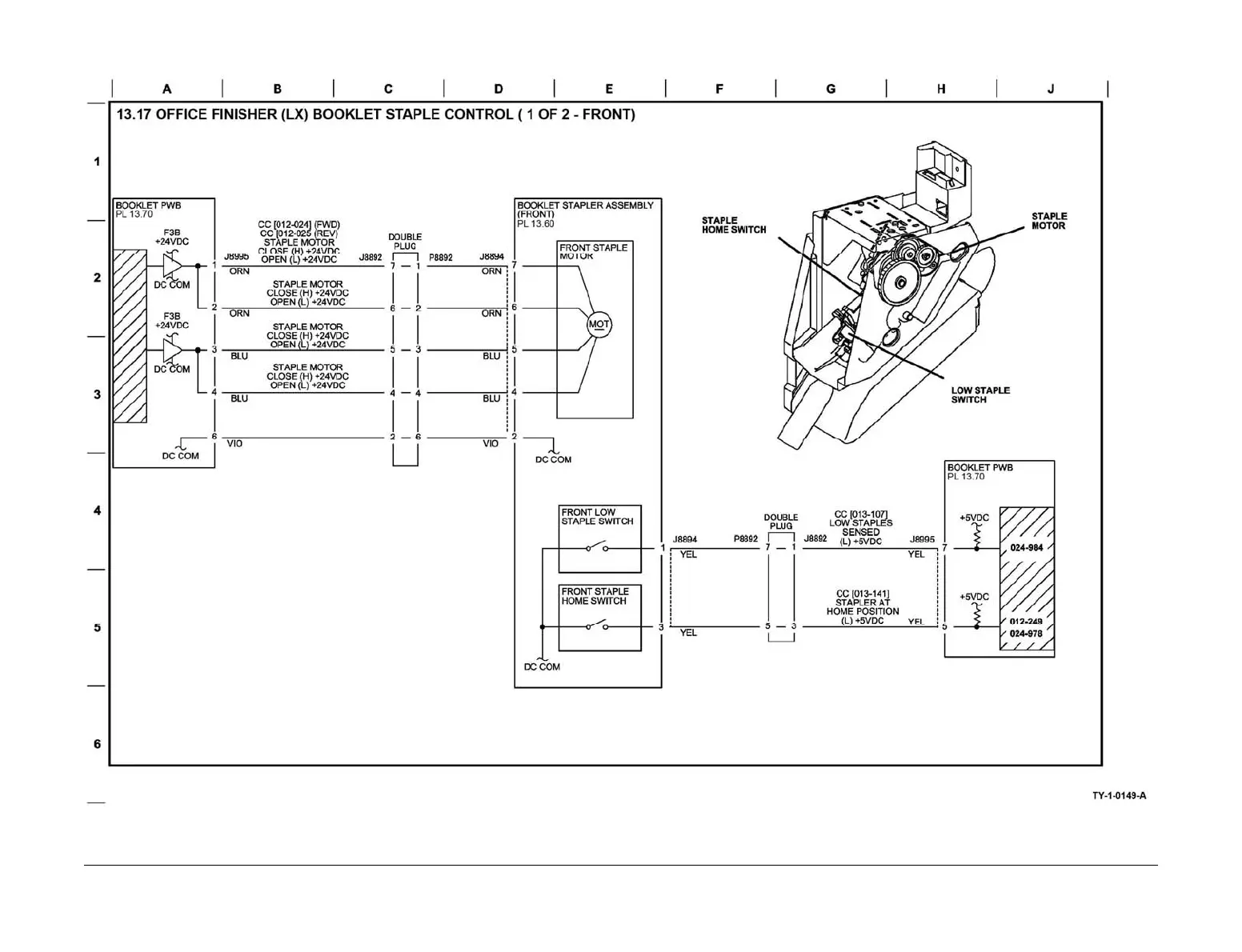

BSD 13.17 Office Finisher LX Booklet Staple Control (1 of 2 - Front)
Figure 111 BSD 13.17
