Xerox VersaLink B7030 Service Manual

April 2017
8-15
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Document Set Sensing
When a document is placed in the document tray, it activates the document sensor, PL 5.30
Item 7.
The CVT feeder cover sensor detects that the upper feeder assembly, PL 5.10 Item 10, is
closed. Refer to Figure 3.

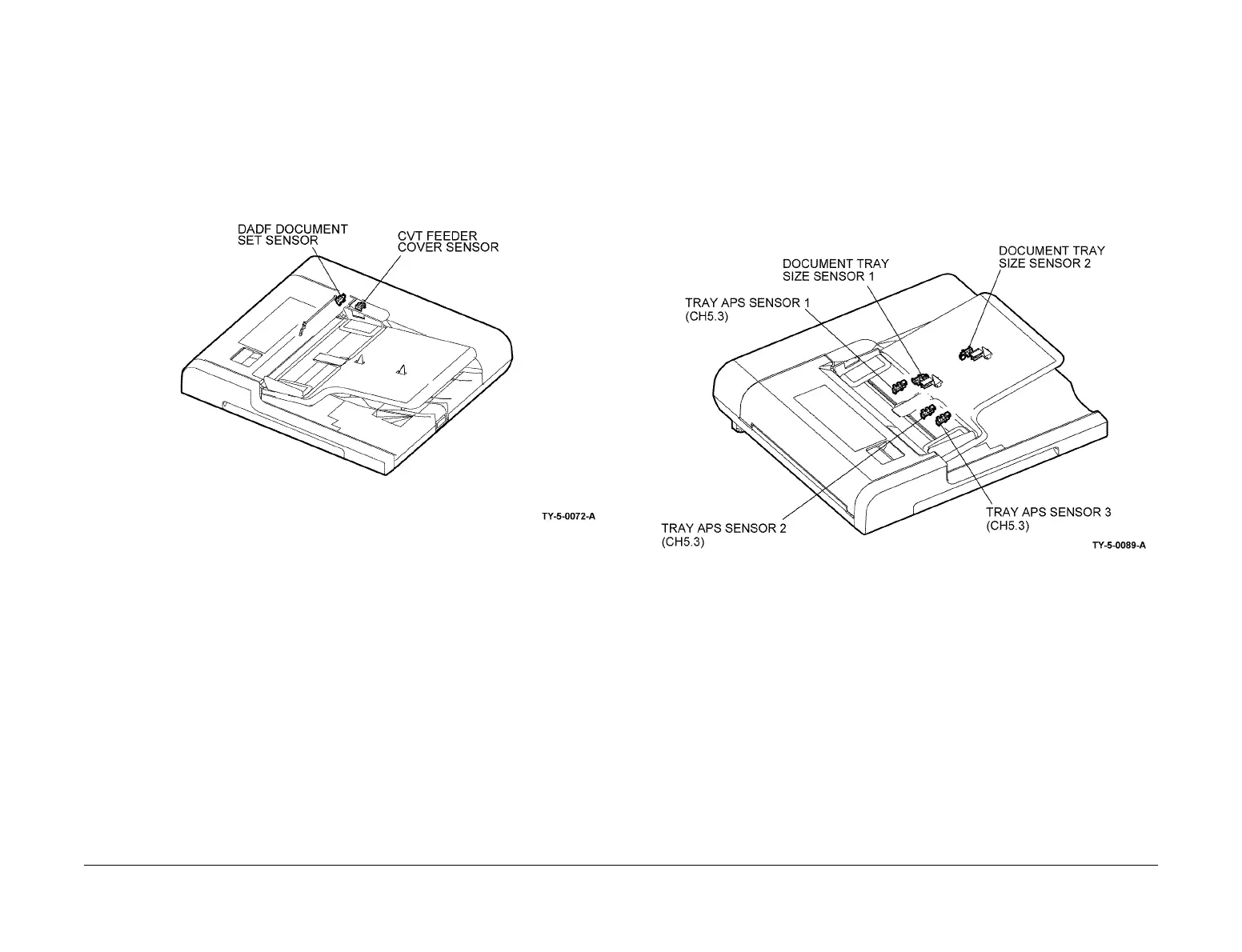

Figure 3 Document set sensor
Tray APS Sensors and Size Sensors
The document guides move a rack and gear that actuates 3 sensors (tray APS sensors 1, 2
and 3) within the DADF tray assembly. Together these sensors detect the document width (in
the cross process direction). The length of the document (in the process direction) is deter
-
mined by the on or off states of DADF tray size sensor 1 and 2. Refer to PL 5.55.
NOTE: The tray APS sensors should not be confused with the APS sensors in the paper path.
Refer to APS Sensors.
When a document stack of different sizes is set, the document size is detected according to the
combination of the maximum width and length of the documents.
Figure 4 Tray APS sensors and size sensors

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
